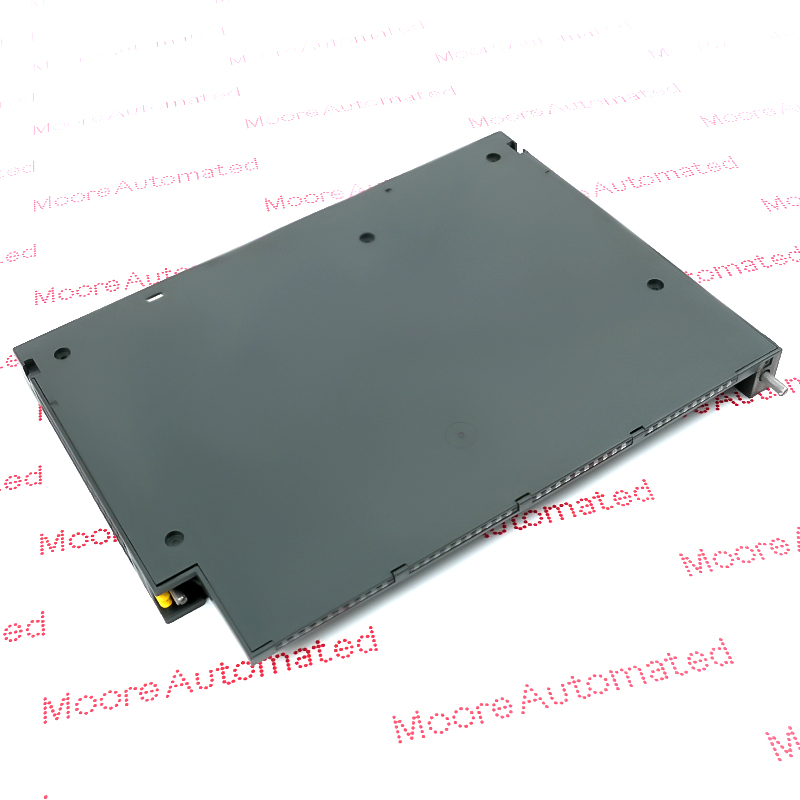

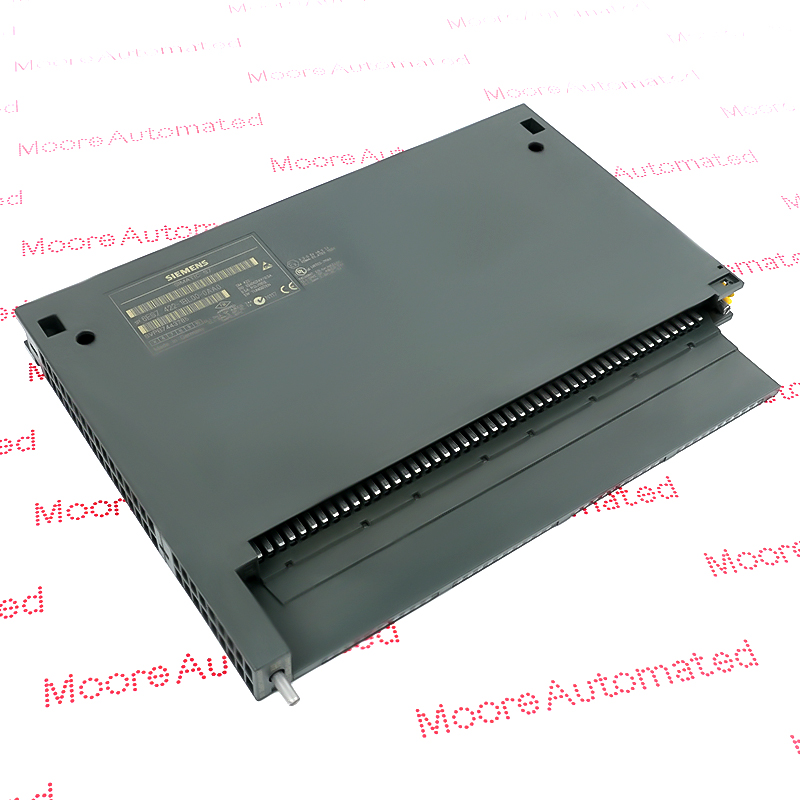

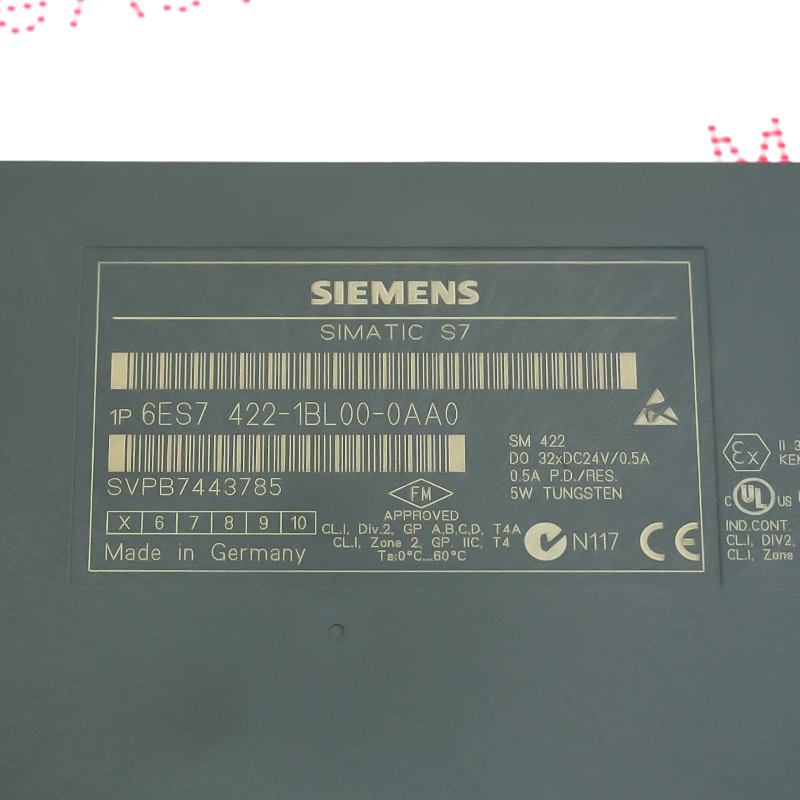

Siemens 6ES7422-1BL00-0AA0 is a SIMATIC S7-400 SM 422 isolated digital output module with 32 channels rated for 24 V DC loads up to 0.5 A per channel.
The module switches field actuators from the S7-400 backplane and uses grouped load-voltage connections. Observe the official current, short-circuit, inductive-load and group-loading limits when wiring outputs.
The product is in Siemens phase-out status. Verify rack, connector, load supply, fuse strategy and STEP 7 configuration before replacing an installed module.
The Siemens 6ES7422-1BL00-0AA0 may be supplied and supported by Moore Automated according to the official product lifecycle: Active/Available from OEM.
Siemens 6ES7422-1BL00-0AA0 SIMATIC S7-400 SM 422 digital output module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, licenses and related items are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Technical details:
- Rated value (DC): 24 V
- Input current from load voltage L+ (without load) max: 30 mA
- Power loss: 4 W
- Number of digital outputs: 32
- Load resistance range lower limit: 48 Ω
- Cable length shielded max: 1000 m
SM 422 switches thirty-two 24 V DC loads from an S7-400 rack. Correct operation depends on grouped load-supply wiring, per-channel and group current limits, protection for inductive loads and matching STEP 7 parameters; isolate field power before connector work.
Compatibility: It requires a compatible SIMATIC S7-400 rack, correct front connector and 24 V DC field load supply within the module current limits.
Configuration: Remove rack and field power, verify group supply polarity and load current, apply suitable suppression for inductive loads and test channels after configuration.
Application: It drives relays, solenoids, indicators and other 24 V DC actuators in S7-400 control systems.
Lifecycle: Siemens lists 6ES7422-1BL00-0AA0 in phase-out status; confirm ordering and migration strategy.
SM 422 switches thirty-two 24 V DC loads from an S7-400 rack. Correct operation depends on grouped load-supply wiring, per-channel and group current limits, protection for inductive loads and matching STEP 7 parameters; isolate field power before connector work.
