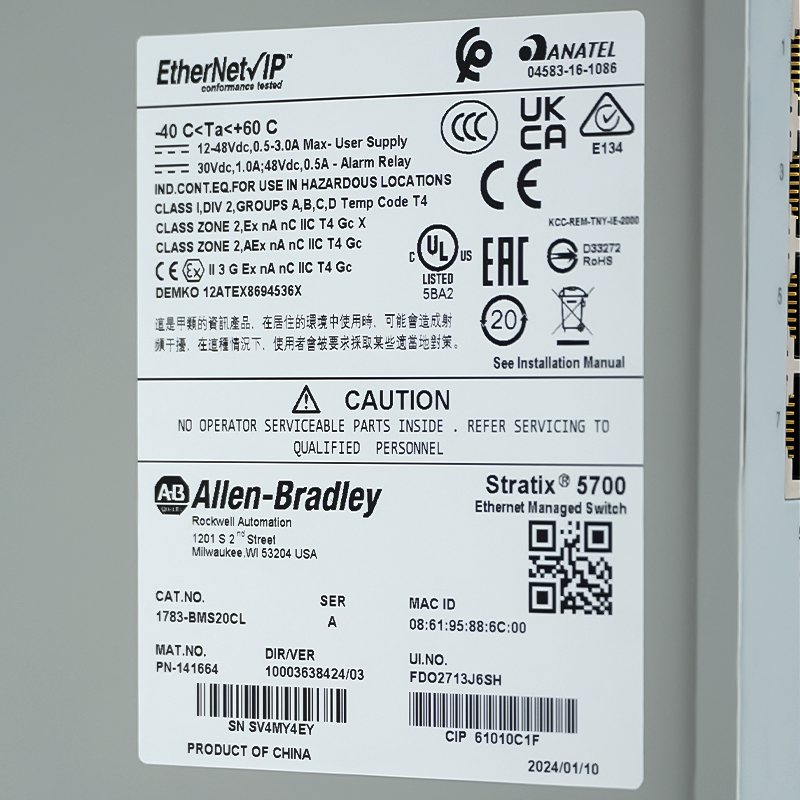

      Allen-Bradley 1783-BMS20CL
      Allen-Bradley 1783-BMS20CL
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      1783-BMS20CL

      Stratix 5700 20 Port Managed Switch
      In Stock
      Ships by Friday, August 7
      Fast Shipping Available

      Product Information:

      1783-BMS20CL is an Allen-Bradley Stratix 5700 series Layer 2 managed Ethernet switch by Rockwell Automation, model number 1783-BMS20CL. Officially discontinued, its recommended next-generation replacement is the 1783-CMS20DB from the Stratix 5200 family.

      Existing inventory remains highly valuable for emergency plug-and-play replacements in legacy operational systems.In terms of hardware, the device features 20 physical ports, including 16 10/100 Base-T copper RJ45 ports, 2 Fast Ethernet combo ports, and 2 100 Base-X SFP fiber-optic slots for local connectivity and long-distance uplinks. Running on the Lite software feature set, it natively supports the Device Level Ring (DLR) redundancy protocol for millisecond-level network self-healing.

      It also integrates into Studio 5000, allowing PLCs to directly access real-time diagnostics and alarms via predefined Logix tags without additional programming.Regarding physical specifications, the 1783-BMS20CL supports a 12...48V DC dual redundant power input (24V nominal) with a maximum power consumption of 30W. Built with a fanless passive cooling design for standard 35mm DIN rail vertical mounting, it operates reliably from -40°C to 60°C (-40°F to 140°F), offering high immunity to extreme industrial environments.

      Warranty Policy
      We provide 1-year warranty for all remaining parts.
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shipping Methods
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore Automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 1783-BMS20CL

      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC System
      • Estimated shipping dimensions:
        12.7 x 12.95 x 13.58 cm
      • Weight:
        2.04 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Number of ports 10/100 Mbps RJ45:
        16 ports
      • Number of combination-ports RJ45/Mini GBIC:
        2 combination-ports
      • Power consumption, maximum:
        30 W
      • Power dissipation:
        30 W
      • Isolation voltage (continuous), basic insulation type, DC power ports to ground, DC power ports to ethernet ports, and DC power ports to alarm ports:
        50 V
      • Number of combination ports 10/100 Mbps:
        2 ports
      • Number of ports 10/100 Mbps SFP:
        2 ports
      • Power consumption at 24V DC, 40 ˚C:
        21 W
      • Mounting method:
        DIN rail (top hat rail)
      • Alarm relay at 30V DC:
        1 A
      • Alarm relay at 48V DC:
        0.5 A
      • Operating temperature:
        -40...60 °C (-40...140 °F)
      • Firmware type:
        Lite
      • DC input voltage rating:
        24V DC (12...48V DC)
      • Network:
        Ethernet
      • Housing base material:
        Open-style
      • Network redundancy:
        Device Level Ring (DLR)
      • Degree of protection (IP):
        IP30
      • Stock:
        1
      Ask for Quote

      Alternative Names

      1783-BMS2OCL 1783BMS20CL 1783 BMS20CL I783-BMS20CL I783-BMS2OCL 1783-BMS20CA 1783-BMS20CGL 1783-BMS20CGP 1783-BMS20CGN 1783-BMS20CGPK 1783-BMS10CL 1783-BMS10CA 1783-BMS10CGL 1783-BMS10CGA

      Information

      Overview Manuals How It Works Compatible SFP Transceiver Modules

      Features:

      • 20 Fast Ethernet Ports: Features 16 copper RJ45 ports, 2 combo ports, and 2 SFP fiber slots, all operating strictly at 10/100 Mbps
      • DLR Redundancy: Natively supports Device Level Ring topology for millisecond-level network fault recovery
      • Premier Logix Integration: Uses predefined Logix tags for plug-and-play switch diagnostics directly in Studio 5000
      This Ethernet switch supports the Common Industrial Protocol for Ethernet (CIP). CIP is an industry protocol supported by the Open Equipment Vendors Association (ODVA) for communicating with Logix controllers, exchanging data, and interacting with visualization systems. This managed Ethernet switch offers 20 ports, including 16 Fast Ethernet copper (FE) ports supporting 10/100 Mbps, 2 Gigabit Ethernet composite ports supporting 1 Gbps, and 2 Small Form Factor (SNP) slots for Fibre and Gigabit Ethernet.

      The 1783-BMS20CL features an open enclosure. It requires installation in an enclosure that protects against field contaminants, dust, moisture, and water. The module operates over a temperature range of -40 to +60 degrees Celsius (-40 to +140 degrees Fahrenheit) and is suitable for ambient temperatures up to 60 degrees Celsius (140 degrees Fahrenheit). This Ethernet switch requires no backplane for installation. It is a standalone device powered by an external power source, capable of providing a maximum current of 0.5…3.0 A within a voltage range of 12-48VDC, and conforms to Class 2/Safety Extra Low Voltage (SELV) standards.

      The 1783-BMS20CL Allen Bradley Stratix 5700 20 Port Managed Switch may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Allen Bradley 1783-BMS20CL Stratix 5700 20 Port Managed Switch Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The 1783-BMS20CL manages and routes local data traffic on the factory floor by connecting automation devices like PLCs, HMIs, and drives through its 20 Fast Ethernet ports.
      It uses a specialized "Lite" firmware to monitor network health and traffic, while automatically utilizing Device Level Ring (DLR) technology to instantly reroute data along a backup path if a cable gets damaged.
      Additionally, it continuously translates its internal diagnostic data into predefined Logix tags, allowing a connected PLC to monitor port status and network alarms in real time without any custom programming.
      The 1783-BMS20CL features 2 SFP slots that support 100 Mbps fiber optic plugins. The official compatible Allen-Bradley part numbers are:
      1783-SFP100FX: Multi-mode fiber transceiver module (100 Mbps, LC connector)
      1783-SFP100LX: Single-mode fiber transceiver module (100 Mbps, LC connector)

      Manuals

      Technical notes

      The 1783-BMS20CL industrial switch was officially discontinued on September 01, 2024, with the newer Stratix 5200 series model 1783-CMS20DB recommended as its direct engineering upgrade. This 20-port device features a full Fast Ethernet architecture where all interfaces, including the sixteen copper RJ45 ports, two combo ports, and two SFP slots, are strictly limited to a maximum speed of 10/100 Mbps. Operating on the Lite firmware feature set, the switch does not support advanced Layer 3 routing, network address translation (NAT), or access control lists (ACL). However, it retains seamless integration within the Rockwell Automation ecosystem, providing predefined Logix tags for direct Studio 5000 PLC diagnostics and native Device Level Ring (DLR) support for millisecond-level network redundancy. For reliable physical deployment, its fanless IP30 open-style enclosure operates from -40°C to 60°C and requires a minimum of 51 mm clearance at both the top and bottom for proper ventilation.

      • Product Lifecycle Stage

        Obsolete/Discontinued by OEM

        On September 1, 2024, Rockwell Automation officially changed the lifecycle status of the 1783-BMS20CL to "Discontinued". This means that the factory has completely stopped assembly line production of this model, and all new system designs or maintenance replacements have been transitioned to the officially recommended next-generation Stratix 5200 series replacement model 1783-CMS20DB.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What is the current official lifecycle status of the 1783-BMS20CL, and what is its recommended replacement?
        The 1783-BMS20CL was officially discontinued by Rockwell Automation on September 01, 2024. The manufacturer officially recommends the 1783-CMS20DB from the newer Stratix 5200 family as its direct engineering replacement.
      • Do the combo ports and SFP slots on the 1783-BMS20CL support Gigabit Ethernet data rates?
        No. The 1783-BMS20CL is a full Fast Ethernet architecture device. Its 2 combo ports and 2 SFP slots are strictly limited to a maximum speed of 10/100 Mbps.
      • Does the “Lite” firmware type on the 1783-BMS20CL affect its direct PLC diagnostics functionality in Studio 5000?
        No, it does not. Although the 1783-BMS20CL features the Lite firmware type, it still maintains premium integration within the Logix ecosystem. The PLC can access real-time status diagnostics and port alarms directly using predefined Logix tags without needing custom communication code.
      • Does the 1783-BMS20CL industrial switch natively support Device Level Ring (DLR) network redundancy?
        Yes. The 1783-BMS20CL deeply supports the Device Level Ring (DLR) protocol. This feature allows for millisecond-level network self-healing in the event of a single link failure, preventing unplanned production downtime.
      • Can the 1783-BMS20CL be safely deployed inside unconditioned or non-ventilated outdoor enclosures?
        Yes. The 1783-BMS20CL features an IP30 rating and an open-style fanless cooling design. It is built to withstand hash conditions with a wide operating temperature range from -40 °C to 60 °C (-40 °F to 140 °F).
