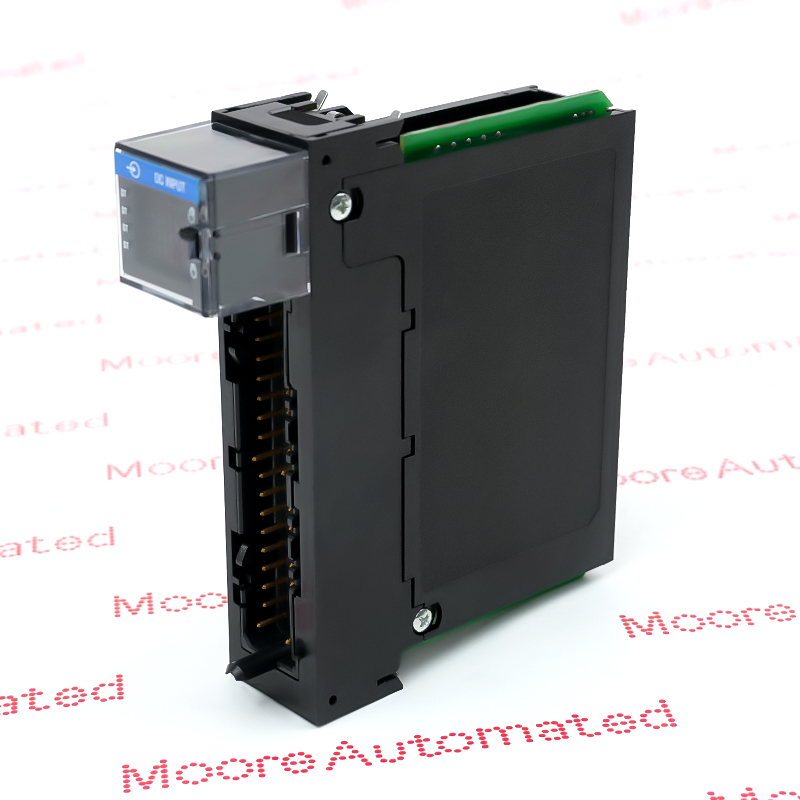

The 1756-IV32 is a 32-channel high-density digital input module from Allen-Bradley ControlLogix Systems, a subsidiary of Rockwell Automation. It primarily provides input interfaces for industrial field switch signals, accurately converting the operating status of various discrete devices (such as mechanical limit switches, pushbuttons, limit switches, and proximity switches) into logic signals recognizable by the controller, thus connecting to the PLC main processor.
The 1756-IV32 employs a sinking input physical design, meaning that field devices send positive voltage signals to the module's inputs (internal components act as leakage current points). Its standard rated operating voltage is 24V DC [1]. As part of the ControlLogix product family, it supports hot-swap (RIUP) functionality, allowing maintenance personnel to replace damaged hardware without disconnecting the system power, significantly reducing unplanned downtime in the plant.
Furthermore, the 1756-IV32 features a high-density layout design, occupying only one standard I/O slot, significantly saving physical space within the control cabinet. In practical industrial applications, the 1756-IV32 is widely used in automotive manufacturing assembly lines, large packaging machinery, material handling and warehousing systems, and various discrete monitoring loops in process control. Each module can be equipped with up to 32 detection points, making it an ideal choice for dense sensor status acquisition and fault safety alarm monitoring of large equipment.
