      Allen-Bradley 22B-D4P0N104
      Allen-Bradley 22B-D4P0N104
      Allen-Bradley 22B-D4P0N104
      Allen-Bradley 22B-D4P0N104
      Allen-Bradley 22B-D4P0N104
      Allen-Bradley 22B-D4P0N104

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Saturday, October 24
      Fast Shipping Available

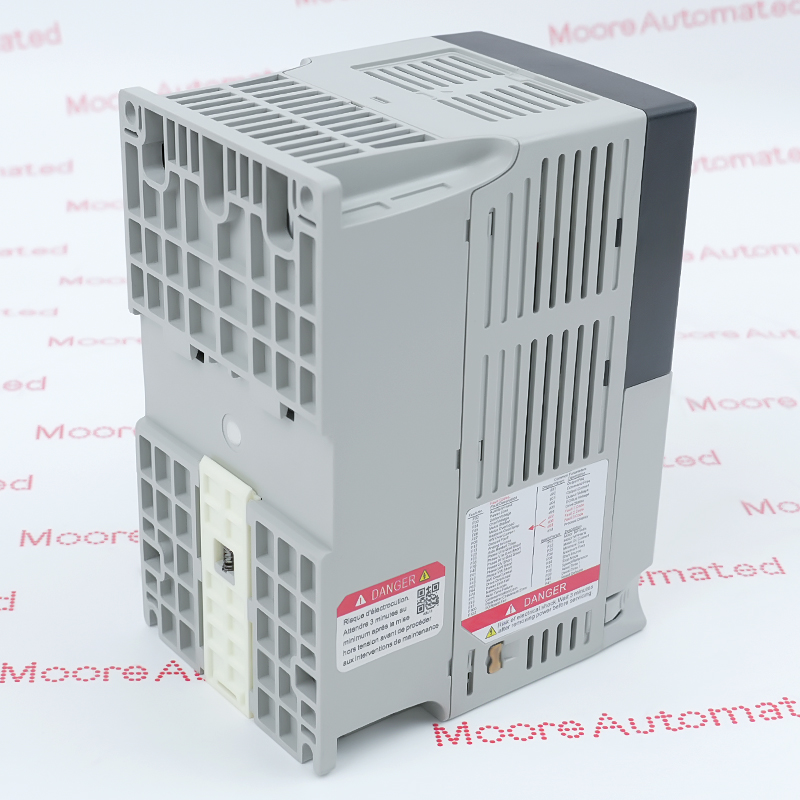

      PowerFlex 40 adjustable-frequency AC drive

      22B-D4P0N104

      Product Information:

      Allen-Bradley 22B-D4P0N104 is a PowerFlex 40 adjustable-frequency AC drive for 380 to 480 V AC three-phase input. Rockwell Automation rates this catalog number at 1.5 kW (2 hp) with 4.0 A output. The installed motor data, branch protection, control wiring and programmed parameters must be matched before replacement.
      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
        • PRODUCT OVERVIEW

          What is this product?

          Allen-Bradley 22B-D4P0N104 is a PowerFlex 40 adjustable-frequency AC drive documented for the 380 to 480 V AC three-phase input class. Rockwell Automation rates this catalog number at 1.5 kW (2 hp) with 4.0 A output and a permitted input range of 342 to 528 V AC. Correct replacement requires the full catalog number, motor nameplate data, branch protection, control-terminal wiring, option hardware and the saved parameter configuration.

          Official source

          Rockwell Automation PowerFlex 4 and 40 technical data lists the electrical ratings for catalog number 22B-D4P0N104.
        • APPLICATIONS

          Where it may be used

          Use this drive only where the incoming supply, motor rating and control scheme match the documented PowerFlex 40 installation. Before replacement, capture the parameter set and wiring; after installation, verify motor data, direction, acceleration, stopping mode, references and protective functions.

          Two-Horsepower Motor Control

          Provides the documented 1.5 kW (2 hp) PowerFlex 40 drive rating.

          Four-Amp Output

          Matches a verified motor application requiring the cataloged 4.0 A output.

          Three-Phase 480 V Class

          Operates within the documented 380 to 480 V AC three-phase input class.

          Parameter-Based Replacement

          Restores the application only after the original configuration and wiring are validated.
      Technical specifications for

      22B-D4P0N104

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Allen-Bradley
      • Product Category:
        Inverter Drives
      • Product family:
        PowerFlex 40
      • Catalog number:
        22B-D4P0N104
      • Input class:
        380 to 480 V AC, three-phase
      • Permitted input range:
        342 to 528 V AC
      • Output class:
        0 to 460 V AC, three-phase
      • Motor rating:
        1.5 kW (2 hp)
      • Output current:
        4.0 A
      • Input Voltage:
        380-480VAC
      • Series:
        PowerFlex 40
      • Stock Availability:
        1
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Revisions

      Revision Part #

      Also known as

      22B-D4P0N104 Ser A
      22B-D4P0N104/A, Series A, Rev A
      Get Parts Quote

      Alternative Names

      22B D4P0N104 PowerFlex 40 22B-D4P0N104 Allen-Bradley 22B-D4P0N104

      Information

      Overview Manuals Motor Rating Match Control Configuration Migration Planning

      Features:

      • PowerFlex 40 adjustable-frequency AC drive
      • 380 to 480 V AC three-phase input class
      • 1.5 kW (2 hp) motor rating
      • 4.0 A cataloged output current

      22B-D4P0N104 must be matched by its full catalog number and saved application configuration. Verify motor data, supply voltage, control wiring and option hardware before installation.

      Official source: Rockwell Automation PowerFlex 4 and 40 technical data.
      Allen-Bradley 22B-D4P0N104 PowerFlex 40 technical references and Moore Automated resources. Important Notice: Other accessories, manuals, cables, calibration data, software, licenses and related items are not included unless listed in the stock item description. All prices are shown in USD.

      1.5 kW application

      The documented rating is 1.5 kW (2 hp) with 4.0 A output. Confirm the connected motor nameplate current and service duty before installing the replacement.

      Parameters and terminals

      Back up the existing start source, speed reference, acceleration and deceleration, stop mode, digital inputs, relay functions and communication settings before disconnecting the legacy drive.

      PowerFlex 520-series review

      A PowerFlex 525 migration requires engineering review of dimensions, terminals, I/O, communications and parameter conversion. It is not treated as a drop-in swap solely from horsepower.

      Technical notes

      The Allen-Bradley 22B-D4P0N104 is an AC variable frequency drive designed for efficient motor control. It operates on a three-phase input voltage with a nominal rating of 480V, supporting an input voltage range of 342V to 528V. It has a maximum output power of 1.5 kW (2 HP) and a corresponding rated output current of 4 Amps.

      PowerFlex 40 Catalog Verification

      Confirm 22B-D4P0N104, the 380 to 480 V input class, 4.0 A output rating, firmware revision, option hardware and enclosure marking. If the catalog number or label is unclear, provide a complete nameplate photograph before quotation.

      Drive Quotation Configuration

      Provide quantity, complete catalog number, drive and motor nameplate photographs, motor rating, supply voltage, control or communication options, receiving country and required delivery date so Moore Automated can quote the exact drive.

      Customs & shipping dimensions / weight

      • Packed shipping dimensions
        Confirmed after final packing
        Confirmed from the supplied-item packing record.
      • Packed shipping weight
        Confirmed after final packing
        Confirmed from actual-item weighing.
      • HS / customs code
        Not officially confirmed
        Verify the destination-country classification before shipment.
      • Country of origin
        Not officially confirmed
        Verify from the supplied-item nameplate or COO.
      • Ships from
        Xiamen, Fujian, China
        Dispatch location is confirmed in the written quotation.
      • Customs documents
        Confirmed for the destination
        Available document scope is stated in the written quotation.
      PRODUCT & ORDER FAQS

      Questions buyers ask about 22B-D4P0N104

      • How is the exact 22B-D4P0N104 drive identified?

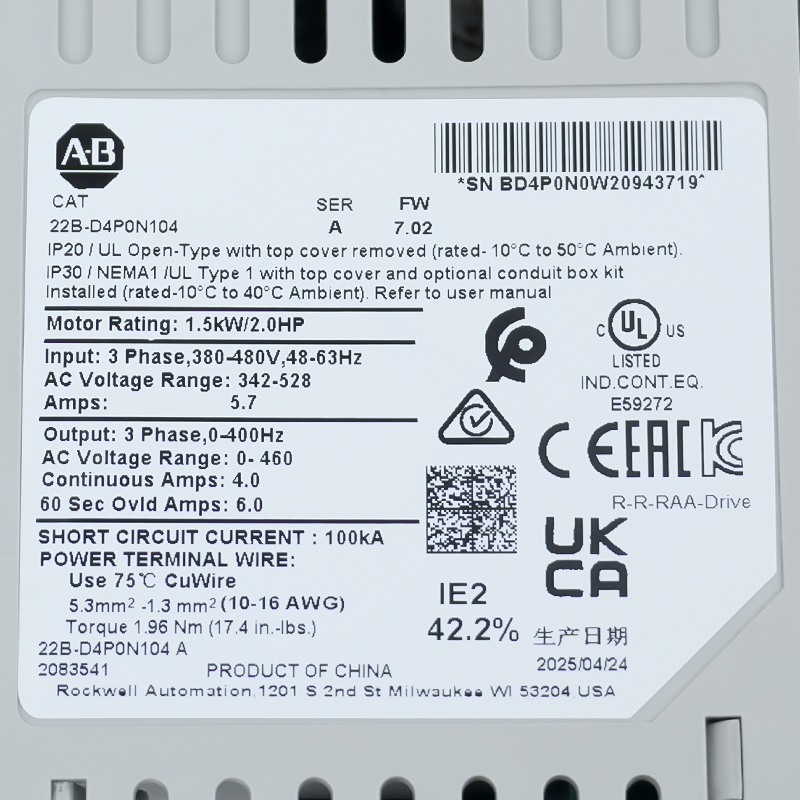

        Confirm catalog number 22B-D4P0N104 on the drive nameplate together with input voltage class, output current, series and firmware revision before ordering.

      • What motor rating is documented for this catalog number?

        Rockwell Automation lists 22B-D4P0N104 at 1.5 kW (2 hp) and 4.0 A output for the 380 to 480 V AC three-phase input class.

      • Can another PowerFlex 40 rating be installed in its place?

        Only after engineering review. Match supply voltage, motor current, enclosure, control wiring, communication options, braking arrangement and the saved parameter set.

      • What should be backed up before installation?

        Record or upload the existing drive parameters, motor nameplate data, control-terminal wiring, start source, speed reference and communication settings before disconnecting the old drive.

      • Is 22B-D4P0N104 available from stock?

        Moore Automated confirms the current quantity, exact catalog number and supplied condition in the written quotation.

      • What warranty is provided for this drive?

        Moore Automated provides a one-year warranty for the supplied 22B-D4P0N104, subject to the condition and inspection scope stated in the quotation.

      • How soon can 22B-D4P0N104 ship?

        The listing uses a three-day fast-dispatch target after quantity, nameplate identity, inspection and destination are confirmed.

      • Where can this PowerFlex 40 rating be used?

        It serves documented variable-speed motor applications whose 380 to 480 V three-phase supply, 1.5 kW motor rating and control scheme match the original drive.
