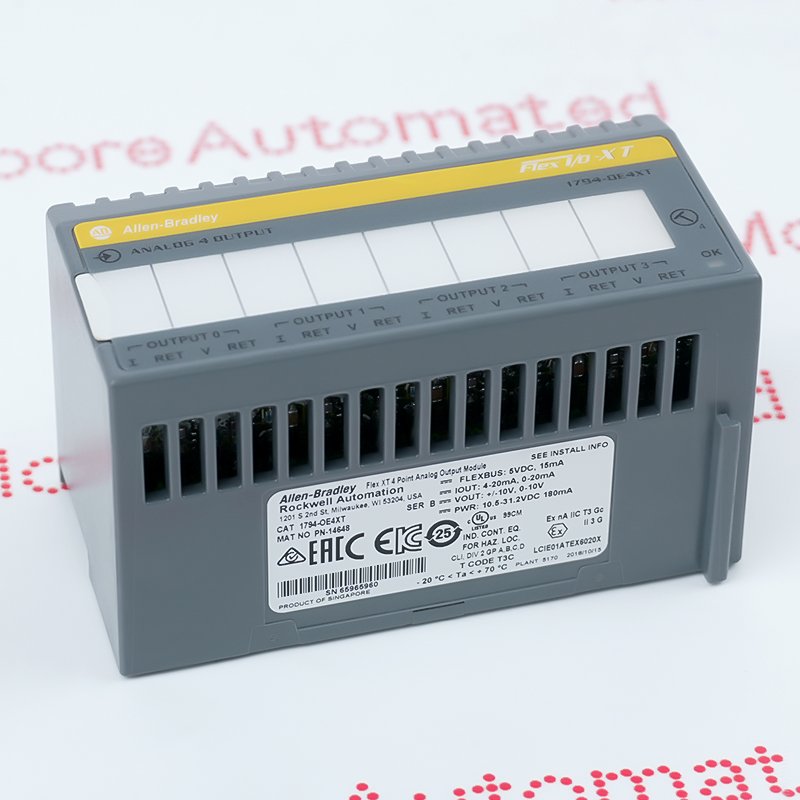

      Allen-Bradley 1794-OE4XT
      Allen-Bradley 1794-OE4XT

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Saturday, September 19
      Fast Shipping Available
      Four-point FLEX XT analog output module

      1794-OE4XT

      Product Information:

      Allen-Bradley 1794-OE4XT is a four-point analog output module for the FLEX XT I/O system. Rockwell specifies a nominal 24 V DC external supply, a 10.5–31.2 V DC range, 15 mA FlexBus current and keyswitch position 4. Use it only with a documented FLEX terminal base and confirm Series B, output wiring and the installed remote I/O station before replacement.


      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
        • PRODUCT OVERVIEW

          What is this product?

          Allen-Bradley 1794-OE4XT is a four-point analog output module for the FLEX XT I/O system. Rockwell Automation specifies Series B hardware, a nominal 24 V DC external supply with a 10.5–31.2 V DC operating range, 15 mA FlexBus current and keyswitch position 4. The module installs on a documented FLEX terminal base and provides the analog output interface for a remote I/O station. The complete catalog number, series, terminal base, output wiring and connected load must be checked together before replacement or migration.

          Official source

          Rockwell Automation publication 1794-IN125E-EN-P and FLEX I/O analog module user manual 1794-UM062-EN-P.
        • APPLICATIONS

          Where it may be used

          Use this module only in a documented FLEX XT analog-output position whose terminal base, field-power circuit, output range and Series B configuration match the installed station.

          XT Temperature

          Uses the −20 to +70 °C operating range.

          Four Outputs

          Serves four verified analog output channels.

          Base & Keying

          Fits approved bases at keyswitch position 4.

          Migration

          Plans 5094-OF8XT conversion separately.
      Technical specifications for

      1794-OE4XT

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC Systems
      • Product Type:
        Analog output module
      • I/O System:
        FLEX XT
      • Output Channels:
        4
      • Series:
        B
      • External DC Supply:
        24 V DC nominal
      • Supply Voltage Range:
        10.5–31.2 V DC including ripple
      • External Supply Current:
        165 mA at 24 V DC
      • FlexBus Current:
        15 mA at 5 V DC
      • Power Dissipation:
        4.5 W max at 31.2 V DC
      • Thermal Dissipation:
        13.6 BTU/h max
      • Recommended Terminal Bases:
        1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBN
      • Keyswitch Position:
        4
      • Isolation Voltage:
        50 V continuous, basic insulation
      • Stock Availability:
        7
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Revisions

      Revision Part #

      Also known as

      1794-OE4XT Series B
      1794-OE4XT/B, Series B, Ser B
      Get Parts Quote

      Alternative Names

      1794OE4XT 1794 OE4XT Allen-Bradley 1794-OE4XT 1794-OE4XT Series B

      Information

      Overview Manuals Wiring Base Fit Migration

      Features:

      • Four analog output channels are provided in the FLEX XT I/O format for operation from -20 to 70 °C in a compatible station.
      • The module uses a 24 V DC nominal external supply, accepts 10.5 to 31.2 V DC and draws 15 mA from the 5 V FLEXBus.
      • Installation uses keyswitch position 4 and one of the officially listed FLEX XT terminal bases, with no channel-to-channel isolation.

      1794-OE4XT is a Series B Allen-Bradley FLEX XT four-point analog output module. It combines extended-temperature service with a compact terminal-base design for distributed I/O stations, and the installation instructions specify 50 V continuous basic insulation from field-side circuits to the system. The complete catalog number, Series B marking, terminal-base selection, external 24 V DC supply and output wiring must be confirmed together before replacement or commissioning.

      Official source: Rockwell Automation 1794-OE4XT Installation Instructions, publication 1794-IN125E-EN-P, June 2024. Verify the supplied module series and terminal-base installation against the current product documentation.
      Allen-Bradley 1794-OE4XT official installation instructions Manuals / Datasheets / Links Important Notice: Other accessories, manuals, cables, calibration data, software, licenses and related items are not included unless listed in the stock item description. All prices are shown in USD.

      Wire the four 1794-OE4XT analog output channels through an approved terminal base and keep the field-side circuits within the installation-instruction limits. The module has 50 V continuous basic insulation to the system but no isolation between individual channels.

      Set the terminal-base keyswitch to position 4 and use an officially listed base: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS or 1794-TBN. Confirm the base code and wiring before inserting the module.

      Rockwell Automation places 1794-OE4XT in End of Life with a discontinuation date of 28 February 2027 and identifies 5094-OF8XT as the functional replacement. Because the replacement belongs to FLEX 5000, treat migration as an engineered platform change rather than a drop-in swap.

      Technical notes

      Allen-Bradley 1794-OE4XT is a Series B four-point FLEX XT analog output module that requires 24 V DC nominal external power, 15 mA from the 5 V FlexBus and keyswitch position 4. Rockwell lists 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS and 1794-TBN terminal bases. Confirm the complete catalog number, series, terminal base, field-power circuit and analog load before exchange. Rockwell lists the product as End of Life with a planned discontinuation date of 28 February 2027 and identifies 5094-OF8XT as the functional replacement, which requires a separately engineered migration review.

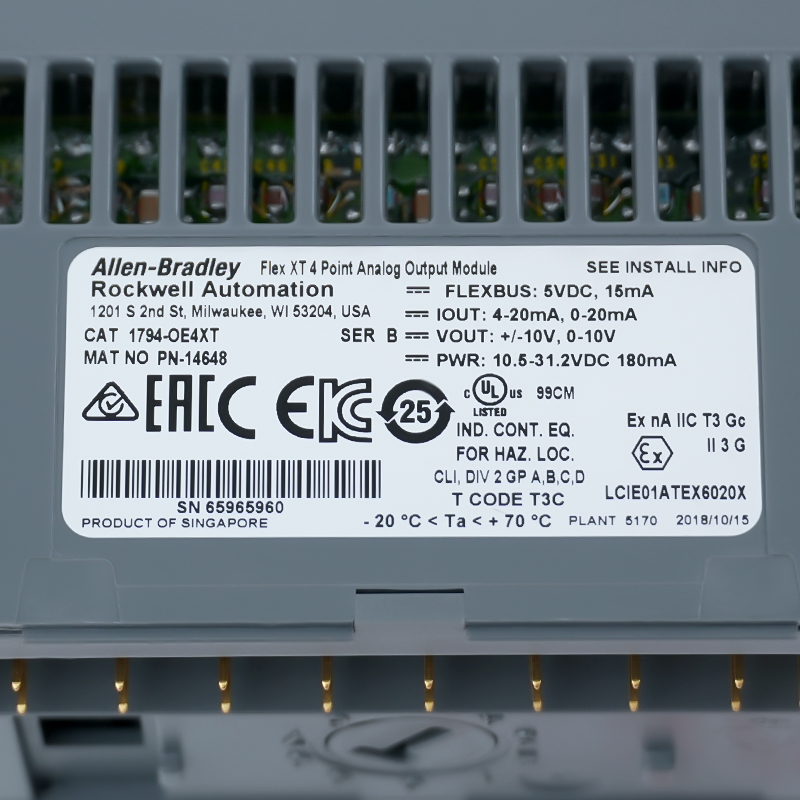

      Confirm 1794-OE4XT Series and Terminal Base

      Verify the complete catalog number 1794-OE4XT, the Series B marking and the installed FLEX XT terminal base before ordering. Supply a clear nameplate photograph and confirm the keyed position 4, output wiring and terminal-base code; this prevents substitution with a visually similar FLEX I/O analog module or with the functional replacement 5094-OF8XT without an approved migration plan.

      Information Needed to Quote the 1794-OE4XT

      Please provide quantity, the full catalog and series marking, a legible nameplate photograph, the mating FLEX XT terminal base and the controller or adapter used in the station. Include the destination country and requested delivery date so Moore Automated can confirm the correct Series B four-output module, exact supply scope and shipment schedule.

      Customs & shipping dimensions / weight

      • Packed shipping dimensions
        Confirmed after final packing
        Confirmed from the supplied-item packing record.
      • Packed shipping weight
        Confirmed after final packing
        Confirmed from actual-item weighing.
      • HS / customs code
        Not officially confirmed
        Verify for the destination before shipment.
      • Country of origin
        Singapore
        Rockwell Automation catalog record; verify the supplied-item label.
      • Ships from
        Xiamen, Fujian, China
        Dispatch location is confirmed in the written quotation.
      • Customs documents
        Confirmed for the destination
        Available document scope is stated in the written quotation.
      PRODUCT & ORDER FAQS

      Questions buyers ask about 1794-OE4XT

      • How should 1794-OE4XT be identified before ordering?

        Verify the complete 1794-OE4XT catalog number and Series B marking on the module label. If the series or suffix is unclear, send a clear nameplate photograph before quotation.

      • Which terminal bases are documented for 1794-OE4XT?

        Rockwell installation instructions list 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS and 1794-TBN. Confirm the installed base and field-wiring assignment before replacement.

      • What is the application role of this FLEX XT module?

        It provides four analog output points in a documented FLEX XT I/O station. The required output range, connected load and controller configuration must match the existing application.

      • What must be checked during installation?

        Set the terminal-base keyswitch to position 4, isolate field power, verify the 24 V DC supply and preserve the original channel wiring. Follow publication 1794-IN125E-EN-P.

      • Is 1794-OE4XT still an active Rockwell product?

        Rockwell lists it as End of Life with a planned discontinuation date of 28 February 2027 and identifies 5094-OF8XT as a functional replacement. Availability is confirmed against current Moore Automated stock.

      • What warranty is supplied with this module?

        Moore Automated provides a one-year warranty for the supplied 1794-OE4XT, subject to the condition and scope stated in the written quotation.

      • How quickly can 1794-OE4XT be shipped?

        The listing uses a three-day dispatch target with fast shipment. Final timing depends on quantity, inspection status, destination country and required customs documents.

      • Which official documents support the technical data?

        Use Rockwell publication 1794-IN125E-EN-P for installation specifications and 1794-UM062-EN-P for FLEX I/O analog-module operation. The quotation can include the matched internal PDF link.
      All FAQ
      MORE PARTS IN THE SAME PROJECT?

      Search another part number

      Use the exact manufacturer number where possible.
      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          WHY BUYERS WORK WITH MOORE AUTOMATED

          Clear checks before you commit

          Product-specific verification and written commercial details help purchasing and maintenance teams reduce mismatch risk.

          • Pre-shipment inspection

            Products are inspected before dispatch to verify model, condition and applicable specifications.

          • Documentation available

            Product photos, packaging photos, certificates and datasheets can be provided when available.

          • Clear commercial terms

            Condition, warranty, lead time, included items and shipping terms are stated clearly in writing.

          • 20+ years of experience

            Over 20 years of experience in industrial automation and hard-to-source legacy parts.

          • Product Lifecycle Stage

            End of Life / Available from OEM until 28 February 2027

            Rockwell Automation identifies 5094-OF8XT as the functional replacement, but it is a FLEX 5000 module and is not a drop-in terminal-base substitution. Moore Automated supplies quality Allen-Bradley replacement modules and FLEX XT spares for verified stations, helping customers maintain installed systems and plan an engineered migration with less downtime.
