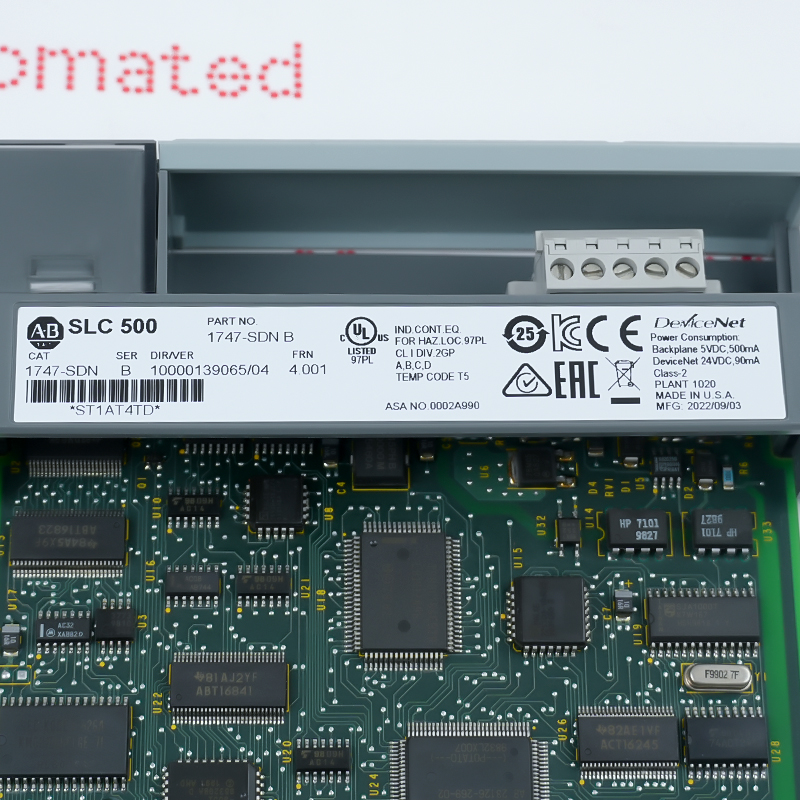

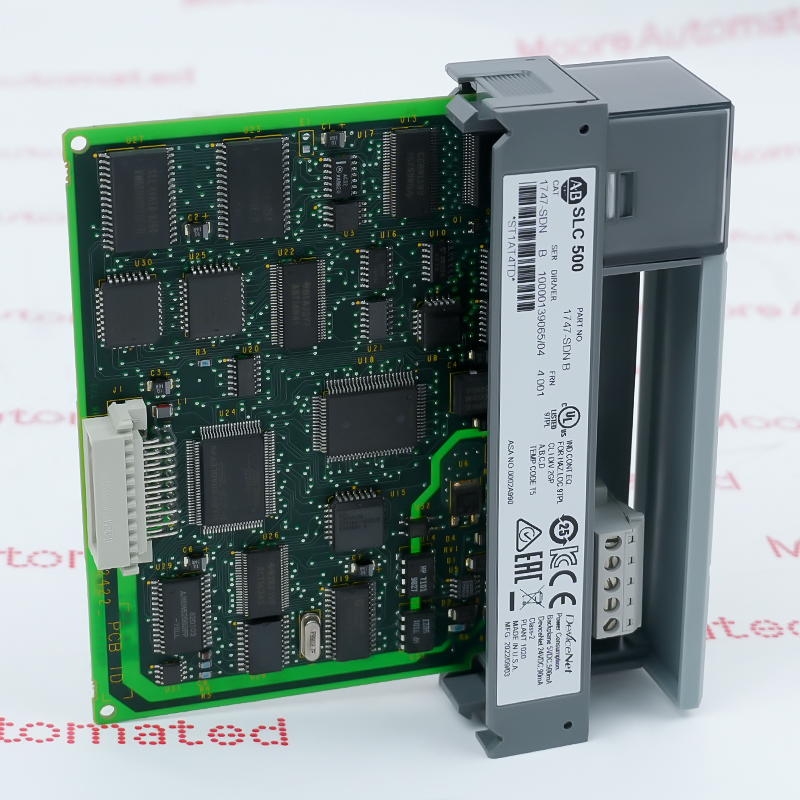

      Allen-Bradley 1747-SDN
      Allen-Bradley 1747-SDN

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Friday, September 11
      Fast Shipping Available
      DeviceNet scanner module

      1747-SDN

      Spare Part Number

      PN1747-SDN/A, 1747-SDN/B, 1747-SDN/C, 1747-SDN/D

      Product Information:

      A Series D SLC 500 DeviceNet scanner that connects an SLC processor to DeviceNet slave devices and can also operate as a DeviceNet slave. Series D provides a 256K ADR list, online scanlist changes in Run mode and scanner CCV optimization; migration to a modern platform requires engineering rather than a drop-in swap.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
        • PRODUCT OVERVIEW

          What is this product?

          A Series D SLC 500 DeviceNet scanner that connects an SLC processor to DeviceNet slave devices and can also operate as a DeviceNet slave. Series D provides a 256K ADR list, online scanlist changes in Run mode and scanner CCV optimization; migration to a modern platform requires engineering rather than a drop-in swap. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.

          Source boundary

          Manufacturer reference: official documentation for SLC 500 DeviceNet scanner modules.
        • APPLICATIONS

          Where it may be used

          Use this DeviceNet scanner module only where its documented configuration, interfaces and installation limits match the existing SLC 500 DeviceNet scanner modules arrangement.

          SLC DeviceNet master

          Exchanges mapped I/O data between an SLC controller and configured DeviceNet nodes.

          ADR-backed maintenance

          Stores supported device-replacement information for a documented Series D network.

          Scanner slave mode

          Exposes selected SLC data to another DeviceNet scanner when the project is engineered for slave operation.

          Legacy network retention

          Maintains a validated DeviceNet cell while a controlled migration plan is prepared.
      Technical specifications for

      1747-SDN

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC Systems
      • Spare Part Number:
        1747-SDN/A, 1747-SDN/B, 1747-SDN/C, 1747-SDN/D
      • Network:
        DeviceNet
      • Supported baud rates:
        125, 250 and 500 kbit/s
      • ADR list memory:
        256K
      • Operating modes:
        Scanner and DeviceNet slave
      • Isolation:
        500 VDC communication-circuit isolation
      • SLC slot requirement:
        Single SLC 500 chassis slot
      • Lifecycle date:
        Discontinued 31 March 2024
      • Migration reference:
        5069-AENTR engineering replacement path
      • Stock:
        19
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The part is inspected, tested and securely packed before dispatch, with tracking provided after release.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Revisions

      Revision Part #

      Also known as

      1747-SDN/A
      1747-SDN Ser A, Series A, Rev A
      Get Parts Quote
      1747-SDN/B
      1747-SDN Ser B, Series B, Rev B
      Get Parts Quote
      1747-SDN/C
      1747-SDN Ser C, Series C, Rev C
      Get Parts Quote
      1747-SDN/D
      1747-SDN Ser D, Series D, Rev D
      Get Parts Quote

      Alternative Names

      1747 SDN SLC 500 DeviceNet Scanner 1747-SDN 1747-SDN Series D Allen-Bradley 1747-SDN scanner 1747SDN

      Information

      Overview Manuals DeviceNet Setup Address Plan Migration Plan

      Features:

      • Series D scans DeviceNet I/O for an SLC processor and supports slave-mode operation where required.
      • A 256K automatic-device-replacement list and Run-mode scanlist changes improve installed-base maintenance flexibility.
      • The module supports 125, 250 and 500 kbit/s DeviceNet rates with isolated communication circuitry.
      A Series D SLC 500 DeviceNet scanner that connects an SLC processor to DeviceNet slave devices and can also operate as a DeviceNet slave. Series D provides a 256K ADR list, online scanlist changes in Run mode and scanner CCV optimization; migration to a modern platform requires engineering rather than a drop-in swap. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.

      Manufacturer reference: official SLC 500 DeviceNet scanner modules documentation.

      Moore Automated supports exact-item verification and spare-part enquiries for 1747-SDN.
      Allen-Bradley 1747-SDN official manufacturer document excerpt (PDF), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

      Save the complete node list, I/O sizes, mapping and electronic keys before removing the installed scanner.

      Set the replacement to the existing network rate and a conflict-free node address before reconnecting the trunk.

      Treat the 5069-AENTR path as a redesigned Logix/EtherNet/IP architecture, not as a direct SLC-slot substitute.

      Technical notes

      A Series D SLC 500 DeviceNet scanner that connects an SLC processor to DeviceNet slave devices and can also operate as a DeviceNet slave. Series D provides a 256K ADR list, online scanlist changes in Run mode and scanner CCV optimization; migration to a modern platform requires engineering rather than a drop-in swap. Verify 1747-SDN and Series D on the side label, then save the DeviceNet node address, baud rate, scanlist, input/output mapping and controller project. Earlier module series do not provide every Series D feature. Back up the SLC program and DeviceNet scanlist, isolate chassis and network power, match baud rate and node address, reconnect the trunk/drop wiring and validate every mapped device before returning the scanner to Run mode.

      Complete Label Verification

      Verify 1747-SDN and Series D on the side label, then save the DeviceNet node address, baud rate, scanlist, input/output mapping and controller project. Earlier module series do not provide every Series D feature.

      Required Sourcing Details

      For quotation, provide quantity, the complete 1747-SDN label, clear nameplate and connector photographs, connected equipment, receiving country and required delivery date. Include project, firmware or hardware-revision records where applicable so Moore Automated can match and quote the exact item.

      Customs & Shipping Data

      • Packed shipping dimensions
        Confirmed after final packing
        14.5 x 5.1 x 13.2 cm
      • Packed shipping weight
        Confirmed after final packing
        Approx. 0.37 kg
      • HS / customs code
        Not officially confirmed
        Verify for the destination before shipment.
      • Country of origin
        United States of America
        Rockwell-listed; verify the unit label.
      • Ships from
        Xiamen, Fujian, China
        Dispatch location is confirmed in the written quotation.
      • Customs documents
        Confirmed for the destination
        Available document scope is stated in the written quotation.
      PRODUCT & ORDER FAQS

      Questions buyers ask about 1747-SDN

      • How can I confirm that I need the exact 1747-SDN configuration?

        Verify 1747-SDN and Series D on the side label, then save the DeviceNet node address, baud rate, scanlist, input/output mapping and controller project. Earlier module series do not provide every Series D feature.

      • Can I use 1747-SDN with my existing equipment?

        The module requires an SLC 500 chassis and a valid DeviceNet network configuration. A 5069-AENTR belongs to a different architecture and is an engineering migration reference, not a slot-compatible replacement.

      • Are you an authorized agent for the 1747-SDN manufacturer?

        Moore Automated is an independent supplier rather than an authorized manufacturer agent. The quotation identifies the exact original 1747-SDN, and Moore provides independent verification, competitive pricing and a one-year warranty.

      • Which two ratings should I compare before selecting 1747-SDN?

        Compare network (DeviceNet) and module series (Series D). Both values must fit the connected hardware and the original design record; matching only the physical appearance is insufficient.

      • What should I check before installing 1747-SDN?

        Back up the SLC program and DeviceNet scanlist, isolate chassis and network power, match baud rate and node address, reconnect the trunk/drop wiring and validate every mapped device before returning the scanner to Run mode.

      • Can you include COC, COO or test documents with my 1747-SDN?

        Yes. State the required documents before ordering. Moore Automated will confirm which available COO, COC, test-report or warranty-letter documents are available for the exact item; confirmed certificates can be packed with the shipment.

      • How do supported baud rates and adr list memory affect my 1747-SDN replacement?

        For this item, supported baud rates is 125, 250 and 500 kbit/s, while adr list memory is 256K. Verify both against the current system configuration before approving a replacement.

      • What evidence can I request to verify the 1747-SDN held in stock?

        Request a current photograph of the complete label and the relevant connector or terminal face. The image should show 1747-SDN, Series D, firmware/label data, DeviceNet connector and module status display so the quoted unit can be compared with the installed item.
