Features:
- The complete mechanical code specifies 3/8-24 UNF mounting, 0.0 in unthreaded length, 1.6 in case and without armor.
- A 0.5 m lead with clickloc connector, fluidloc cable and connector protector defines the probe-side electrical length and connection style.
- The 3300 XL 8 mm system provides a 2.0 mm linear range and nominal 7.87 V/mm scale when matched to the correct electronics and target.

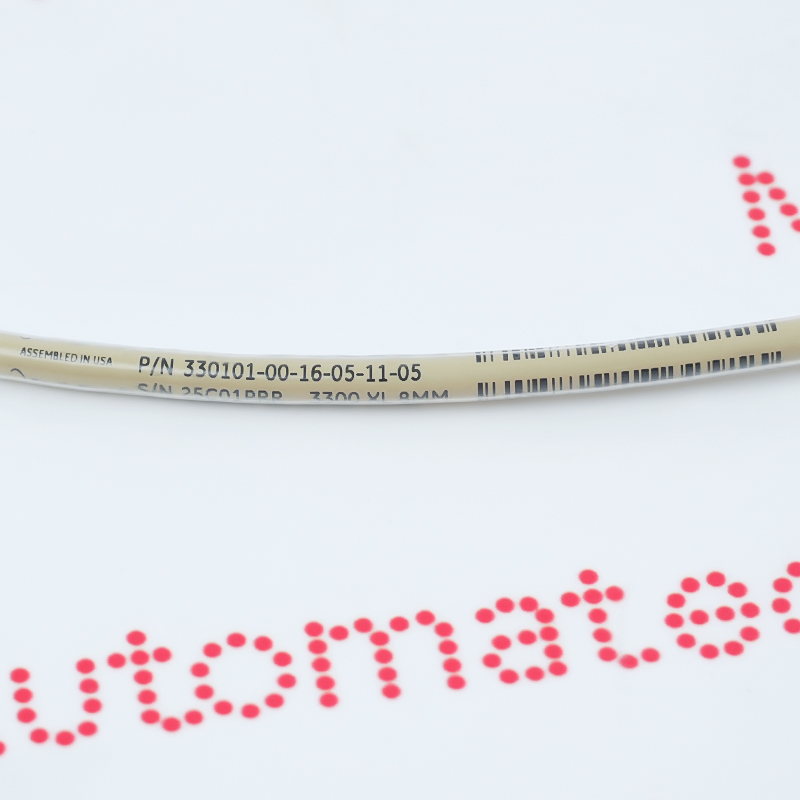

Bently Nevada 330101-00-16-05-11-05 is a standard-mount probe in the 3300 XL 8 mm Proximity Transducer System. The full order code defines 3/8-24 UNF mounting threads, without armor, 0.0 in unthreaded length, 1.6 in case and a 0.5 m total probe length. Connector/cable option 11 supplies clickloc connector, fluidloc cable and connector protector, while final option 05 identifies CSA, ATEX and IECEx approvals. When paired with the correct system-length Proximitor Sensor, the probe produces the documented 200 mV/mil scale over a 2.0 mm linear range. Correct replacement depends on the complete mechanical geometry, cable length, FluidLoc or standard construction, connector protector, target material, mounting method and electronics length; the probe family number alone is not sufficient.
Manufacturer reference: official 3300 XL 8 mm Proximity Transducer System documentation.
Moore Automated supports exact-item verification and spare-part enquiries for 330101-00-16-05-11-05.
330101-00-16-05-11-05 official technical documentation and verified Moore Automated resources.
Important Notice: Confirm the complete ordering code and installed transducer system before replacement. All links open in a new page.
Map the mechanical lengths, 0.5 m lead, connector/cable option 11 and approval 05 before accepting a replacement.
Match the 0.5 m probe arrangement to the correct 3300 XL 8 mm Proximitor Sensor and verify any extension cable.
Use the 3/8-24 UNF mount, respect cable bend limits and set the operating point from live gap voltage within the 2.0 mm linear range.
