Features:
- Eight-Millimeter Eddy-Current Probe: Provides non-contact shaft-vibration and position measurements as part of a matched 3300 XL 8 mm transducer chain.
- Defined Mechanical Geometry: Uses a 3/8-24 UNF threaded case with zero unthreaded length and a documented 2.0 in overall case length.
- Integrated Cable and Connector: Includes a 1.0 m standard cable with a miniature coaxial ClickLoc connector for the compatible extension cable and Proximitor Sensor.

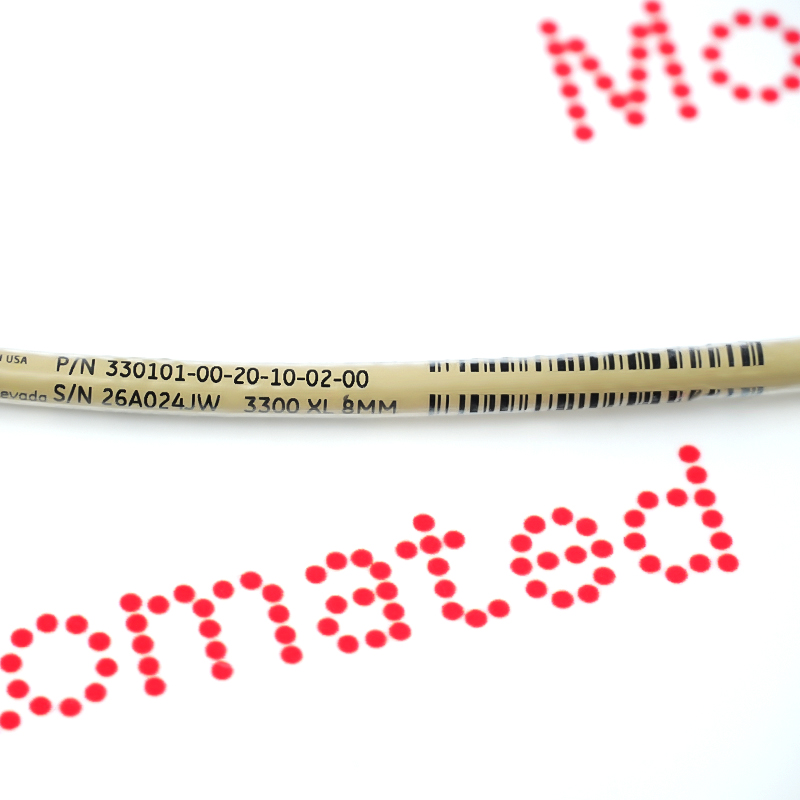

The Bently Nevada 330101-00-20-10-02-00 is a 3300 XL 8 mm eddy-current proximity probe for non-contact vibration and shaft-position measurements. Its order code identifies the documented mounting thread, unthreaded length, overall case length, cable length and connector execution. Each option block forms part of the exact probe identity and should be preserved when selecting a replacement for an existing monitoring point.
This probe operates as one component of a matched 3300 XL 8 mm transducer chain and must be paired with the correct extension cable and Proximitor Sensor. Before commissioning, confirm the total electrical length, mounting geometry, target material, connector condition, cable routing and installed scale factor, then set the mechanical gap and verify bias voltage and channel response according to the connected monitoring system.
The Bently Nevada 330101-00-20-10-02-00 3300 XL Proximity Probe may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-20-10-02-00 3300 XL 8 mm Proximity Probe manual (Datasheet), Link
Important Notice: Confirm the complete order code, hardware execution and connected system before replacement. Accessories, cables, calibration data, software and certificates are included only when stated in the written quotation.
Confirm the 3/8-24 UNF thread, zero unthreaded length, 2.0 in overall case and the available mounting clearance before installation.
Match the 1.0 m probe cable, extension cable and 3300 XL 8 mm Proximitor Sensor so the documented total electrical length and scale factor are preserved.
Set the probe gap using the connected system documentation, secure the mounting hardware, inspect cable strain and verify bias voltage and channel response before service release.
