Features:
- The documented value for thread is 3/8-24 UNF-2A; confirm the installed mounting interface, available reach and mechanical clearance before replacement.
- The documented armor configuration is No; preserve this construction together with the complete order code and cable-routing requirements.
- The documented value for unthreaded length is 0.0 in; confirm the installed mounting interface, available reach and mechanical clearance before replacement.
330101-00-20-90-02-05 is a Bently Nevada 3300 XL 8 mm proximity probe for the 3300 system. It measures shaft vibration or position without contact in a matched transducer chain. Key specifications: Thread: 3/8-24 UNF-2A; Armor: No. Match the full order code and hardware before replacement.
This 9.0 m standard-cable probe requires the corresponding 9 m 3300 XL Proximitor Sensor. Keep 3/8-24 thread engagement at or below 0.563 inch, maintain at least 38 mm separation between probe tips for radial measurements, and use the option-05 approval drawings in hazardous locations.
The 330101-00-20-90-02-05 Bently Nevada 3300 XL 8 mm proximity probe may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-20-90-02-05 3300 XL 8 mm proximity probe manual (Datasheet), Link
Important Notice: Confirm the complete order code, hardware execution and connected system before replacement. Accessories, cables, calibration data, software and certificates are included only when stated in the written quotation.

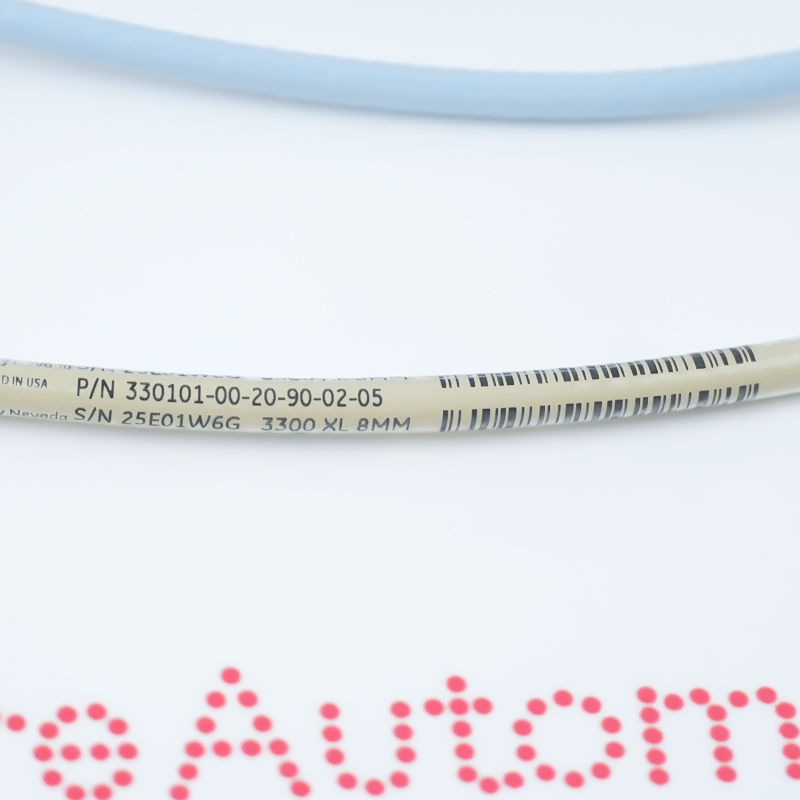

Preserve every option block of 330101-00-20-90-02-05. Retained facts: Thread: 3/8-24 UNF-2A; Armor: No; Unthreaded length: 0.0 in. Mechanical length, thread, cable/connector and approval suffixes are part of the exact probe identity.
Match probe family, electrical length, extension cable and Proximitor Sensor. Confirm target material, available travel, nearby probe spacing and mounting geometry before exchange.
Set the operating gap from live bias voltage, support the cable above its bend limit and verify runout, vibration or position response against the commissioning baseline.
