Features:
- The complete mechanical code specifies M10 x 1 mounting, 80 mm unthreaded length, 130 mm case and stainless-steel armor.
- A 1.0 m lead with clickloc connector, standard cable and connector protector defines the probe-side electrical length and connection style.
- The 3300 XL 8 mm system provides a 2.0 mm linear range and nominal 7.87 V/mm scale when matched to the correct electronics and target.

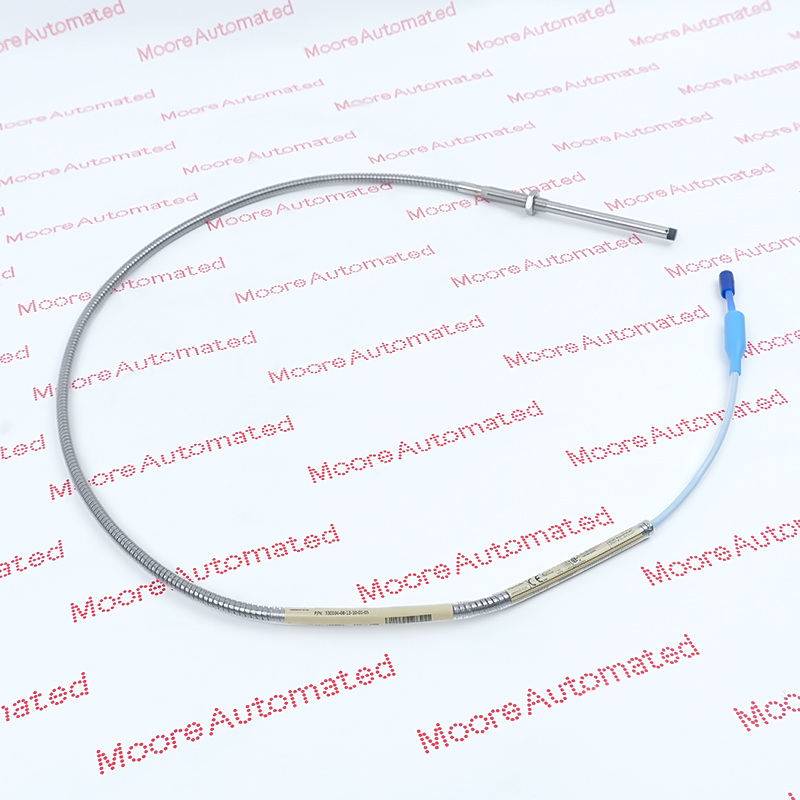

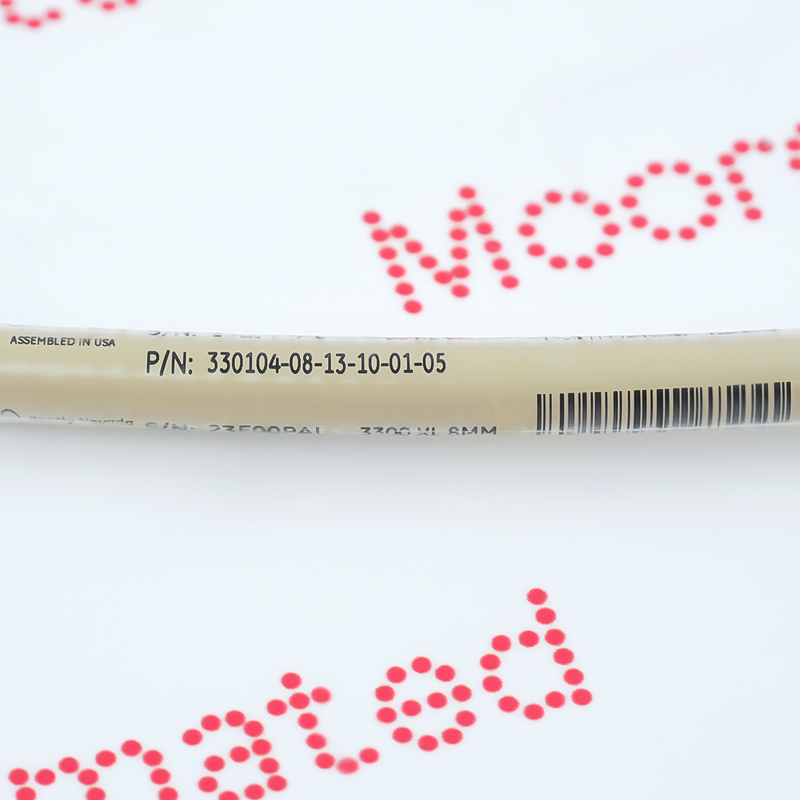

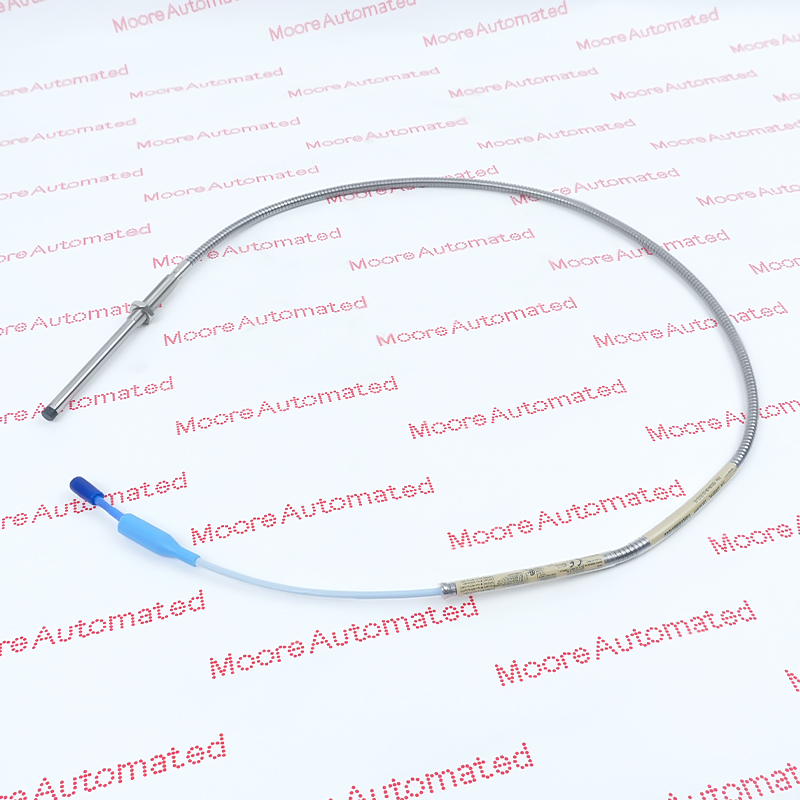

Bently Nevada 330104-08-13-10-01-05 is a standard-mount probe in the 3300 XL 8 mm Proximity Transducer System. The full order code defines M10 x 1 mounting threads, stainless-steel armor, 80 mm unthreaded length, 130 mm case and a 1.0 m total probe length. Connector/cable option 01 supplies clickloc connector, standard cable and connector protector, while final option 05 identifies CSA, ATEX and IECEx approvals. When paired with the correct system-length Proximitor Sensor, the probe produces the documented 200 mV/mil scale over a 2.0 mm linear range. Correct replacement depends on the complete mechanical geometry, cable length, FluidLoc or standard construction, connector protector, target material, mounting method and electronics length; the probe family number alone is not sufficient.
Manufacturer reference: official 3300 XL 8 mm Proximity Transducer System documentation.
Moore Automated supports exact-item verification and spare-part enquiries for 330104-08-13-10-01-05.
Bently Nevada 330104-08-13-10-01-05 8 mm proximity probe manual (Datasheet), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Map the mechanical lengths, 1.0 m lead, connector/cable option 01 and approval 05 before accepting a replacement.
Match the 1.0 m probe arrangement to the correct 3300 XL 8 mm Proximitor Sensor and verify any extension cable.
Use the M10 x 1 mount, respect cable bend limits and set the operating point from live gap voltage within the 2.0 mm linear range.
