Features:
- The documented value for cable type is 3/8-24 UNF threads; verify the connector interface, electrical length and matching 3300 signal-chain components before commissioning.
- The documented value for products designed is 3300 XL 8 mm Reverse Mount Probes; retain this specification when matching the exact 3300 xl 8 mm reverse mount probe and installed Bently Nevada 3300 hardware.
- The documented value for total length is 0.5 meter (1.6 feet); retain this dimension when checking mounting geometry, routing and compatibility with the installed hardware.

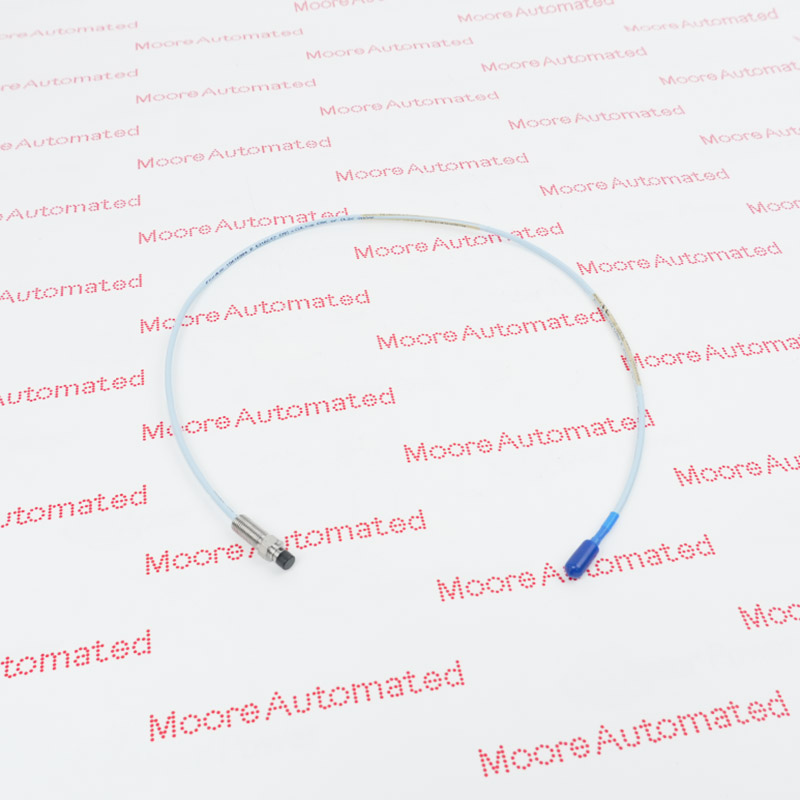

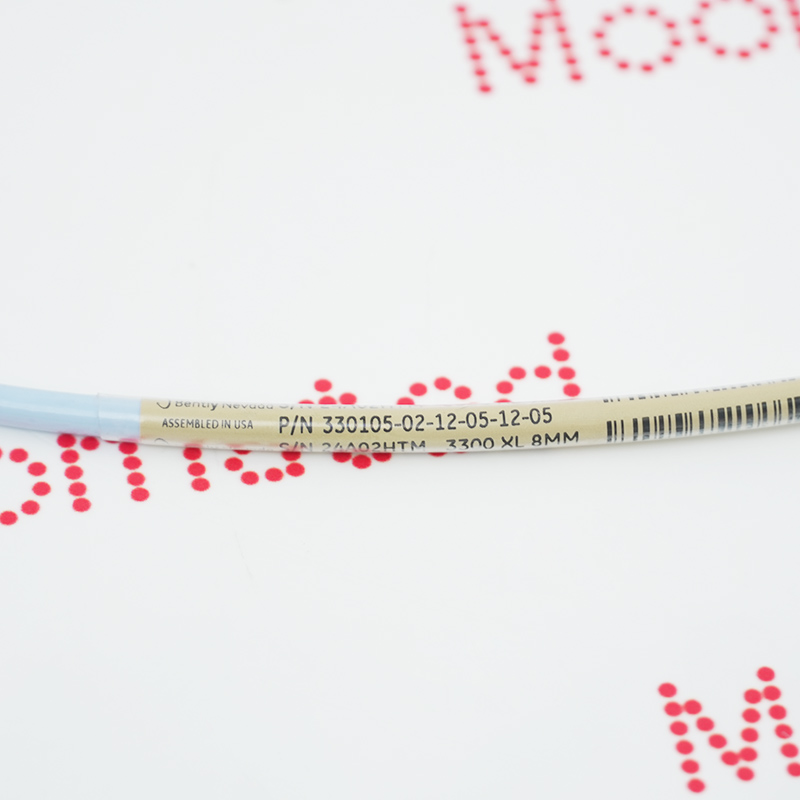

330105-02-12-05-12-05 is a Bently Nevada 3300 XL 8 mm Reverse Mount Probe for the 3300 system. It measures shaft vibration or position without contact in a matched transducer chain. Key specifications: Cable type: 3/8-24 UNF threads; Products Designed: 3300 XL 8 mm Reverse Mount Probes. Match the full order code and hardware before replacement.
Confirm the complete 330105-02-12-05-12-05 order code, installed signal chain, mounting arrangement and commissioning record before replacement.
The 330105-02-12-05-12-05 Bently Nevada 3300 XL 8 mm Reverse Mount Probe may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330105-02-12-05-12-05 3300 XL 8 mm Reverse Mount Probe manual (Datasheet), Link
Important Notice: Confirm the complete order code, hardware execution and connected system before replacement. Accessories, cables, calibration data, software and certificates are included only when stated in the written quotation.
Preserve every option block of 330105-02-12-05-12-05. Retained facts: Cable type: 3/8-24 UNF threads; Products Designed: 3300 XL 8 mm Reverse Mount Probes; Total Length: 0.5 meter (1.6 feet). Mechanical length, thread, cable/connector and approval suffixes are part of the exact probe identity.
Match probe family, electrical length, extension cable and Proximitor Sensor. Confirm target material, available travel, nearby probe spacing and mounting geometry before exchange.
Set the operating gap from live bias voltage, support the cable above its bend limit and verify runout, vibration or position response against the commissioning baseline.
