- 3300 XL Proximitor Sensor
- 3300 XL 8 mm Proximity Transducer System
- The 3300 XL probe and extension cable also reflect improvements over previous designs
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

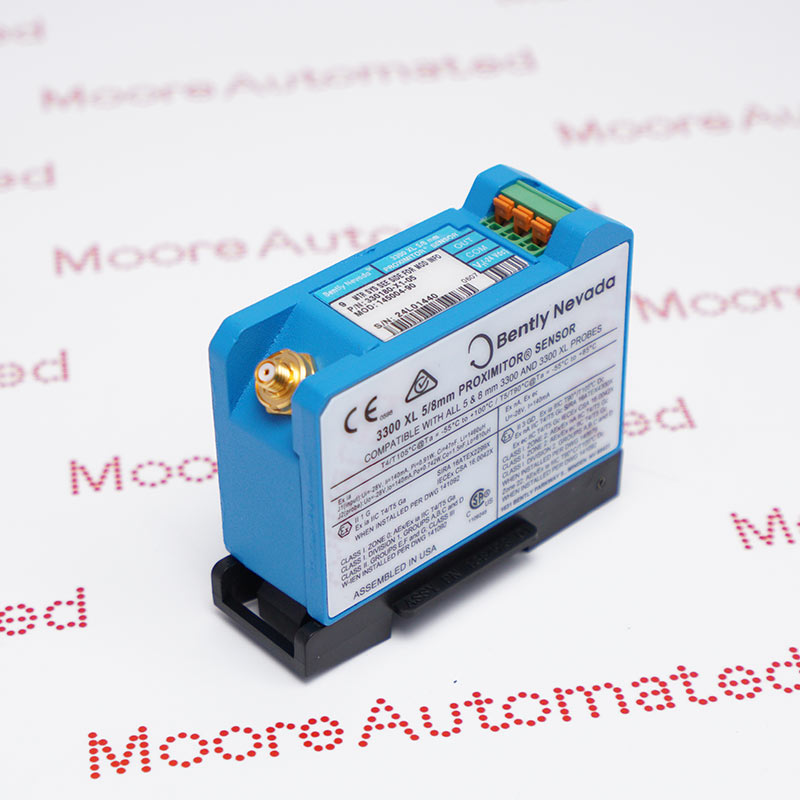

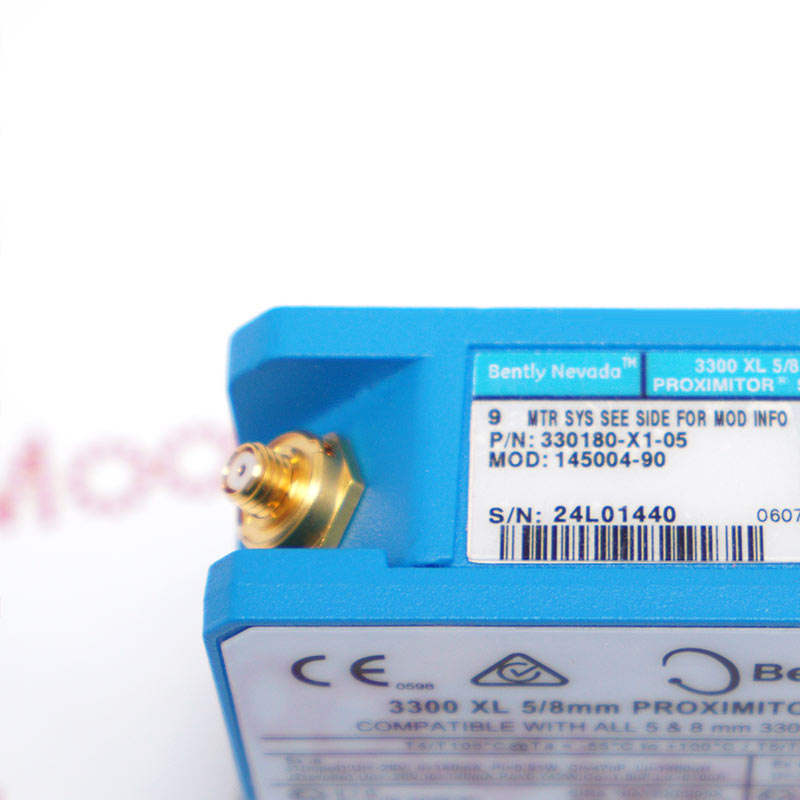

The 330180-X1-05 MOD:145004-90 Bently Nevada 3300 XL Proximitor Sensor may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330180-X1-05 MOD:145004-90 3300 XL Proximitor Sensor Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
MOD 145004-90 is used when machine shafts or target surfaces are made of non-standard 4140 steel. Common applications include:
1. Special Alloy Shafts: For pumps or compressors using special metal shafts (e.g., Inconel, Monel, or specific stainless steels).
2. Vibration and Thrust Monitoring: Provides accurate data for machine protection systems such as the Bently Nevada 3500.
3. Precision Clearance Measurement: Ensures the accuracy of axial and radial measurements, unaffected by the metallurgical properties of the target material.
