Features:
- MOD 165931-01 controls a custom 330105 mechanical configuration that must be read from the full label or OEM record.
- Option 10 provides a one-metre probe length and option 02 uses the miniature ClickLoc connector with standard cable.
- Electrical performance follows the matched 3300 XL 8 mm system only when the correct probe, extension cable and Proximitor Sensor are used.

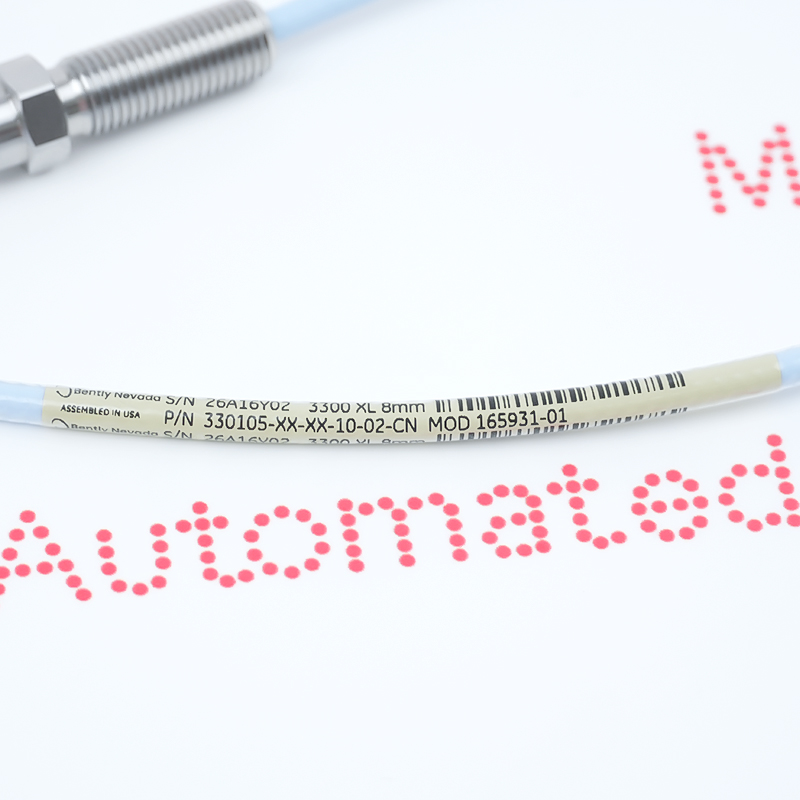

A custom MOD 165931-01 version of the 330105 reverse-mount 3300 XL 8 mm probe. The standard family uses 3/8-24 UNF reverse-mount construction; code 10 specifies a 1.0 m total length and connector option 02 specifies a miniature ClickLoc coaxial connector with standard cable, while the XX mechanical blocks and CN approval marking remain controlled by the exact OEM order record. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official 3300 XL 8 mm reverse-mount probes documentation.
Moore Automated supports exact-item verification and spare-part enquiries for 330105-XX-XX-10-02-CN MOD 165931-01.
Bently Nevada 330105-XX-XX-10-02-CN MOD 165931-01 official manufacturer document excerpt (PDF), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Treat both XX blocks and 165931-01 as drawing-controlled identity; obtain the nameplate or original purchase record before approving geometry.
Combine the one-metre probe with the correct extension cable and Proximitor Sensor for the installed 3300 XL system length.
Protect the ClickLoc connector, observe bend radius and set the final probe gap from the live channel voltage after mechanical alignment.
