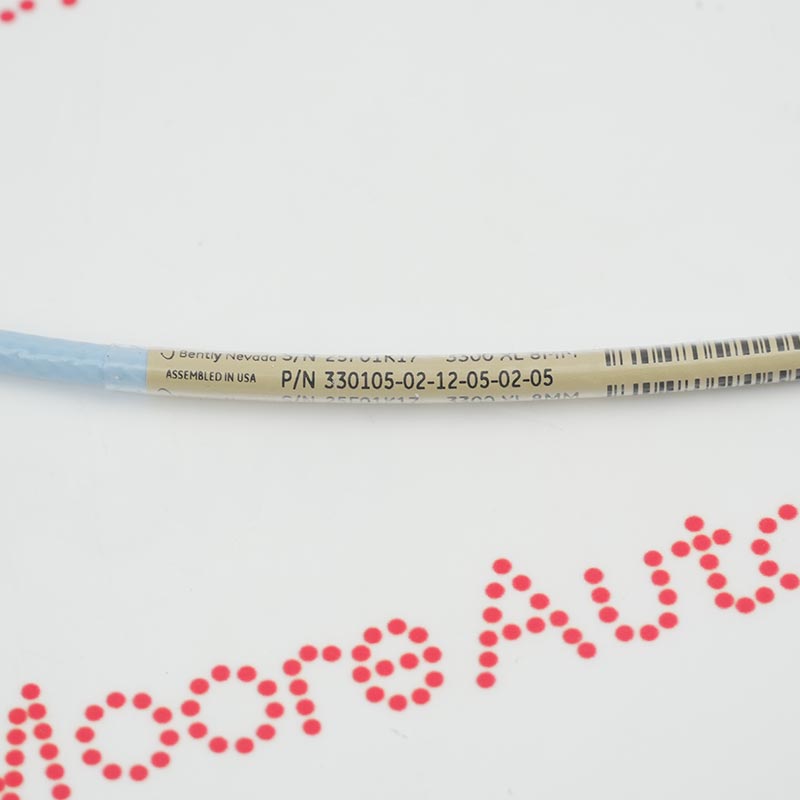

      Bently Nevada 330105-02-12-05-02-05
      Bently Nevada 330105-02-12-05-02-05
      Bently Nevada 330105-02-12-05-02-05
      Bently Nevada 330105-02-12-05-02-05
      Bently Nevada 330105-02-12-05-02-05
      Bently Nevada 330105-02-12-05-02-05
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      330105-02-12-05-02-05

      3300 XL 8 mm Reverse Mount Probes
      In Stock
      Ships by Tuesday, June 23
      Fast Shipping Available

      Product Information:

      Part number 330105-02-12-05-02-05 identifies the Bently Nevada 3300 XL 8mm reverse-mounted proximity probe. This eddy current sensor, manufactured by Baker Hughes/Bently Nevada, is used for non-contact vibration, displacement, and velocity (bonded phasor) monitoring of rotating machinery.

      As the core field hardware of the 3300 XL proximity sensor system, it is based on the eddy current principle and achieves a high linearity sensitivity output of 7.87 V/mm (200 mV/mil) with the aid of a preamplifier. This probe is designed for non-contact, high-precision shaft vibration and displacement monitoring, as well as bonded phasor velocity measurement, in rotating machinery such as hydrodynamic bearing units and steam turbines, and fully complies with API 670 International Petroleum Institute standard.

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 330105-02-12-05-02-05

      • Manufacturer:
        Bently Nevada
      • Product Category:
        TSI System
      • Estimated shipping dimensions:
        55 x 1 x 3.5 cm
      • Weight:
        0.08 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Type:
        3/8-24 UNF threads
      • Total Length:
        0.5 meter (1.6 feet)
      • Connector and Cable-Type:
        Miniature ClickLoc coaxial connector
      • Agency Approval:
        CSA, ATEX, IECEx Approvals
      • Output Resistance:
        50 Ω
      • Probe Tip Material:
        Polyphenylene sulfide (PPS)
      • Probe Case Material:
        AISI 303 or 304 stainless steel (SST)
      • Maximum Rated:
        22.6 N•m (200 in•lbf)
      • Recommended:
        7.5 N•m (66 in•lbf)
      • Operating and Storage Temperature:
        -52°C to +177°C (-62°F to +350°F)
      • Stock:
        30
      Ask for Quote

      Alternative Names

      330105 02 12 05 02 05 330I05-02-I2-05-02-05 33O1O5-O2-12-O5-O2-O5 330105-02-12-05-02-00 330105-02-12-10-02-00 330105-02-12-10- 02-05 330105-02-12-10-02-05 330105-02-12-05-12-05 330105-02-12-05-12-00 330105-02-12-05-02-CN 330105-02-12-15-02-05 330105-02-12-20-02-05 330105-02-12-50-02-05 330105-02-12-90-02-05

      Information

      Overview Manuals Basic Info Ordering Information Principle Application Details

      Features:

      • 3300 XL 8 mm Reverse Mount Probes
      • 330105-02-12 3/8-24 UNF threads
      • 3300 XL 8 mm Proximity Transducer System
      The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

      The 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc connectors. These connectors require only finger-tight torque (the connectors will "click" when tight), and the specially-engineered locking mechanism prevents the connectors from loosening. These connectors require no special tools for installation or removal.

      The 330105-02-12-05-02-05 Bently Nevada 3300 XL 8 mm Reverse Mount Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Bently Nevada 330105-02-12-05-02-05 3300 XL 8 mm Reverse Mount Probes Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      • Model: 330105-02-12-05-02-05
      • Warranty: One-year warranty
      • Condition: Brand new, original, in stock
      • Product Family: 3300 XL 8 mm Proximity Transducer System
      3300 XL 8 mm Reverse Mount Probes
      330105-02-12-Cxx-Dxx-Exx 3/8-24 UNF threads

      Option Descriptions
      C: Total Length
      05: 0.5 meter (1.6 feet)
      10: 1.0 meter (3.3 feet)
      15: 1.5 meter (4.9 feet)
      20: 2.0 meters (6.6 feet)
      50: 5.0 meters (16.4 feet)
      90: 9.0 meters (29.5 feet)

      D: Connector and Cable-Type
      02: Miniature ClickLoc coaxial connector
      12: Miniature ClickLoc coaxial connector , FluidLoc cable

      E: Agency Approval
      00: Not required
      05: CSA, ATEX, IECEx Approvals
      Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
      1. Vibration Monitoring: Used for high-precision, non-contact measurement of vibration and axial position in rotating machinery such as turbines, motors, and compressors.
      2. Interchangeability: This probe is fully compatible with the 3300 XL proximity sensor and extension cable, eliminating the need for manual bench calibration after interchange.
      3. Environmental Adaptability: Designed to operate over a temperature range of -51°C to +177°C, conforming to API 670 standards, ensuring industrial safety and accuracy.
      4. Target Materials: Default calibration is suitable for AISI 4140 steel; other materials require specific system recalibration

      Manuals

      Technical notes

      This model designation represents the Bently Nevada 3300 XL 8mm Reverse Mount Probe from Baker Hughes. 330105 specifies its reverse mount configuration using a 3/8-24 UNF standard thread. The suffix options 02-12-05-02-05 define its dimensions as follows: 0.2-inch unthreaded section length (02), 1.2-inch overall housing length (12), 0.5-meter (1.6-foot) total probe length (05), small ClickLoc coaxial connector, and FluidLoc leak-proof cable (02). It also features multinational explosion-proof/institutional certifications (05).

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • How does the 330105-02-12-05-02-05 maintain operational robustness and signal integrity in electromagnetically hostile industrial environments?
        Incorporating advanced electromagnetic shielding, robust differential signal conditioning, and noise rejection circuitry, the 330105-02-12-05-02-05 ensures stable and interference-resilient output signals in electrically noisy plant conditions.
      • What distinguishes the 330105-02-12-05-02-05 in terms of its sensing precision and resolution capabilities within high-fidelity displacement measurement applications?
        The 330105-02-12-05-02-05 features a highly linear sensing coil optimized for an 8 mm nominal gap, delivering exceptional resolution and repeatability essential for sub-micron displacement detection in critical rotating machinery diagnostics.
      • How does the 330105-02-12-05-02-05 facilitate seamless integration with digital control and condition monitoring systems?
        Providing standardized 4-20 mA or 0-10 V analog outputs with low latency, the 330105-02-12-05-02-05 interfaces efficiently with advanced PLCs, DCS platforms, and condition monitoring modules, enabling real-time data acquisition and diagnostics.
      • How does the coil geometry and material composition of the 330105-02-12-05-02-05 contribute to its enhanced frequency response and bandwidth?
        The precision-wound coil and high-permeability core materials in the 330105-02-12-05-02-05 optimize inductance and Q-factor, extending frequency response bandwidth suitable for dynamic vibration and shaft movement analysis.
      • What signal conditioning accessories are compatible with the 330105-02-12-05-02-05 to tailor its output for specific control system requirements?
        The 330105-02-12-05-02-05 can be paired with industry-standard signal conditioners offering customizable gain, filtering, and fault diagnostics, allowing adaptation to diverse measurement and control system architectures.
