Features:
- The 040 order-code field specifies a 4.0 m (11.5 ft) extension-cable length for the matched transducer system.
- Standard 75-ohm triaxial construction uses corrosion-resistant ClickLoc coaxial interfaces and a 25.4 mm minimum bend radius.
- Probe length plus extension-cable length must equal the total system length specified for the installed Proximitor Sensor.

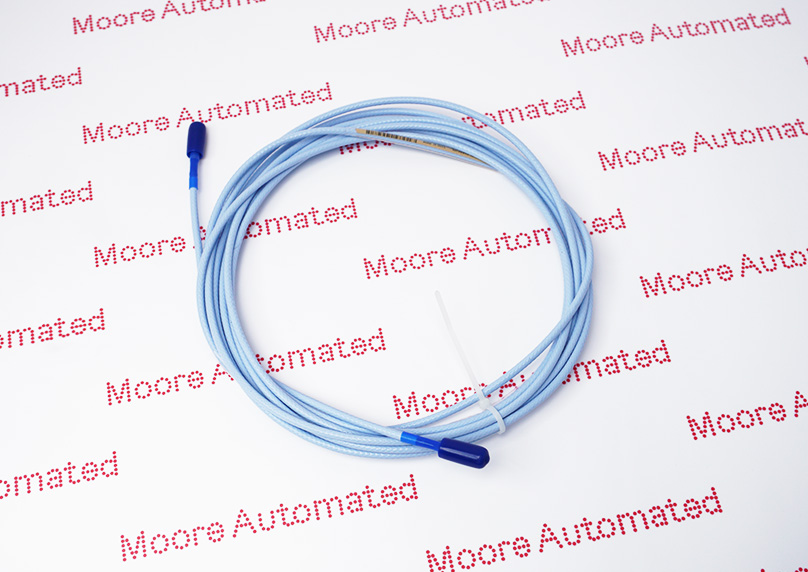

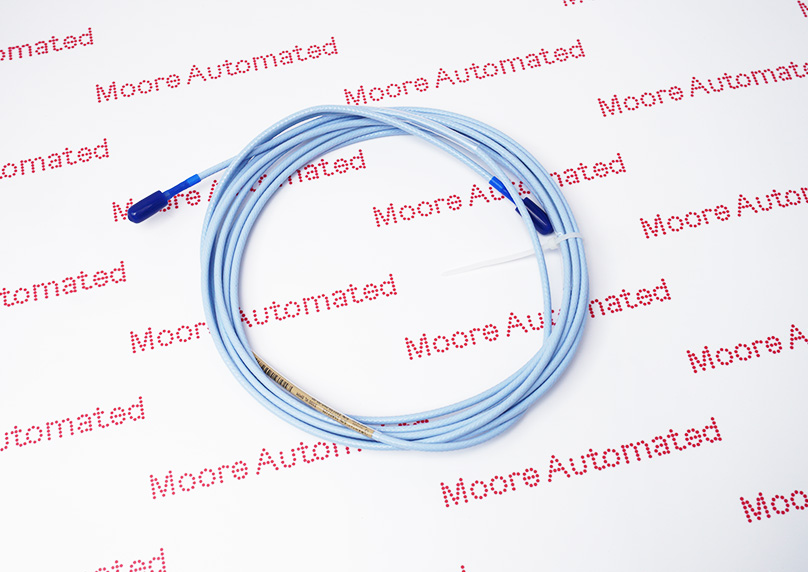

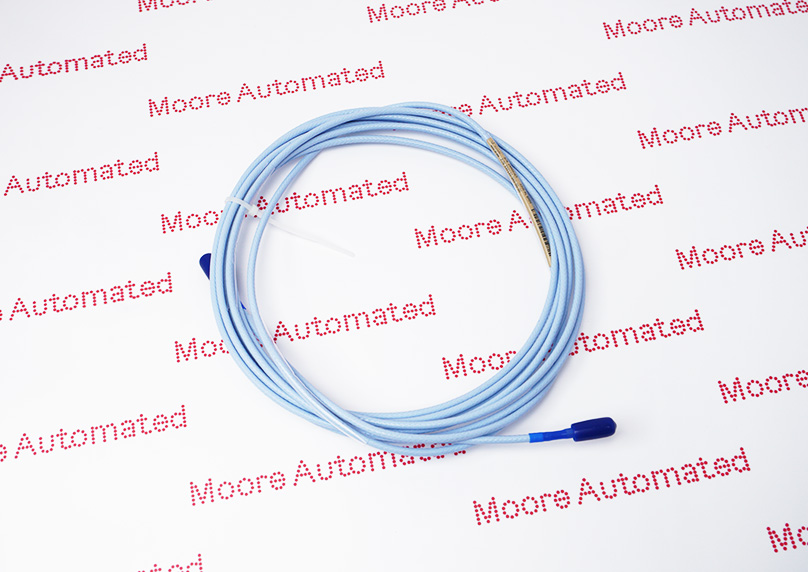

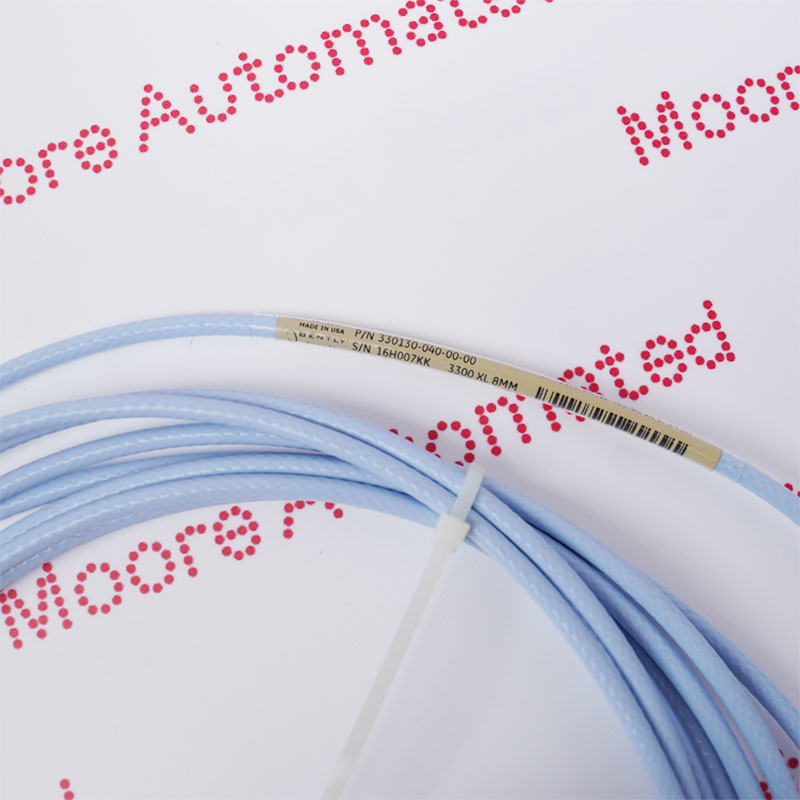

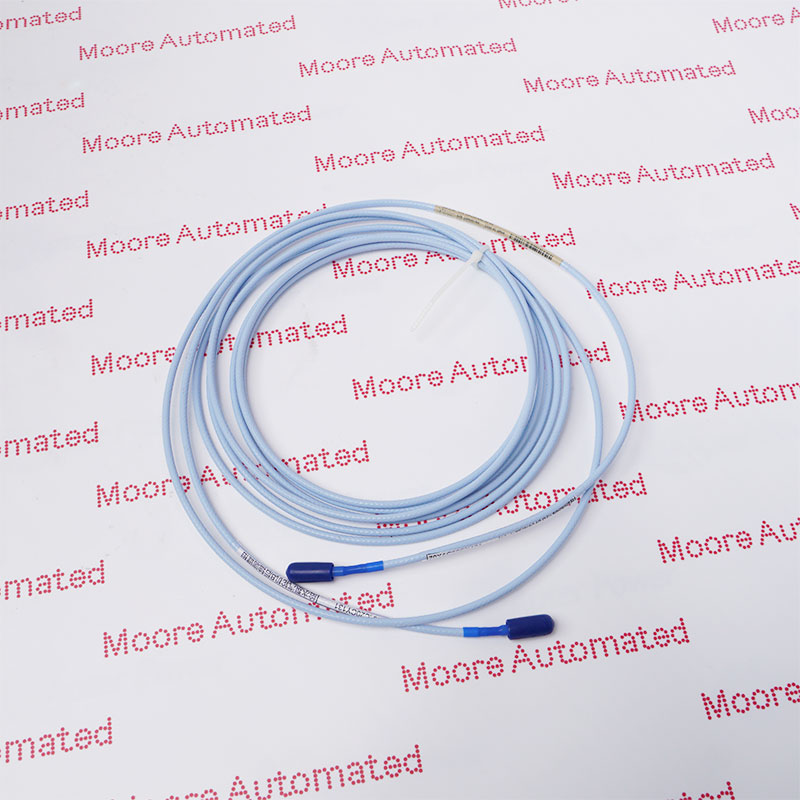

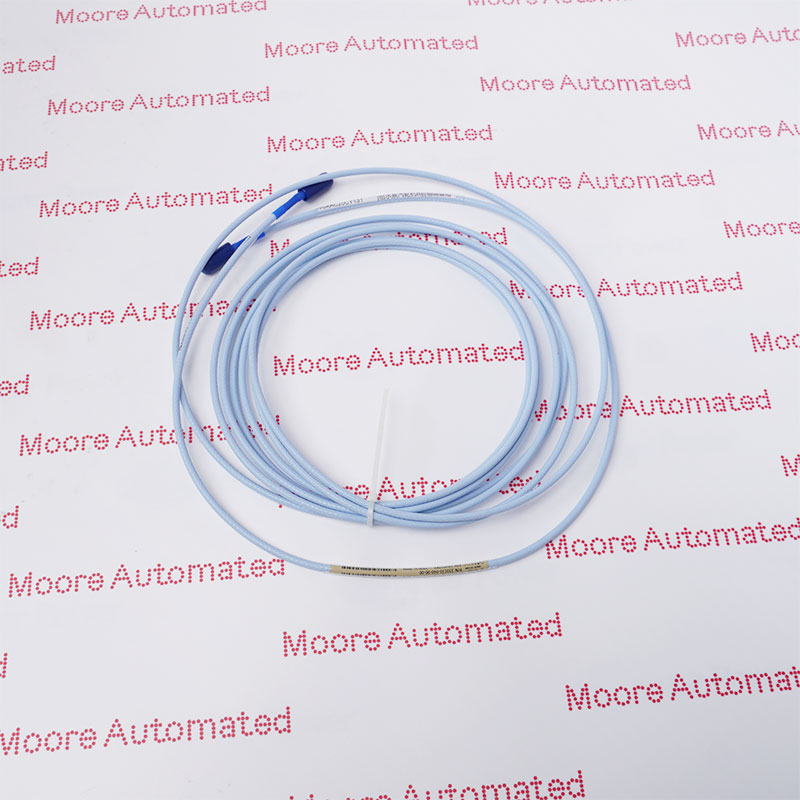

330130-040-00-00 is a 4.0 m standard extension cable for a matched Bently Nevada 3300 XL 8 mm proximity transducer system. The order code identifies the documented cable length, standard cable construction and no agency-approval option; it is not an interchangeable generic coaxial lead.
Before replacement, record the probe, extension cable and Proximitor Sensor part numbers, total system length, routing, bend radius and connector condition. Reconnect the complete matched chain, verify bias voltage and compare the monitor response with the machine baseline before restoring protection functions.
The manufacturer classifies this legacy product family as obsolete or discontinued. Moore Automated may still supply the exact item subject to stock, condition and complete identity verification.
Bently Nevada 330130-040-00-00 Extension Cable Manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
330130-040-00-00 is a 4.0 m standard extension cable for a matched 3300 XL 8 mm proximity transducer system. Its order code specifies 4.0 m cable length, standard cable construction and no agency-approval option.
The order-code fields must be read together. Confirm Matched ClickLoc interfaces mounting, Not applicable case definition, 4.0 m (11.5 ft) total cable length and the exact connector option.
The probe, extension cable and Proximitor Sensor must form the documented total system length. Published performance applies to compatible components and the specified target material under official test conditions.
Do not approve a substitution from appearance alone. Compare every connected part number, cable route, target, monitor-channel setup and calibration record.
Before removal, record the installed gap, mounting depth, cable routing, connector condition, Proximitor Sensor identity and channel settings.
After installation, verify bias voltage, slow-roll runout, vibration response and alarm-channel behavior before returning the machine to service.
