Features:
- The documented value for probe configuration is Standard mount; retain this specification when matching the exact 5 mm proximity probe and installed Bently Nevada 3300 hardware.
- The documented value for probe case thread is 1/4-28 UNF; confirm the installed mounting interface, available reach and mechanical clearance before replacement.
- The documented armor configuration is Without armor; preserve this construction together with the complete order code and cable-routing requirements.

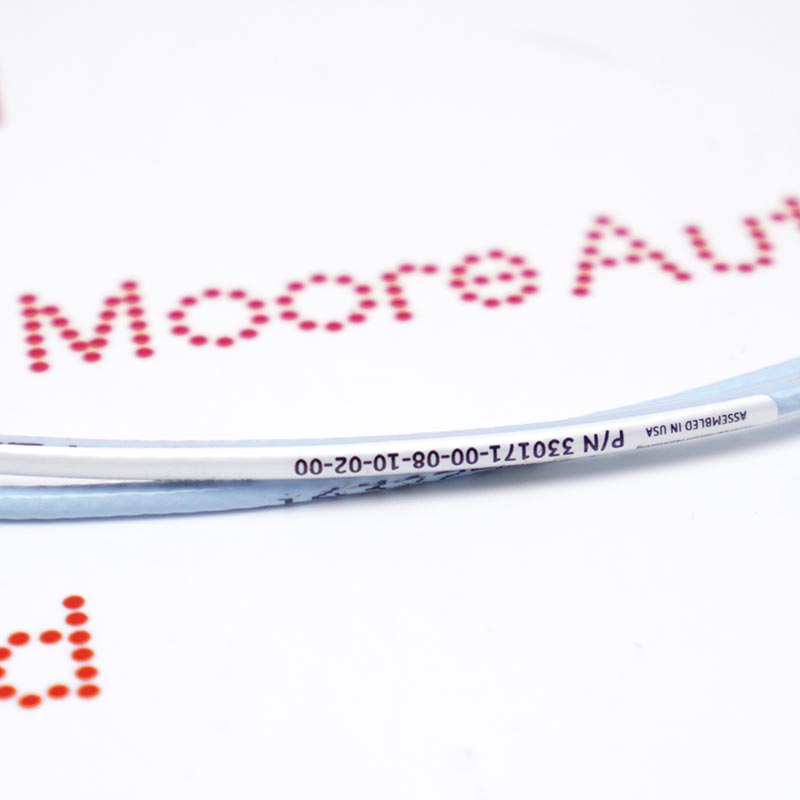

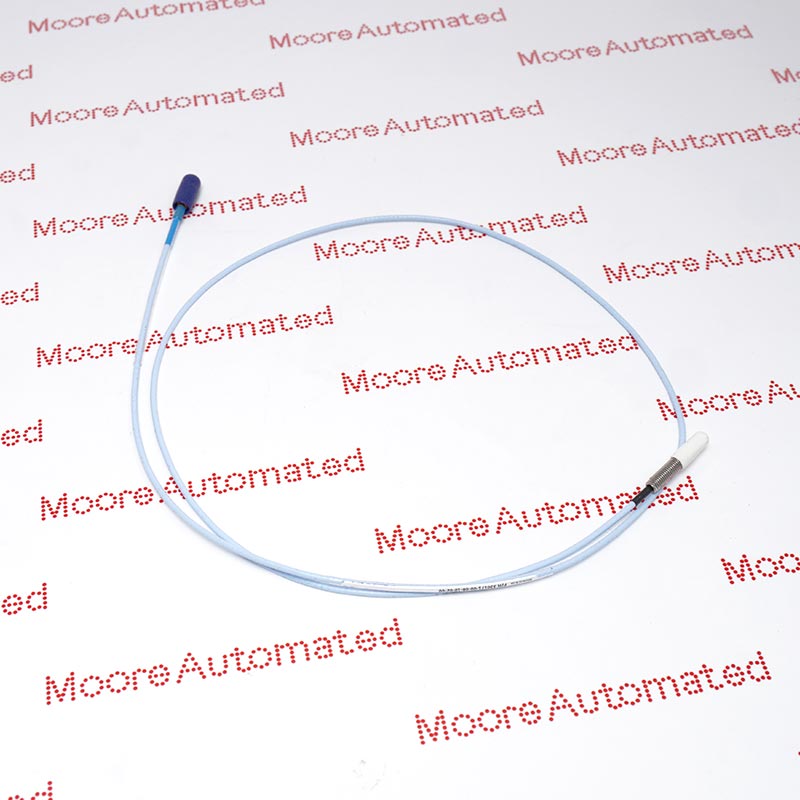

330171-00-08-10-02-00 is a Bently Nevada 5 mm proximity probe for the 3300 system. It measures shaft vibration or position without contact in a matched transducer chain. Key specifications: Probe configuration: Standard mount; Probe case thread: 1/4-28 UNF. Match the full order code and hardware before replacement.
Use 330171-00-08-10-02-00 only with the correct 3300 5 mm Proximitor Sensor and system length. Verify the 1/4-28 thread engagement, narrow tip clearance, one-metre lead and option-02 ClickLoc connection before installation. Keep the cable above its 25.4 mm bend radius, prevent contact with the target and set the operating point from live gap voltage. The 00 suffix is a no-approval configuration and must not replace an approved probe in a hazardous-area loop without an engineering review.
The 330171-00-08-10-02-00 Bently Nevada 5 mm proximity probe may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330171-00-08-10-02-00 5 mm proximity probe manual (Datasheet), Link
Important Notice: Confirm the complete order code, hardware execution and connected system before replacement. Accessories, cables, calibration data, software and certificates are included only when stated in the written quotation.
Preserve every option block of 330171-00-08-10-02-00. Retained facts: Probe configuration: Standard mount; Probe case thread: 1/4-28 UNF; Lead armor: Without armor. Mechanical length, thread, cable/connector and approval suffixes are part of the exact probe identity.
Match probe family, electrical length, extension cable and Proximitor Sensor. Confirm target material, available travel, nearby probe spacing and mounting geometry before exchange.
Set the operating gap from live bias voltage, support the cable above its bend limit and verify runout, vibration or position response against the commissioning baseline.
