Features:
- Designed for 3300 XL applications where the extension cable can be exposed to temperatures up to 260°C (500°F).
- The 085 configuration provides a nominal 8.5 m (27.9 ft) extension length for the proximity transducer system.
- The 05 option provides CSA, ATEX, and IECEx approvals for applicable installation environments.

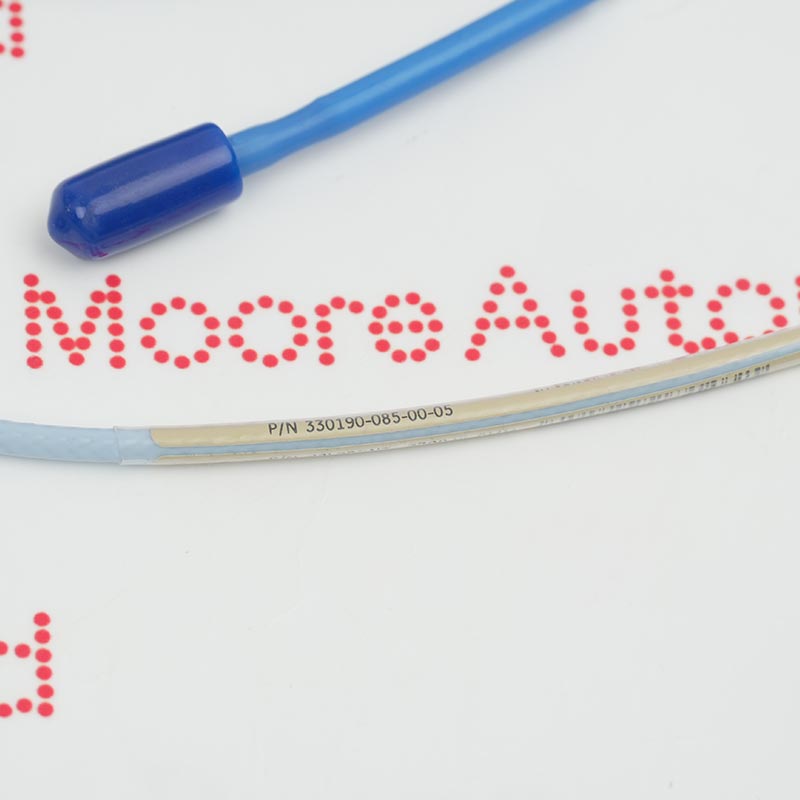

The Bently Nevada 330190-085-00-05 is a 3300 XL Extended Temperature Range (ETR) extension cable designed for use as part of the 3300 XL 8 mm proximity transducer system. This specific configuration features a nominal cable length of 8.5 meters (27.9 feet); the "00" indicates the standard ETR cable configuration, while the "05" specifies CSA, ATEX, and IECEx certifications.
Within the complete eddy-current measurement system, this cable establishes the electrical connection between a compatible proximity probe and the Proximitor sensor. Bently Nevada notes that the 3300 XL 8 mm system is used to measure static shaft displacement and dynamic vibration, with applications also extending to Keyphasor reference signals and rotational speed measurements.
The 330190-085-00-05 Bently Nevada 3300 XL Extended Temperature Range(ETR) Extension Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330190-085-00-05 3300 XL Extended Temperature Range (ETR) Extension Cable Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
When specifying 330190-085-00-05, the 8.5 m extension length should be considered together with the probe length and Proximitor Sensor configuration rather than selected independently. Bently Nevada specifies that the extension-cable length plus the probe length must equal the required total system length of the Proximitor Sensor, so the existing probe and sensor configuration should be checked before ordering a replacement.
The 330190-085-00-05 is intended for the 3300 XL 8 mm proximity transducer system and should be paired with compatible system components according to the required total system length and application temperature. Bently Nevada states that compatible 3300 XL probes, extension cables, and Proximitor Sensors are fully interchangeable, allowing replacement of individual components without the traditional requirement for matched or bench-calibrated sets.
For maintenance applications, the exact 085-00-05 configuration should be verified against the existing cable before substitution because cable length, ETR construction, and approval configuration are all part of the ordering code. This is particularly important when replacing a cable in an existing 3300 XL system where the installation has elevated-temperature exposure or hazardous-area certification requirements.
