Heat-Resistant Cable
System Compatibility
Signal-Chain Setup
Features:
- The documented value for incremental scale factor is 7.87 V/mm; use this value when checking the monitor configuration, operating limits and expected measurement response.
- The documented value for frequency response is 0 to 10 kHz; use this value when checking the monitor configuration, operating limits and expected measurement response.
- The documented value for probe cable specifications is 75 Ω coaxial; verify the connector interface, electrical length and matching 3300 signal-chain components before commissioning.

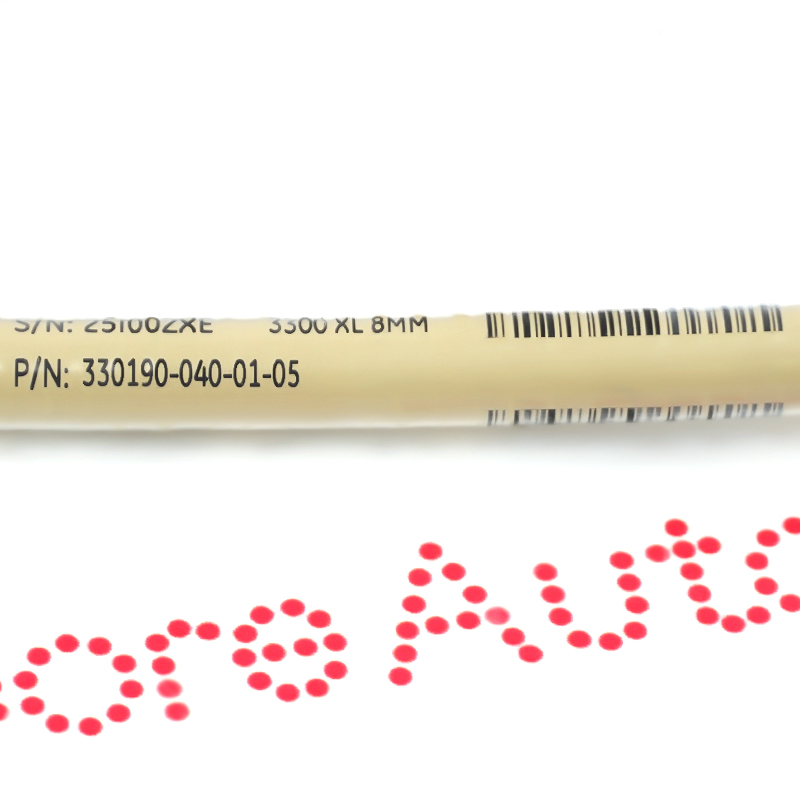

330190-040-01-05 is a Bently Nevada 3300 XL ETR Extension Cable for the 3300 system. It connects the probe to a compatible Proximitor Sensor. Key specifications: Incremental Scale Factor: 7.87 V/mm; Frequency Response: 0 to 10 kHz. Match the full order code and hardware before replacement.
Confirm the complete 330190-040-01-05 order code, installed signal chain, mounting arrangement and commissioning record before replacement.
The exact 330190-040-01-05 execution must be confirmed by its complete order code, condition, connected 3300 system and included scope before purchase or replacement.
Bently Nevada 330190-040-01-05 3300 XL ETR Extension Cable manual (Datasheet), Link
Important Notice: Confirm the complete order code, hardware execution and connected system before replacement. Accessories, cables, calibration data, software and certificates are included only when stated in the written quotation.
Review 330190-040-01-05 by complete length and construction code. Retained facts: Incremental Scale Factor: 7.87 V/mm; Frequency Response: 0 to 10 kHz; Probe Cable Specifications: 75 Ω coaxial. Do not change the calibrated total system length when replacing an extension or integral lead.
Match every connector, protector, armor or FluidLoc option and the receiving probe/Proximitor Sensor. Route the cable without sharp bends, crushing, connector side-load or contamination.
Inspect continuity and insulation where applicable, seat the connectors, compare channel bias with the recorded value and confirm stable vibration or position response before release.
