Features:
- Exact 16925-60 cable length: 60 ft (18.3 m approximate).
- Three shielded 22 AWG (0.5 mm²) conductors; armored construction: no.

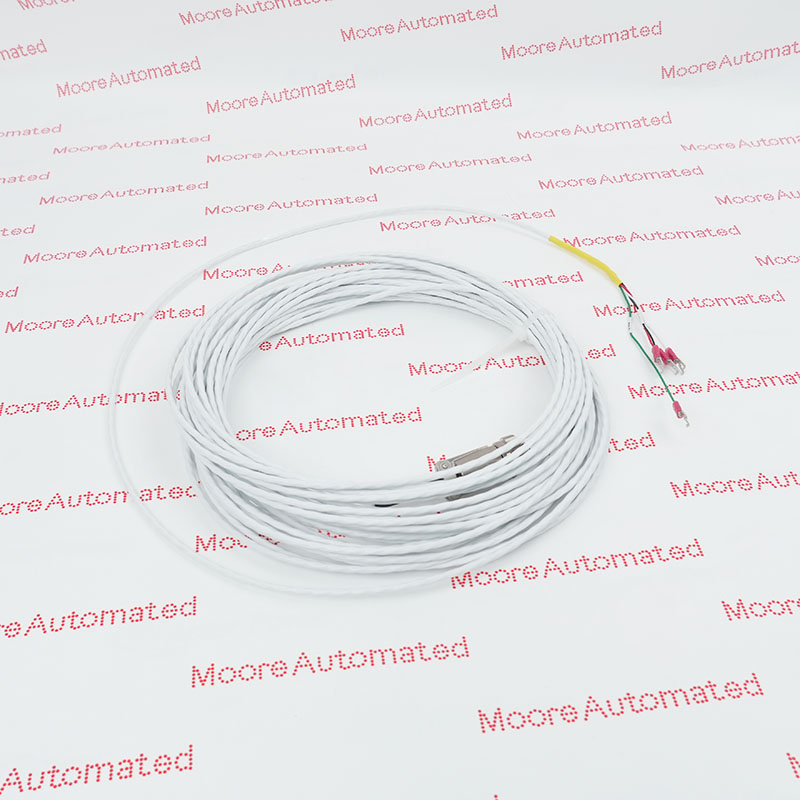

- Three-socket accelerometer plug at one end and terminal lugs at the monitor end.

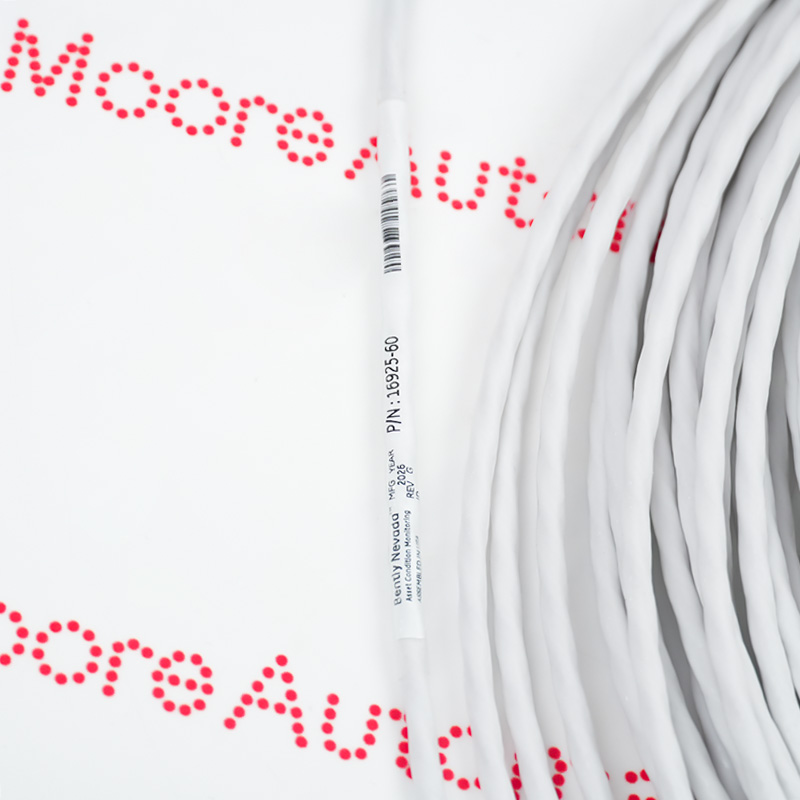

The 16925-60 is the 60 ft (18.3 m) execution of Bently Nevada cable family 16925 for 330400 and 330425 accelerometers. It contains three shielded 22 AWG (0.5 mm²) conductors, with a three-socket plug at the accelerometer end and terminal lugs at the monitor end.
The official ordering range for this construction is 2 ft (0.6 m) through 99 ft (30 m), in 1 ft increments. Armored construction is no; standard shielded cable construction. Before replacement, match the full part number and measured route, inspect plug contacts, shield continuity, armor or boot condition and terminal-lug identification, then verify the connected accelerometer bias and signal at the monitor.
The 16925-60 Bently Nevada Shielded accelerometer interconnect cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 16925-60 documentation and reference links.
Important Notice: The official 141638 Rev. AB datasheet defines the 330400 accelerometer and 130539, 16925 and 16710 cable ordering families. Confirm the complete part number, supplied marking, receiving hardware and required accessories before replacement.
16925-60 uses three shielded 22 AWG (0.5 mm²) conductors. Armored construction is no; the exact cable family and ordered 60 ft length must be preserved when routing through the installed protection or conduit arrangement.

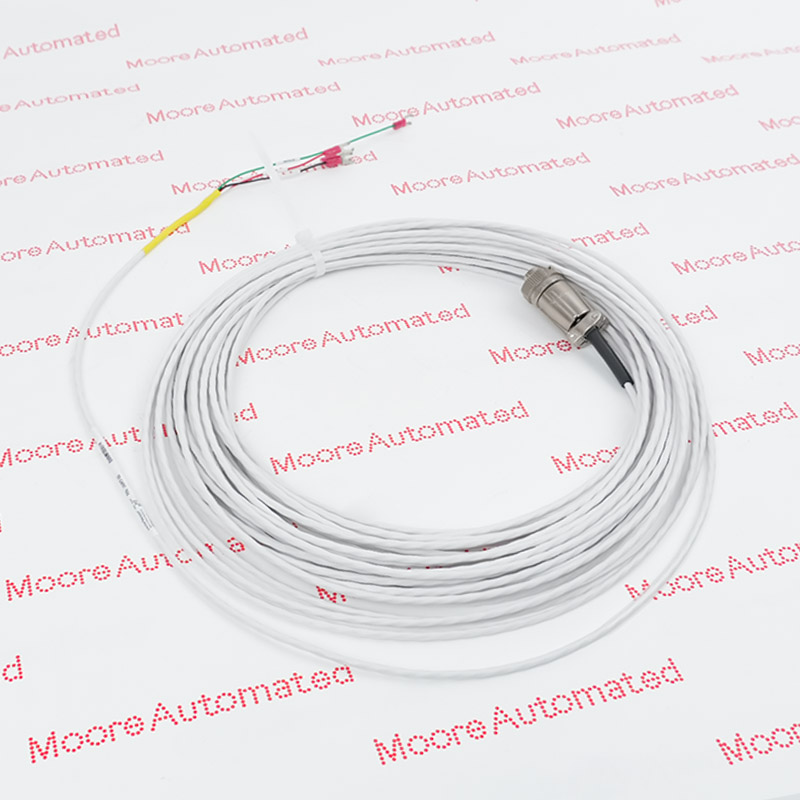

The three-socket plug mates with the documented 330400/330425 accelerometer interface, while the opposite end uses terminal lugs. Verify plug keying, contact condition, conductor identification and shield termination before landing the monitor end.
Confirm the required route against the 60 ft (18.3 m) order length without stretching, sharp bends or unsupported strain. After termination, inspect continuity and insulation, then verify sensor bias and vibration signal at the receiving monitor.
