Features:
- Eddy Current Sensor for the documented Emerson DeltaV.
- Sensor Type: PR6423.
- Measuring Range: 2.0mm (Standard Range).

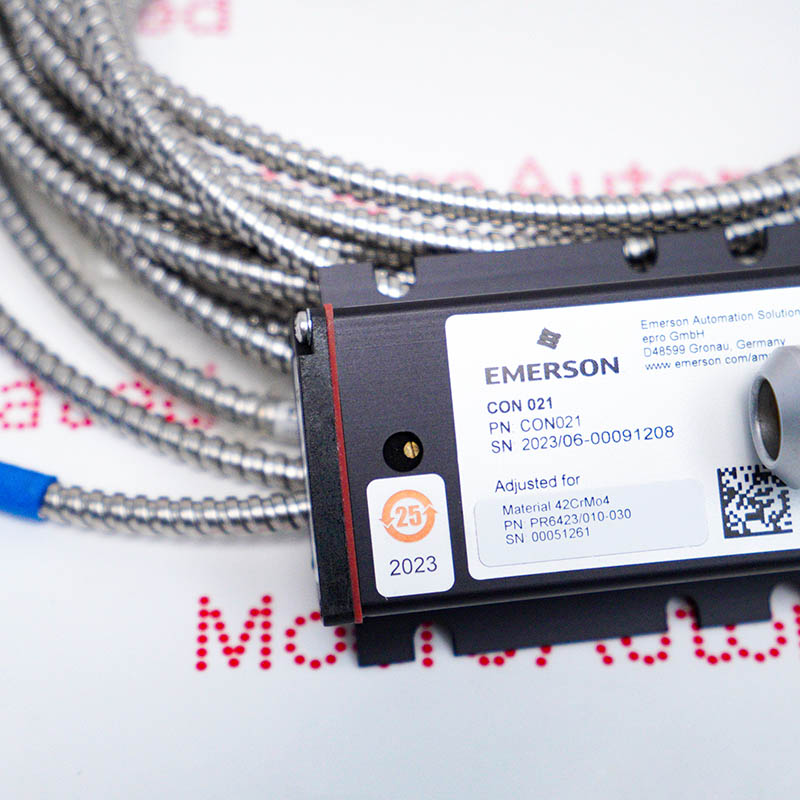

PR6423/010-030 CON021 belongs to the Emerson DeltaV and performs the documented eddy current sensor role in the Emerson DeltaV distributed control system. The retained technical evidence records Sensor Type: PR6423; Measuring Range: 2.0mm (Standard Range); Linearity Error: ≤ 1.0%. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Emerson DeltaV receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The PR6423/010-030 CON021 Eddy Current Sensor is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Emerson PR6423/010-030 CON021 Eddy Current Sensor Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Sensing Method: PR6423/010-030 CON021 performs the eddy current sensor function within the Emerson DeltaV. The retained documentation identifies sensor type as PR6423; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Platform Match: approve PR6423/010-030 CON021 only for the documented Emerson DeltaV distributed control system. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Final Checks: isolate the equipment, remove stored energy and inspect the receiving hardware before installing PR6423/010-030 CON021.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
