Features:

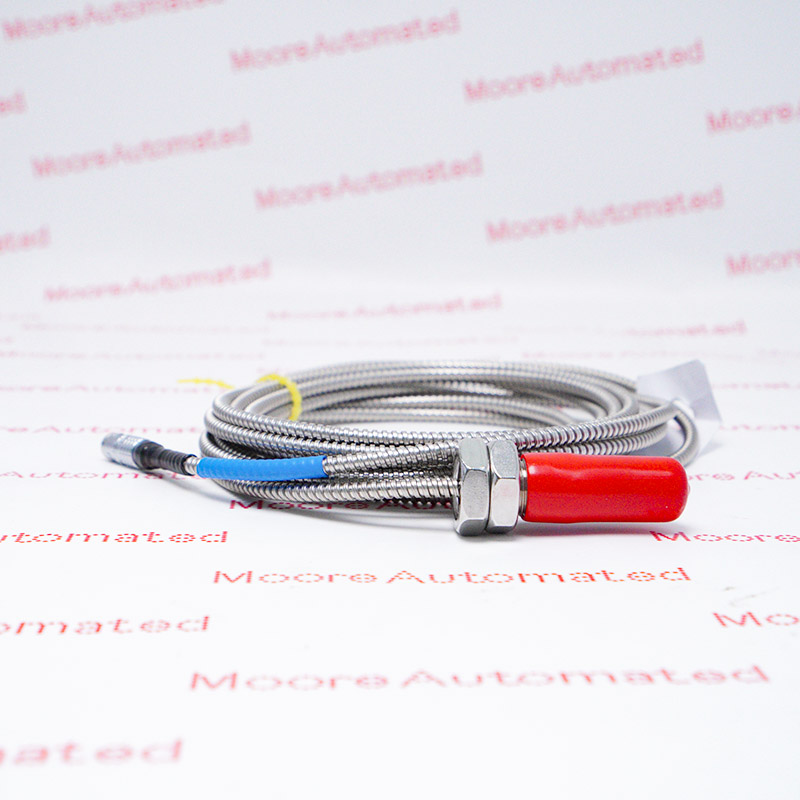

- 16mm Eddy Current Sensor for the documented Emerson EPRO PR 642x.
- Sensitivity/Linearity: 4 V/mm (101.6 mV/mil) ≤ ±1.5%.
- Measuring Range: 4.0mm (Standard Range).

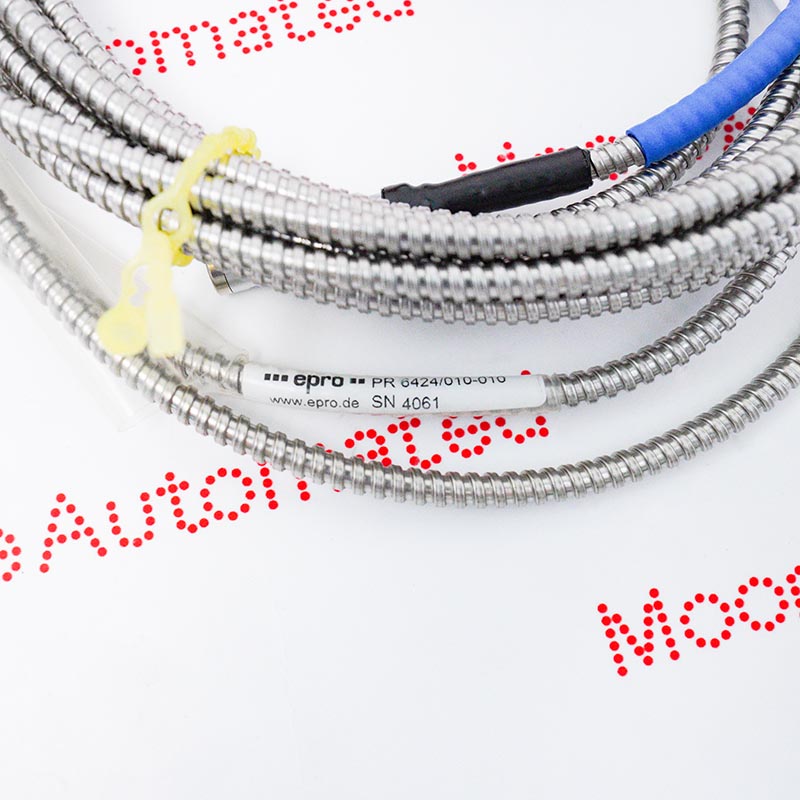

PR6424/010-010 belongs to the Emerson EPRO PR 642x and performs the documented 16mm eddy current sensor role in the Emerson EPRO eddy-current measurement chain. The retained technical evidence records Sensitivity/Linearity: 4 V/mm (101.6 mV/mil) ≤ ±1.5%; Measuring Range: 4.0mm (Standard Range); Linearity Error: ≤ 1.5%. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Emerson EPRO PR 642x receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The PR6424/010-010 16mm Eddy Current Sensor is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Emerson PR6424/010-010 16mm Eddy Current Sensor Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Sensor Setup: PR6424/010-010 performs the 16mm eddy current sensor function within the Emerson EPRO PR 642x. The retained documentation identifies sensitivity/linearity as 4 V/mm (101.6 mV/mil) ≤ ±1.5%; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Architecture Fit: approve PR6424/010-010 only for the documented Emerson EPRO eddy-current measurement chain. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Site Testing: isolate the equipment, remove stored energy and inspect the receiving hardware before installing PR6424/010-010.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
