Features:
- Current: Supports the documented 4-20 mA rating when installed in the approved GE Mark VIe configuration.
- Input converter resolution: Provides 16-bit A/D converter with 14-bit resolution for the verified control, monitoring or diagnostic duties assigned to IS200VAICH1D.
- Power consumption: Supports the documented Less than 31 MW rating when installed in the approved GE Mark VIe configuration.

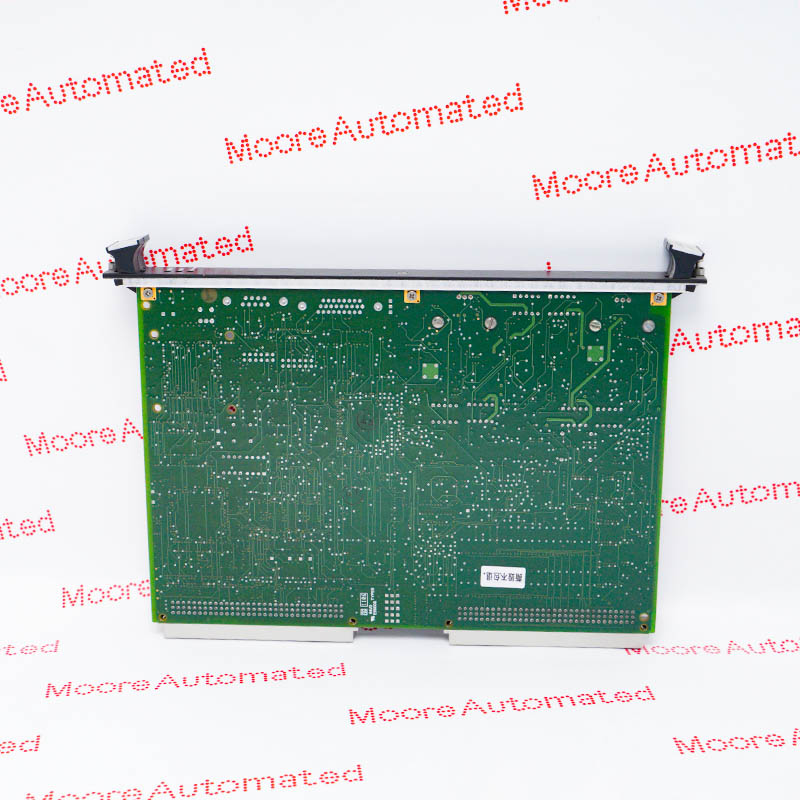

The IS200VAICH1D General Electric analog input board plays a defined role in industrial automation and receives documented field signals and transfers their states or measured values to the control system within the GE Mark VIe platform. Its documented execution helps the control system maintain dependable operation while reducing the risk of mismatched connectors, channel assignments, ratings and hardware revisions during maintenance.
Before installing IS200VAICH1D, compare the complete product label, terminal or connector arrangement, paired assemblies, firmware or logic requirements and approved project records. After replacement, review diagnostics and function-test every affected control, protection, communication or field-signal path before returning the equipment to service.
The IS200VAICH1D General Electric Analog Input Board is identified as Active / Available from OEM. Current availability, revision and supplied scope are confirmed in the written quotation.
General Electric IS200VAICH1D documentation and reference links.
Important Notice: The linked information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.

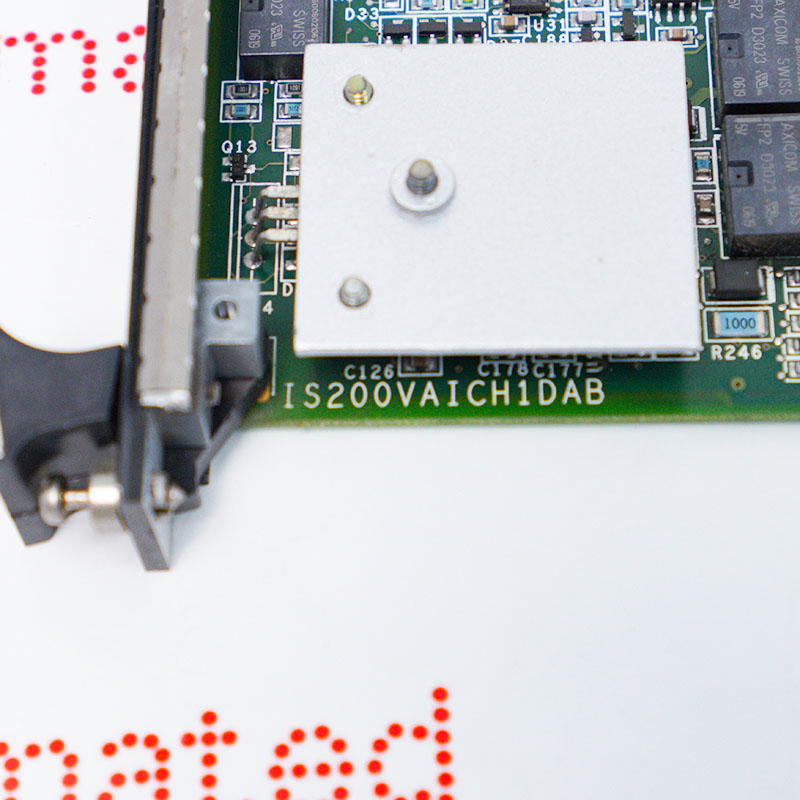

Verify that the supplied item is marked IS200VAICH1D and that its analog input board form, connectors and revision agree with the approved GE Mark VIe receiving record.
For IS200VAICH1D, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact IS200VAICH1D record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
