Features:
- Analog Output Module for the documented GE Mark V / Mark VIe Speedtronic.
- Number of Channels: 8 Current Output Channels.
- Compatibility: TBAOH1C/STAOH1B.
IS220PAOCH1B belongs to the GE Mark V / Mark VIe Speedtronic and performs the documented analog output module role in the GE Speedtronic turbine-control architecture. The retained technical evidence records Number of Channels: 8 Current Output Channels; Compatibility: TBAOH1C/STAOH1B; PCB Coating: Conformal Coating. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the GE Mark V / Mark VIe Speedtronic receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The IS220PAOCH1B Analog Output Module is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
GE IS220PAOCH1B Analog Output Module Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Signal Handling: IS220PAOCH1B performs the analog output module function within the GE Mark V / Mark VIe Speedtronic. The retained documentation identifies number of channels as 8 Current Output Channels; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Platform Review: approve IS220PAOCH1B only for the documented GE Speedtronic turbine-control architecture. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.

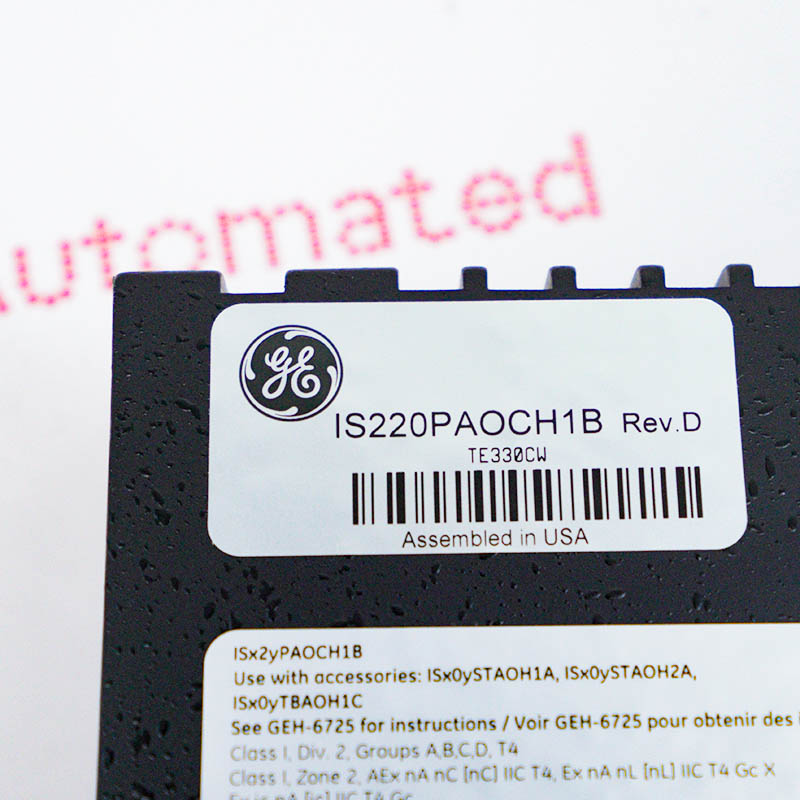

Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Functional Test: isolate the equipment, remove stored energy and inspect the receiving hardware before installing IS220PAOCH1B.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
