Features:
- Current supv. dropout: Supports the documented 97 to 98% of pickup rating when installed in the approved GE Multilin configuration.
- Time accuracy: The documented control processor unit specification is ±3% or ±20 ms, whichever is greater; verify it against the supplied nameplate before installation.
- Operate time: The documented control processor unit specification is < 30 ms at 1.10 × Pickup at 60 Hz; verify it against the supplied nameplate before installation.

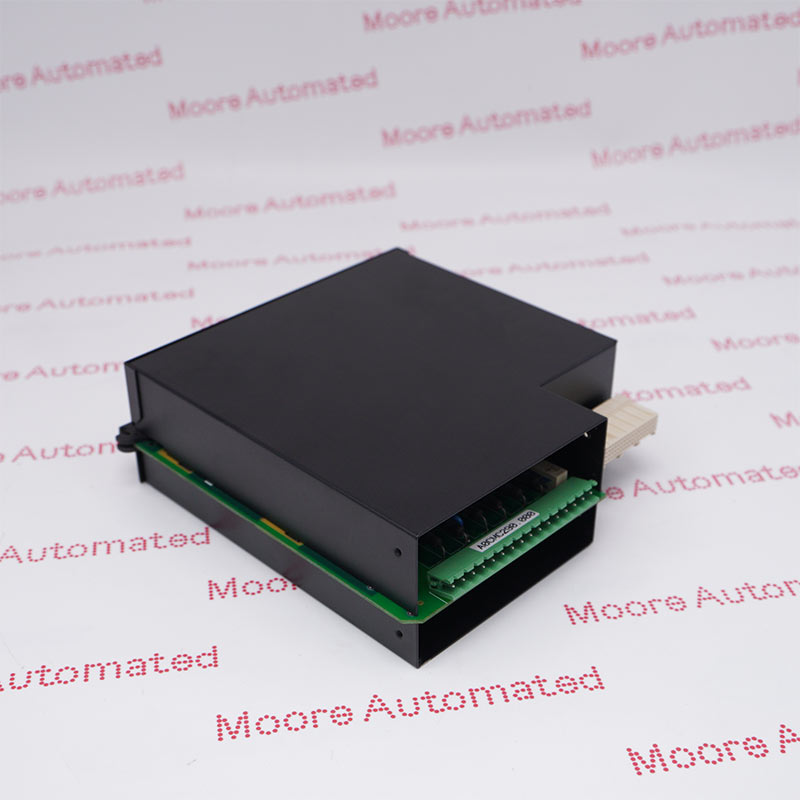

The UR9AH General Electric control processor unit plays a defined role in industrial automation and executes the documented controller, configuration and communication duties for the installed system within the GE Multilin platform. Its documented execution helps the control system maintain dependable operation while reducing the risk of mismatched connectors, channel assignments, ratings and hardware revisions during maintenance.
Before installing UR9AH, compare the complete product label, terminal or connector arrangement, paired assemblies, firmware or logic requirements and approved project records. After replacement, review diagnostics and function-test every affected control, protection, communication or field-signal path before returning the equipment to service.
The UR9AH General Electric Control Processor Unit may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric UR9AH documentation and reference links.
Important Notice: The linked information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.

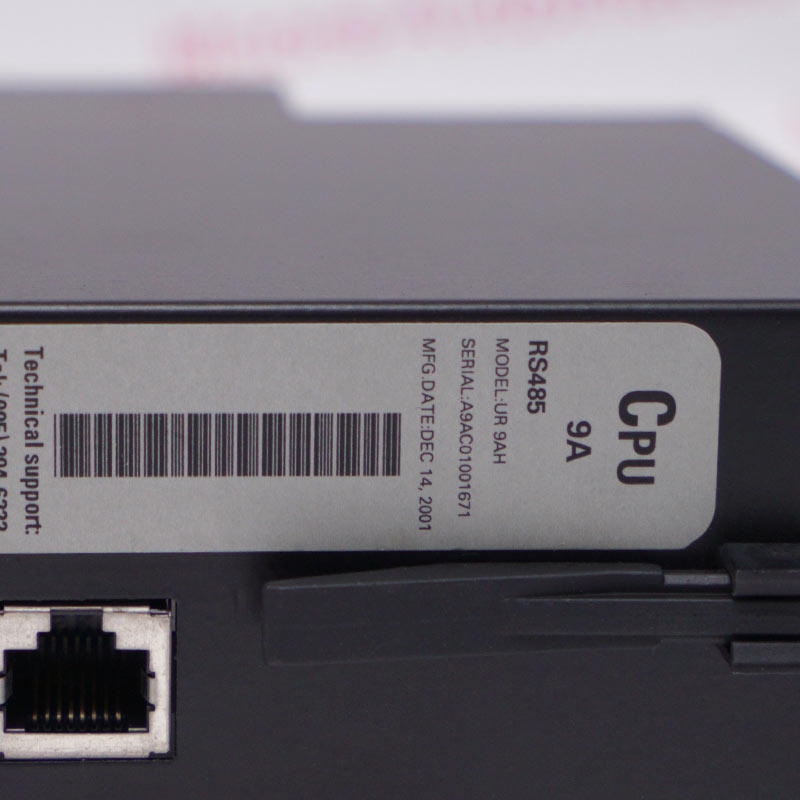

Verify that the supplied item is marked UR9AH and that its control processor unit form, connectors and revision agree with the approved GE Multilin receiving record.
For UR9AH, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact UR9AH record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
