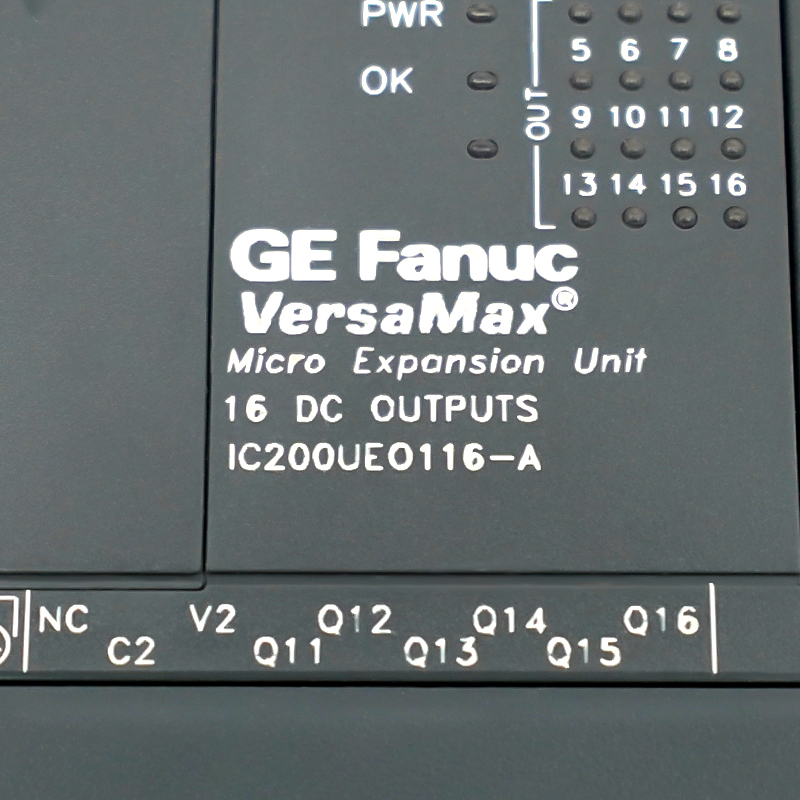

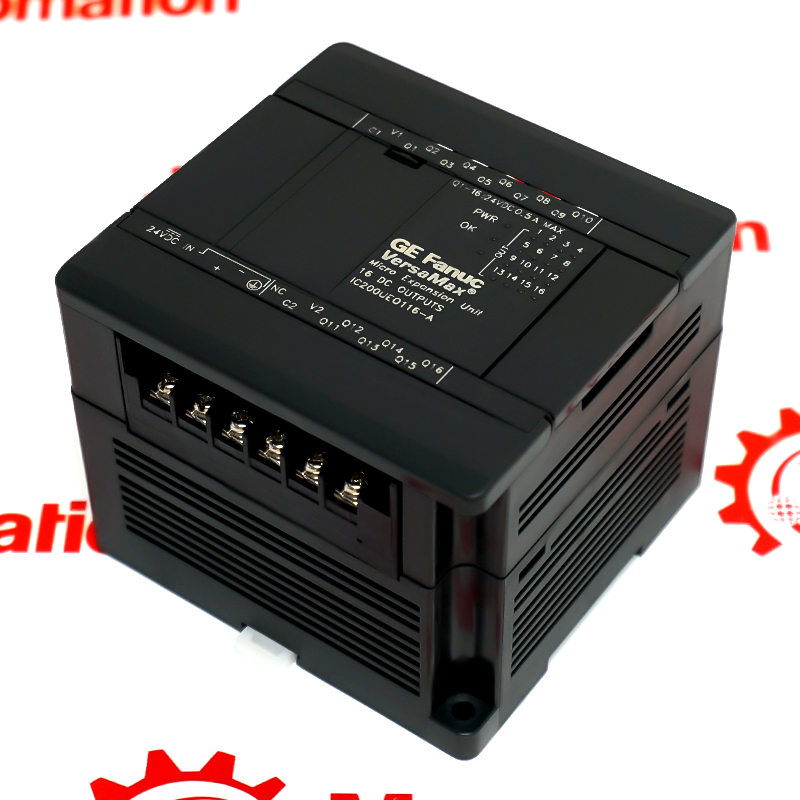

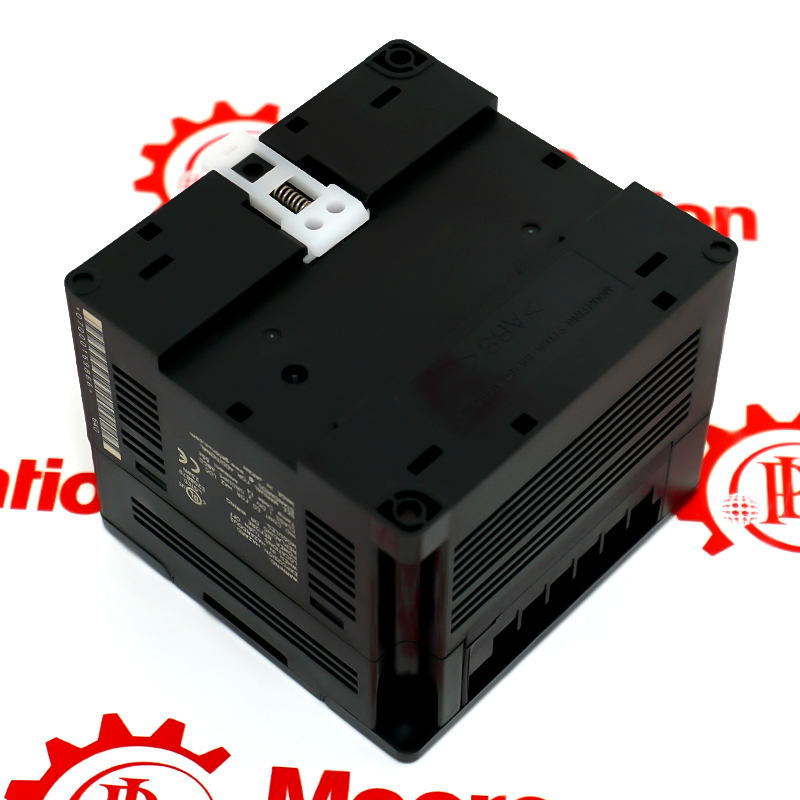

      IC200UEO116

      VersaMax Micro Expansion 16 Output Expansion (16) 24VDC Sink Outputs, 24VDC Power Supply (includes IC200CBL501)
      In Stock
      Ships by Tuesday, June 23
      Fast Shipping Available

      Product Information:

      24VDC Power Supply
      16 Point Expansion Unit
      Sixteen sink-type DC transistor output circuits
      require +24VDC nominal input power
      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for IC200UEO116

      • Manufacturer:
        General Electric
      • Product Category:
        PLC System
      • Estimated shipping dimensions:
        9.4x9.3x7.5cm
      • Weight:
        0.26 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Range:
        24 –20%/+25% VDC
      • External power supply:
        10-30VDC required to power the outputs.
      • Input Current:
        0.16 A typical at 24 VDC
      • Input Power Supply Rating:
        4W
      • Maximum Inrush Current:
        5.6 Amps
      • Stock:
        40
      Ask for Quote

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What is the fundamental architectural role of the IC200UEO116 within a VersaMax Micro automation topology?
        The IC200UEO116 serves as a dedicated expansion module engineered to extend the output capacity of a VersaMax Micro PLC system by providing 16 sink‑type DC transistor output circuits for external device actuation.
      • How does the transistor output topology of the IC200UEO116 influence load driving performance and integration complexity?
        The IC200UEO116’s sink‑type transistor outputs are designed to switch positive voltage loads efficiently, allowing them to interface with a broad range of inductive and resistive actuators while protecting the controller logic.
      • In what manner must external power and protective circuitry be provisioned to ensure optimal operation of the IC200UEO116 outputs?
        An external DC power supply in the range of approximately 10–30 VDC is required to energize the output circuits, and fast‑acting external fuses are recommended to safeguard each output against overloads or short‑circuit conditions.
      • What are the electrical and dynamic specifications that define the switching behavior of IC200UEO116 outputs?
        Each transistor output of the IC200UEO116 is rated for approximately 0.5 A per point with common loading constraints and exhibits rapid response times on the order of 0.5 milliseconds for transitions between ON and OFF states.
      • Which industrial environments and system architectures are most suited for the deployment of an IC200UEO116 module?
        The IC200UEO116 is intended for use in distributed industrial automation systems where modular expansion of output points is needed—typically in manufacturing control, process automation, and discrete motion control subsystems. Its robust DC output scheme supports interfacing with actuators, relays, indicators, and other field devices.
      • How does the IC200UEO116 ensure electrical isolation between the logic domain and the field device interface?
        The module’s transistor outputs provide a form of electrical isolation between the logic circuitry and field side power, which mitigates noise coupling and enhances overall system stability under fluctuating industrial loads.
      • What are the key considerations when integrating the IC200UEO116 into a PLC rack in terms of mechanical and signal connectivity?
        Mechanical installation involves secure mounting into the expansion section of a VersaMax Micro controller stack, and signal connectivity typically employs a multi‑pin terminal interface for organized wiring of output loads and common DC supply lines.
