Features:
- Honeywell names 8C-IP0102 as the coated Series 8 PROFIBUS Gateway Assembly.
- The gateway is a standard FTE node with two PROFIBUS DP network connections.
- The cited specification gives 24 VDC, 430 mA and 0 to 60 °C operating limits.
Honeywell's Series 8 PROFIBUS Gateway specification identifies the 8C-IP0102 module and its coated 8C-TPOXA1 IOTA. The module links PROFIBUS DP with a C300 controller through FTE and offers two DP networks per gateway. Its IOTA provides two DB9 female PROFIBUS connectors and FTE A/B CAT5e connections. Redundancy is an installation choice using a second PGM and IOTA plus the specified synchronization cable. The document lists 24 VDC, 430 mA, 0 to 60 °C operating temperature and -40 to 85 °C storage temperature. Those are module data from a January 2014 release document, not a promise of compatibility with every later Experion build.

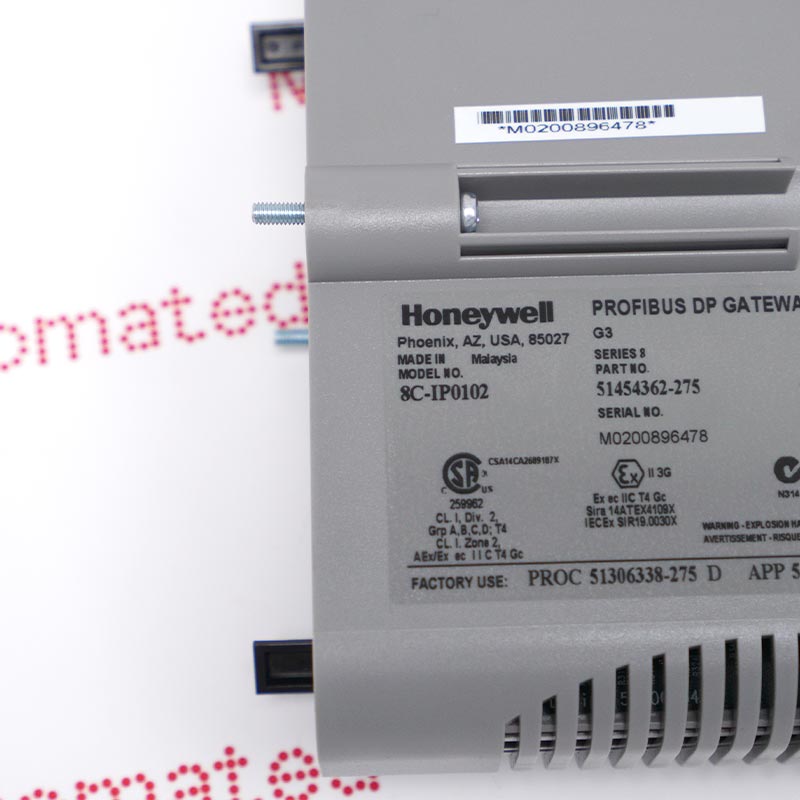

For a replacement, capture the complete unit label including the additional 51454362-275 marking because the reviewed Honeywell specification names 8C-IP0102 but does not map that number. Record the IOTA type, FTE index, PROFIBUS addresses and baud rates, connected slave configuration, whether a redundant partner exists, and the approved control-system release. Check the current Honeywell compatibility and parts record before substituting a revision or another gateway. Carry out any removal or restoration under site change control and the applicable release-specific instructions, then verify FTE status, both DP networks, slave diagnostics, redundancy where installed and affected control functions.
The 8C-IP0102 51454362-275 Honeywell Series 8 PROFIBUS Gateway Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 8C-IP0102 51454362-275 official technical documentation and product links.
This multi-page Honeywell technical document contains the exact model and its technical data. Apply the values to the supplied type number and verify its revision before installation.
Honeywell's model table identifies 8C-IP0102 as a coated Series 8 PROFIBUS Gateway Assembly and 8C-TPOXA1 as its coated IOTA. The function is PROFIBUS DP gateway integration with C300 over FTE, not a general-purpose 16-channel I/O card. The manufacturer's January 2014 specification does not map the website's additional 51454362-275 number; compare the physical label and authoritative parts record before treating both identifiers as an exact match.
The gateway supports two PROFIBUS DP networks per module and appears on FTE as a standard node. The manufacturer's redundant arrangement uses two gateway modules, two IOTAs and an interconnecting synchronization cable. A single supplied module must not be described as a complete redundant system. Check both DP network addresses, cabling, FTE index and slave configuration against the installed design; deployment limits depend on the cited release and project configuration.
The 2014 Honeywell table lists a 24 VDC voltage rating, 430 mA module current, 0 to 60 °C operation and -40 to 85 °C storage for 8C-IP0102. It states a standard Series 8 cabinet and power system are required. Support of PROFIBUS features varies by release and configuration, so a current Honeywell compatibility check is needed before applying the older document to a later installation or approving a replacement revision.
