Features:
- LJ-X8080 is identified by reference distance 73 mm within the documented LJ-X8000 2D/3D laser profilers configuration.
- The official specification gives z measurement range as +/-20.5 mm, 41 mm full scale, which must be retained during selection.
- Commissioning must also preserve x width at far side (39 mm) and the stated connection limits.
A blue-laser profile sensor head with a 73 mm reference distance, 41 mm height span and up to 39 mm width range. It acquires 3200 profile points with single-shot HDR and is intended for high-resolution inline 2D and 3D surface measurement through a compatible LJ-X controller. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official LJ-X8000 2D/3D laser profilers documentation.
Moore Automated supports exact-item verification and spare-part enquiries for LJ-X8080.
No public single-model PDF was located for LJ-X8080; use the verified related internal resource before requesting exact documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete LJ-X8080 identity and compare reference distance, z measurement range and x width at far side with the installed design before approving a replacement.
Use with a documented LJ-X8000 controller/input arrangement and approved CB-B head or extension cable. Controller mode, connected head pairing, laser safety and the 39 mm by 41 mm measurement envelope must fit the application.

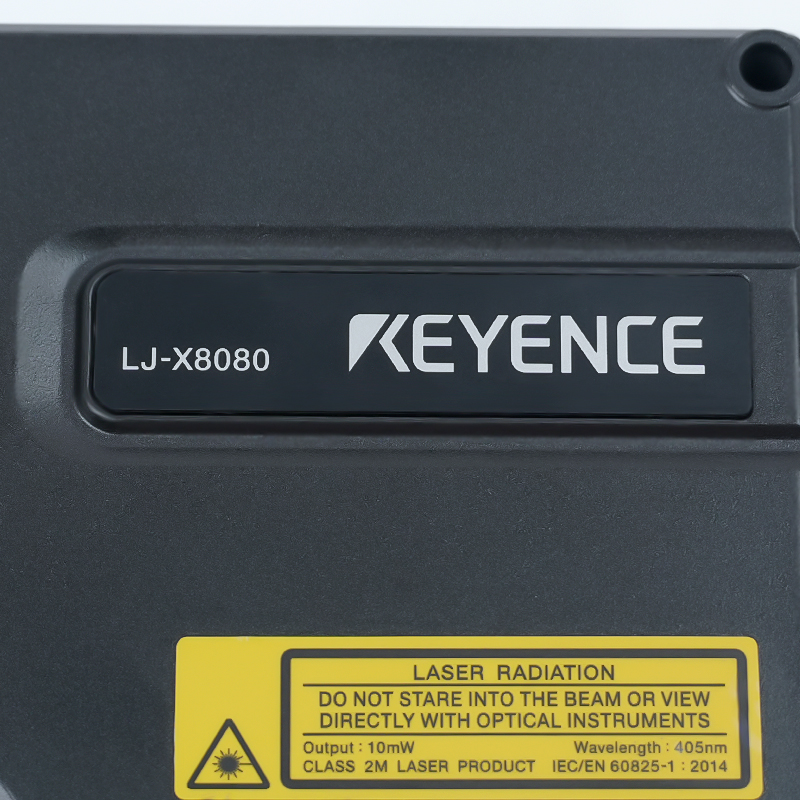

Mount the head to a metal plate at the specified geometry, avoid direct beam viewing through optical instruments, connect the approved cable and calibrate reference distance, exposure, HDR and profile tools on the validated controller program.
