Features:

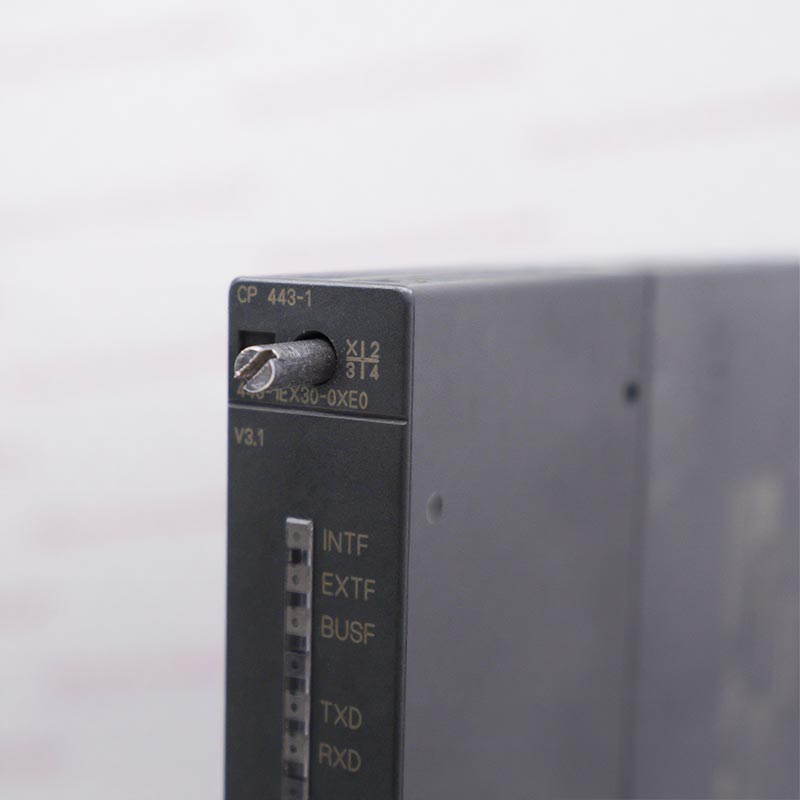

- Communications processor CP 443-1; 2x 10/100 Mbit/s (IE switch); RJ45 ports
- PROFINET IO controller; S7 communication; Open communication (SEND/ RECEIVE)
- IP Access control list; time-of-day synchronization; extended web diagnostics
Its primary function is to provide high-performance Ethernet connectivity between PLCs and industrial networks, enabling efficient data exchange with monitoring systems, engineering stations, and other controllers. By offloading communication tasks from the main PLC CPU, this module significantly improves overall system performance and allows controllers to maintain deterministic execution of control programs while independently handling network communication.
The module supports various concurrent communication connections and protocols, such as TCP/IP, ISO-on-TCP, and S7 communication. These capabilities enable integration with SCADA systems, industrial servers, and distributed control devices. Furthermore, the module provides diagnostic and monitoring functions to help engineers analyze network status, detect communication faults, and maintain reliable operation in harsh industrial environments such as manufacturing plants, energy facilities, and process industries.

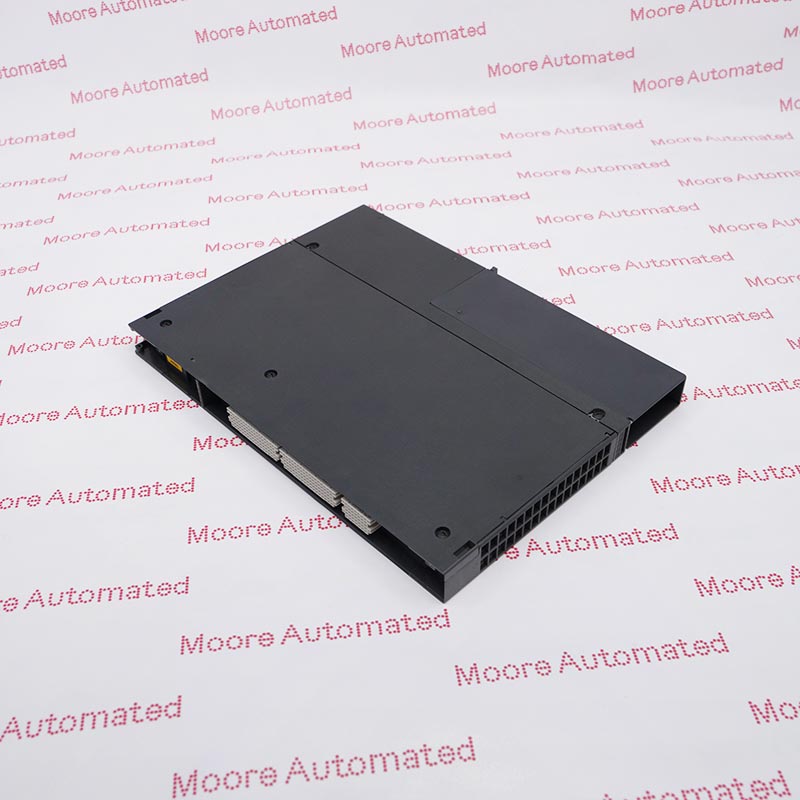

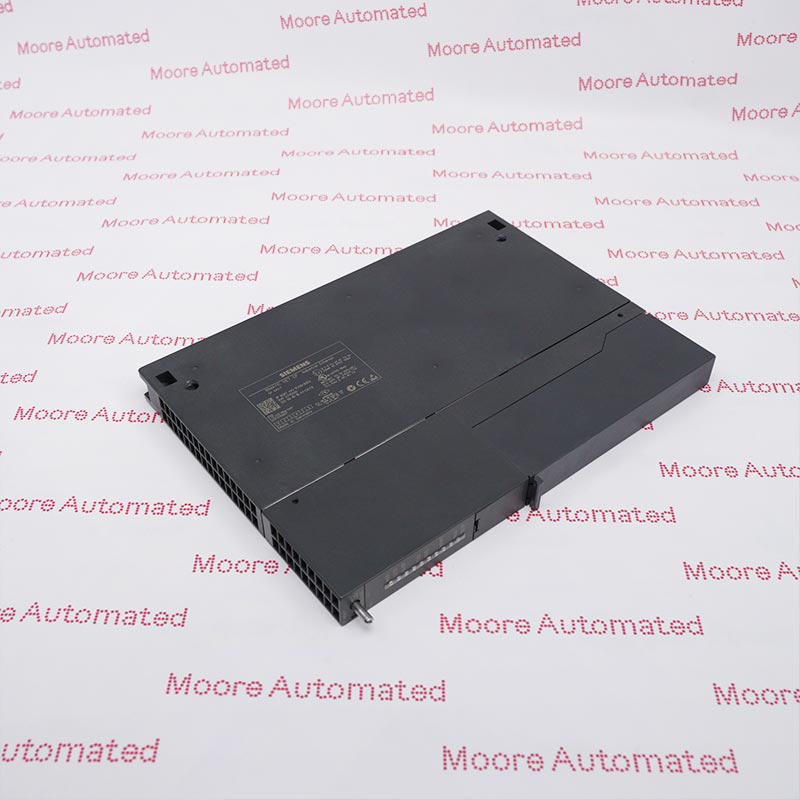

The 6GK7443-1EX30-0XE0 Siemens Communications processor module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6GK7443-1EX30-0XE0 Communications processor module datasheet(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
When installed in an S7-400 rack, this module connects to the controller via the backplane bus and manages all industrial Ethernet communication tasks. Control data, diagnostic information, and process variables are exchanged between the PLC memory and the communication processor. The communication processor encapsulates data into Ethernet communication frames and transmits them over the industrial network. Simultaneously, received network data is decoded and sent to the PLC for processing, thus enabling continuous bidirectional communication between the controller and external automation systems.
Industrial Networks: Serves as the primary bridge between the S7-400 PLC and Ethernet, enabling high-speed data exchange.
PROFINET IO Control: Acts as a PROFINET IO controller, managing distributed field devices such as I/O modules and drives.
Fault-Tolerant Systems: Compatible with SIMATIC S7-400H redundant systems, ensuring continuous operation of critical infrastructure.
Safety Applications: When used with the S7-400 F-CPU, supports PROFIsafe functionality for fail-safe automation.
