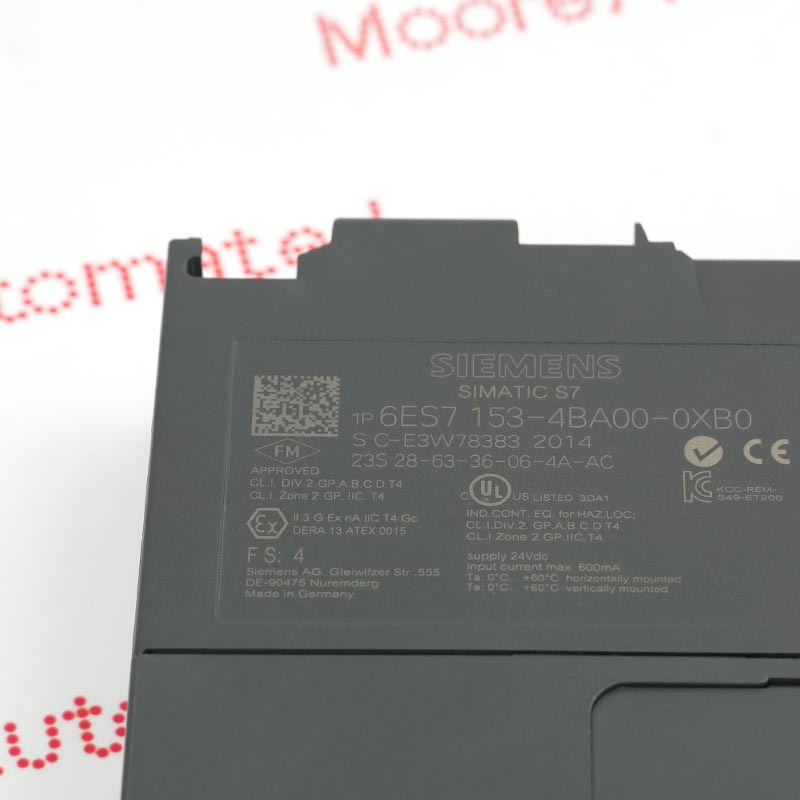

      Siemens 6ES7153-4BA00-0XB0
      Siemens 6ES7153-4BA00-0XB0
      Siemens 6ES7153-4BA00-0XB0
      Siemens 6ES7153-4BA00-0XB0
      Siemens 6ES7153-4BA00-0XB0
      Siemens 6ES7153-4BA00-0XB0

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      IM153-4 PN IO Interface Module

      6ES7153-4BA00-0XB0

      Spare Part Number

      PN6ES7153-4BA00-0XB0

      Product Information:

      SIMATIC DP, Connection ET 200M IM

      153-4 PN IO High Feature for max. 12 S7-

      300 modules, supports fail-safe module,

      HART modules, shared device, Medium

      Redundancy Protocol

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      6ES7153-4BA00-0XB0

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Siemens
      • Product Category:
        PLC and Machine Control
      • Spare Part Number:
        6ES7153-4BA00-0XB0
      • Estimated shipping dimensions:
        12.7x2.5x12.7cm
      • Weight:
        0.3 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        Germany
      • Place of shipment:
        Xiamen, Fujian, China
      • Product type designation:
        IM 153-4 PN HF
      • Rated value (DC):
        24 V DC
      • Current consumption, max.:
        600 mA; with 24 V DC supply
      • Power loss, typ.:
        6 W
      • Ambient temperature during operation:
        0°C to +60°C
      • IP degree of protection:
        IP20
      • Series:
        Siemens Simatic DP
      • Stock Availability:
        30
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      6ES71534BA000XB0 6ES7153 4BA00 0XB0

      Manuals

      PRODUCT & ORDER FAQS

      Questions buyers ask about 6ES7153-4BA00-0XB0

      • What is the primary functional scope of Siemens 6ES7153‑4BA00‑0XB0, and in what automation topology does it operate?

        The 6ES7153-4BA00-0XB0 is a high-feature SIMATIC DP interface module (IM 153-4 PN), designed to serve as a distributed I/O gateway within ET 200M decentralized periphery systems. It enables communication between field I/O modules and higher-level PLCs over PROFINET IO, facilitating robust network integration in modern industrial automation systems.

      • How does 6ES7153-4BA00-0XB0 support signal and module scalability within an ET 200M rack?

        The 6ES7153-4BA00-0XB0 supports up to 12 SIMATIC S7-300 I/O modules on its DP slave interface, enabling comprehensive expansion of digital and analog I/O points in modular automation deployments. This scalability enhances flexibility in machine-level and process-level control architectures.

      • What advanced interoperability features are integrated into 6ES7153-4BA00-0XB0 for complex industrial applications?

        This interface module supports fail-safe modules for safety-critical I/O, HART module compatibility for asset communication, and Shared Device functionality that allows multiple controllers or systems to access the same device data—features crucial for distributed and collaborative control systems. It also supports a Medium Redundancy Protocol to improve communication robustness.

      • What are the supply voltage and permissible input ranges for the 6ES7153-4BA00-0XB0, and how do they influence system integration?

        The 6ES7153-4BA00-0XB0 operates from a 24 V DC supply, with a permissible operational range between 20.4 V and 28.8 V DC and a ripple-inclusive range of 18.5 V to 30.2 V DC. These tolerances allow stable operation in industrial 24 V control power systems without requiring additional voltage regulation hardware, enhancing integration flexibility.

      • What data exchange capacities does 6ES7153-4BA00-0XB0 offer for process monitoring and control, especially with extended protocols?

        The 6ES7153-4BA00-0XB0 features a significant I/O addressing volume, including 672 bytes of input data and 192 bytes of output data, as well as support for extended HART user data. This capability enables rich diagnostics and precise process control integration through standard PROFINET IO communication frameworks.

      • What considerations should engineers take into account regarding product lifecycle and availability for 6ES7153-4BA00-0XB0?

        While the 6ES7153-4BA00-0XB0 remains a functional interface module, Siemens has classified it as a spare part with a product cancellation status, meaning new production may be limited and customers should plan for lifecycle support or alternative solutions when designing long-term automation systems.
