Features:
- PROFIBUS PA digital communication for a compatible process-control bus.
- Single-acting actuator execution in a polycarbonate enclosure with intrinsically safe Ex i approval.
- Order code specifies an M20 x 1.5 electrical entry, G 1/4 pneumatic connections and no option module.

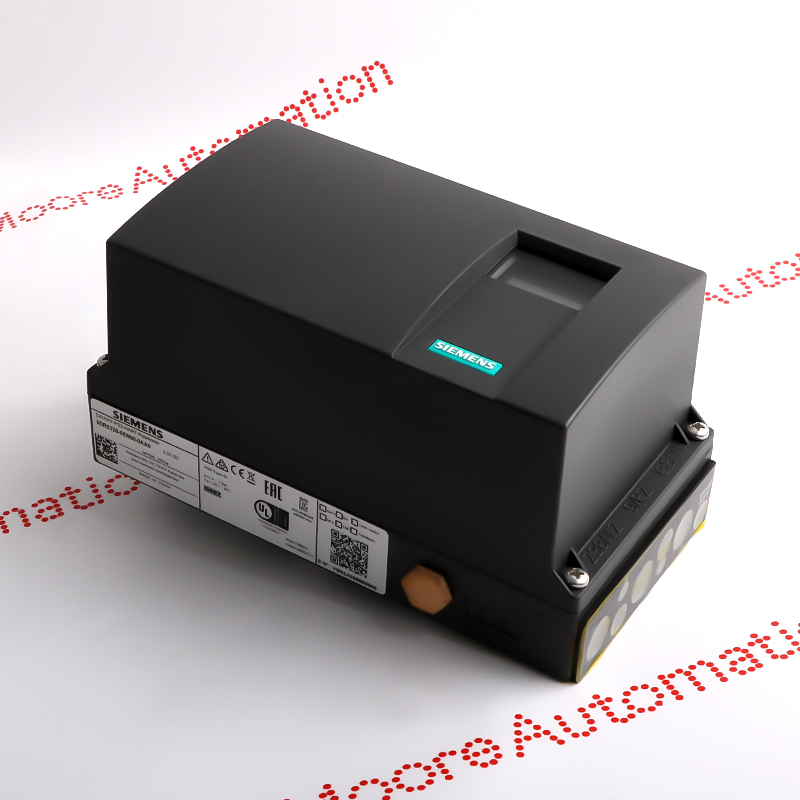

The 6DR5510-0EG00-0AA0 converts PROFIBUS PA commands into the pneumatic output required to position a compatible single-acting linear or part-turn actuator. During operation it regulates valve position and makes positioner status and diagnostic information available to the digital control network, helping the control system monitor the final-control element as well as command it.
This order-code execution uses a polycarbonate enclosure, intrinsically safe Ex i protection, an M20 x 1.5 electrical entry and G 1/4 pneumatic connections. Correct application depends on the actuator travel or angle, fail action, mounting kit, supply-air conditions, PA segment design and hazardous-area documentation; the complete order code must therefore be evaluated rather than the SIPART PS2 family name alone.
The 6DR5510-0EG00-0AA0 Siemens SIPART PS2 PROFIBUS PA Positioner may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6DR5510-0EG00-0AA0 documentation and reference links.
Important Notice: The linked PDF is an official manufacturer document for this model or its documented exact product family. Confirm the complete order code, revision, connected hardware and installation requirements before replacement. Accessories, software and certificates are included only when stated in the written quotation.
Verify the PA segment voltage, address, device description, master configuration and intrinsic-safety design before connection.
Confirm single-acting operation, travel or angle, fail action, mounting kit, pneumatic tubing and supply pressure.
Calibrate the positioner on the installed actuator and verify direction, end stops, feedback, alarms and safe response before service.
