Features:
- DeviceNet Release 2 Group II only-slave communication is provided for the documented 8200-226 SPC control execution.
- The controller operates from an 18–32 VDC supply with a maximum input current of 1.1 A across the specified −40 to +70 °C range.
- Single or dual position feedback and configurable bipolar actuator-driver current support commissioning of a compatible single-coil actuator.

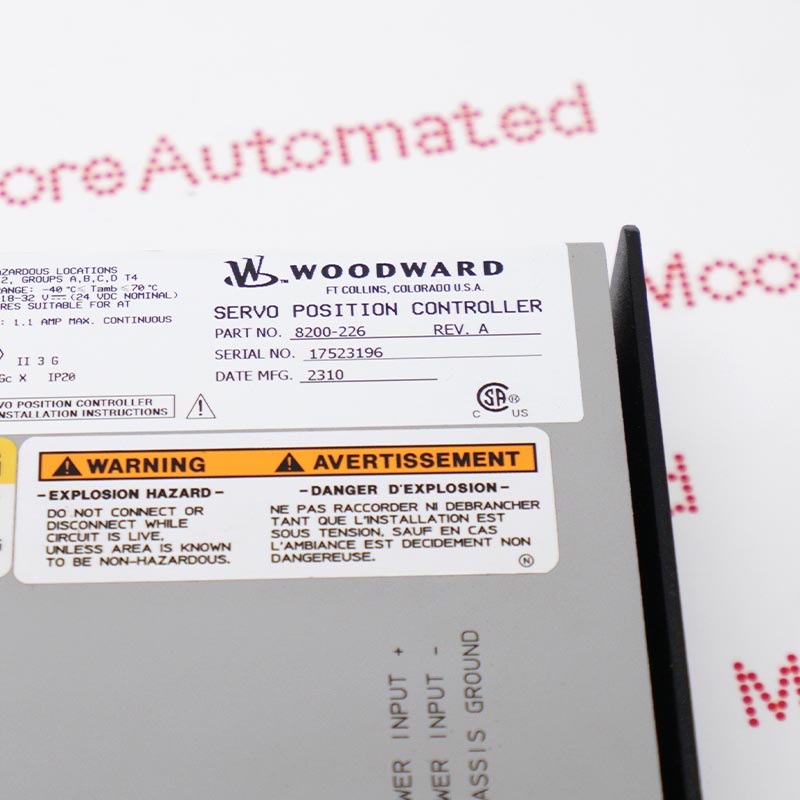

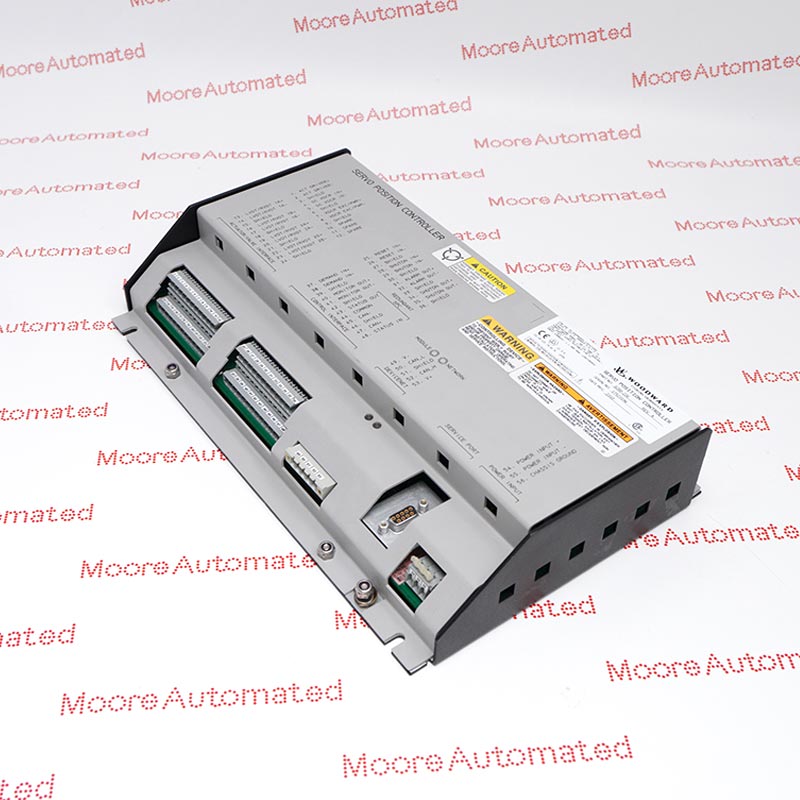

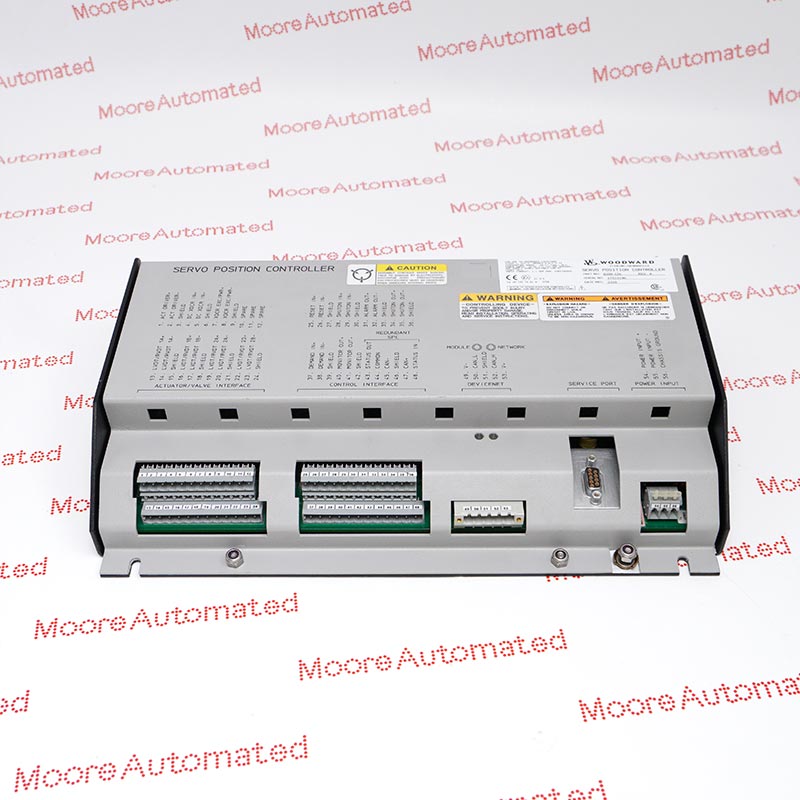

Woodward 8200-226 is an SPC Servo Position Controller that positions a single-coil hydraulic or pneumatic actuator from DeviceNet and/or a 4–20 mA demand. It supplies configurable actuator-drive current, accepts one or two feedback devices and provides an RS-232 Service Tool interface for configuration and first-time actuator calibration. The installed supply, demand wiring, actuator coil and feedback arrangement must match Manual 26236 before replacement.
Manufacturer reference: Woodward Manual 26236, SPC Servo Position Controller, 8200-226 DeviceNet control with analog backup.
Moore Automated supports exact-item verification and spare-part enquiries for 8200-226.
Woodward 8200-226 SPC Servo Position Controller manual and verified Moore Automated resources, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Demand and network interfaces
The 8200-226 demand path must be configured to match the installed control architecture.
- DeviceNet is documented as a Release 2 Group II only-slave interface.
- A 4–20 mA demand can provide the analog command or backup path.
- RS-232 provides the local Service Tool connection for setup and diagnostics.
Actuator and feedback setup
The actuator loop must be matched to the electrical limits documented for 8200-226.
- Use a single-coil hydraulic or pneumatic actuator with the correct bipolar current setting.
- Select one or two compatible position-feedback devices and verify their terminal assignments.
- Supply and transducer-power wiring must remain within the manual limits before calibration.
Commissioning sequence
Return the SPC loop to service only after the hardware and saved configuration have been checked.
- Verify the complete 8200-226 identity, enclosure installation, terminal wiring and grounding.
- Set the DeviceNet and optional 4–20 mA demand paths to match the original control strategy.
- Complete first-time actuator calibration with the Woodward Service Tool and confirm stable feedback.
