- 8-Channel Pulse Input Module for the documented Yokogawa STARDOM FCN.
- The number of CH: 8 channels.
- Voltage: 500 V AC.

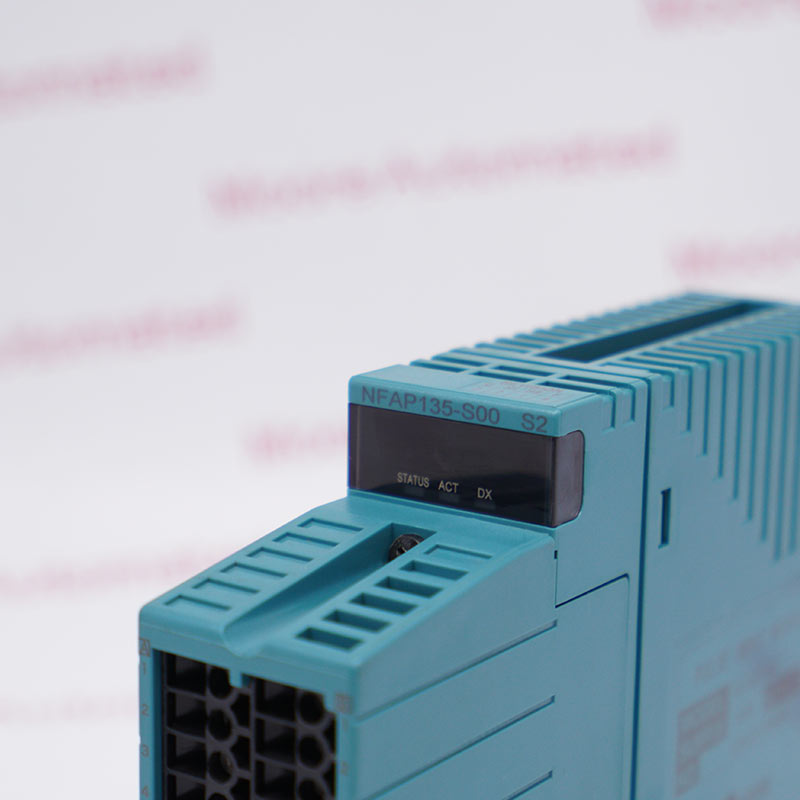

NFAP135-S00 S2 belongs to the Yokogawa STARDOM FCN and performs the documented 8-channel pulse input module role in the Yokogawa STARDOM FCN autonomous controller. The retained technical evidence records The number of CH: 8 channels; Voltage: 500 V AC; Transmitter power supply: 24 V (30 mA) / 12 V (40 mA) Selectable. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Yokogawa STARDOM FCN receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The NFAP135-S00 S2 8-Channel Pulse Input Module is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Yokogawa NFAP135-S00 S2 8-Channel Pulse Input Module Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Channel Setup: NFAP135-S00 S2 performs the 8-channel pulse input module function within the Yokogawa STARDOM FCN. The retained documentation identifies the number of ch as 8 channels; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Platform Review: approve NFAP135-S00 S2 only for the documented Yokogawa STARDOM FCN autonomous controller. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Commissioning: isolate the equipment, remove stored energy and inspect the receiving hardware before installing NFAP135-S00 S2.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
