Features:
- Two documented AF100 twisted-pair connections provide the field communication path for the supported S800 I/O arrangement.
- ABB lists the power-supply connector and TB807 Modulebus terminator with the interface supply scope.
- Replacement depends on the exact 3BSE020520R1 identity and the installed AF100, Modulebus and system-software context.

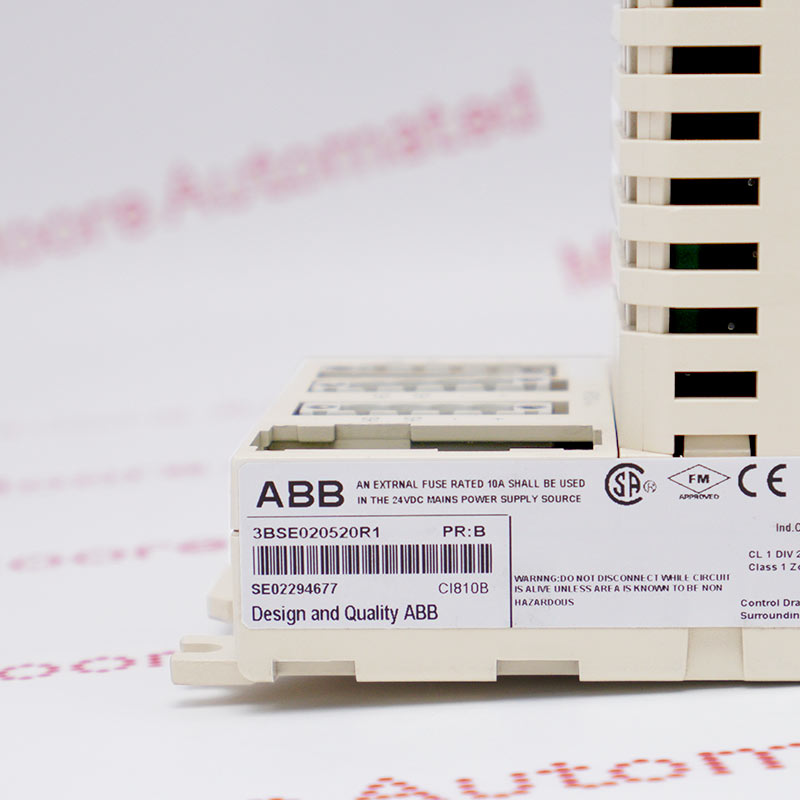

ABB identifies CI810B 3BSE020520R1 as an AF100 Field Communication Interface within the System 800xA/S800 I/O catalog. It provides two AF100 twisted-pair modem connections and is supplied in the documented catalog scope with a power-supply connector and TB807 Modulebus terminator. Correct replacement therefore depends on the complete product number, the AF100 topology, Modulebus termination and the installed software context.
ABB System 800xA 5.1 Product Catalog, order number 3BSE020520R1. The cited catalog identifies the supplied interface and included accessories; it does not provide a current lifecycle declaration. Accessories and cables are included only when stated in the written quotation.
The official lifecycle status of CI810B 3BSE020520R1 was not independently confirmed in the cited source. Moore Automated can check exact-item supply, condition and revision without claiming an unverified EOL date or successor.
ABB CI810B 3BSE020520R1 System 800xA product catalog excerpt, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Verify both AF100 twisted-pair paths, topology and installed modem arrangement before replacement.
The ABB catalog identifies a power-supply connector and TB807 Modulebus terminator; confirm the quotation if these accessories are required.
Match the receiving S800 I/O station, software generation, Modulebus termination and cabinet wiring.
