Features:

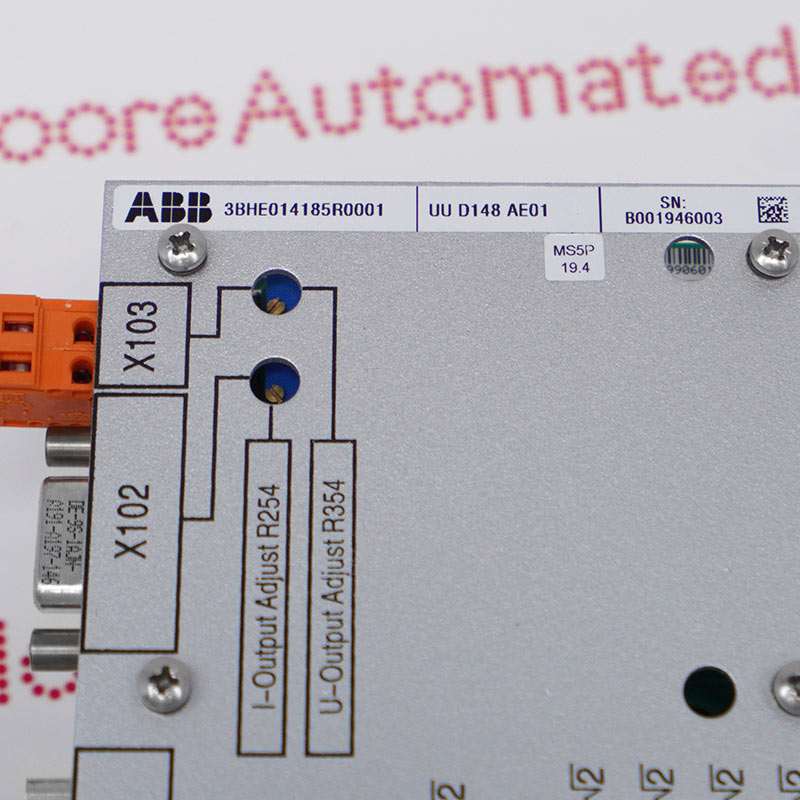

- ABB article 3BHE014185R0001 identifies UUD148 AE01 as a voltage-transducer control board.
- System role: conditions the documented measurement signals used by the excitation or converter controller.
- Compatibility is controlled by the complete article, installed position, connectors and approved project record.
3BHE014185R0001 UUD148 AE01 must remain matched to ABB UNITROL excitation and converter-control systems. Record the receiving equipment, connector assignment and installed settings before removal.
After installation, verify power and diagnostics first, then prove communication or I/O status and the assigned function under a controlled test before process release.
Documentation rule: use only an exact-model official English PDF when one is available. Unverified nearby-model ratings are withheld.
3BHE014185R0001 UUD148 AE01 verified Moore Automated product and system resources.
Important Notice: No exact English manufacturer PDF is linked unless the complete model appears in that document. Confirm the complete identity before replacement. All links open in a new page.
This voltage-transducer control board conditions the documented measurement signals used by the excitation or converter controller. Match the complete ABB identity and receiving-equipment record before installation.
Keep UUD148 AE01 on the documented signal, bus or power path. Preserve connector orientation, installed position and approved settings.
After replacement, compare diagnostics with the saved baseline and prove the assigned voltage-transducer control board function under controlled test conditions.
