Features:
- Active, industrial-grade Overvoltage Overvoltage Protection Unit
- Designed to protect three-phase field supply converters
- DCS ABB drives spare parts
During the operation of large industrial DC motors, their excitation power supply and four-quadrant non-motor loads typically exhibit extremely high inductive characteristics.
The core function of this module is as an external active safety barrier, specifically designed to protect the three-phase excitation power converter from voltage surges caused by inductive load disconnection, grid fluctuations, or rapid four-quadrant braking.

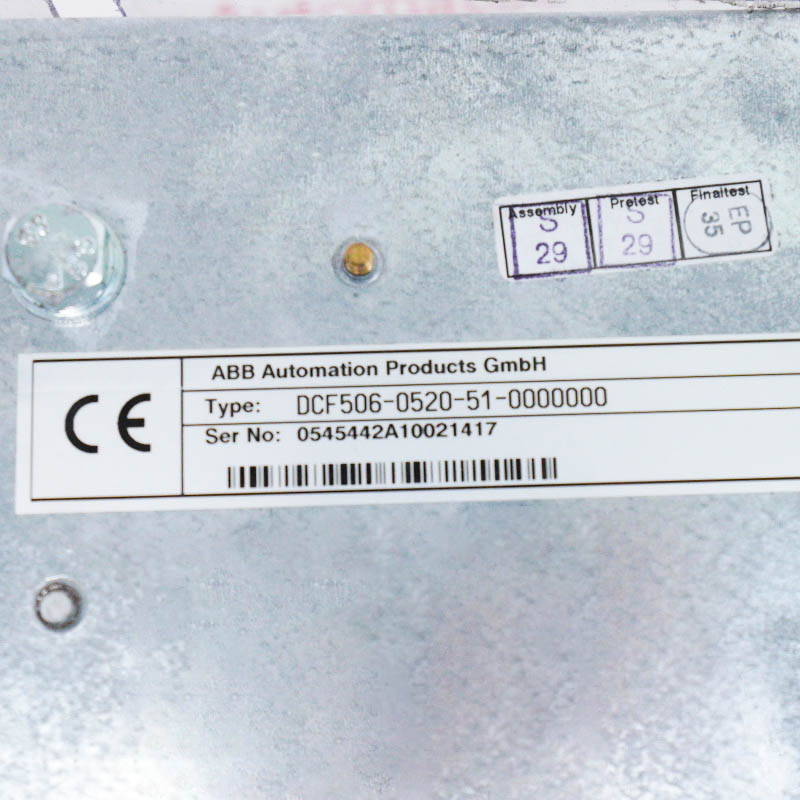

The DCF506-0520-51-0000000 ABB Overvoltage Protection Unit may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB DCF506-0520-51-0000000 Overvoltage Protection Unit manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
When high-power DC drive systems operate under high-load induction motor excitation, shutdowns or commutations can cause significant voltage surges. The DCF506-0520 is designed to intercept these voltage surges. It reduces system downtime in large manufacturing, mining, or utility circuits by actively clamping the voltage within safe operating ranges, preventing burnout of internal thyristor bridges and control electronics.
Since the excitation winding of a DC motor is a huge inductor, when the system suddenly cuts off the power, an emergency stop occurs, or the motor is in a four-quadrant reverse braking state with energy feedback, according to the principle that the inductor current cannot change abruptly, the excitation circuit will generate an extremely high back electromotive force (induced overvoltage) instantaneously.
