Features:
- Conformal Coated Alternative Energy Power Supply
- AEPS The Functional Acronym meaning Alternative Energy Power Supply
- Core power regulation, signal distribution, and operational processing within wind turbine controls
As a core hardware component of GE's renowned Speedtronic Mark VI/Mark VIe control system, this device is primarily deployed in the control racks of wind turbines, gas turbines, or steam turbines to manage the power control and low-level signal conditioning of the entire system.
Its main task is to receive industrial mains power and distribute it with high stability, providing a clean and constant operating voltage to the system's core processor and specific input/output (I/O) cards, thereby ensuring the smooth operation of the entire turbine management system.
The IS210AEPSG1BCB GENERAL ELECTRIC Conformal Coated Alternative Energy Power Supply may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
GENERAL ELECTRIC IS210AEPSG1BCB Conformal Coated Alternative Energy Power Supply INFO(manual), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

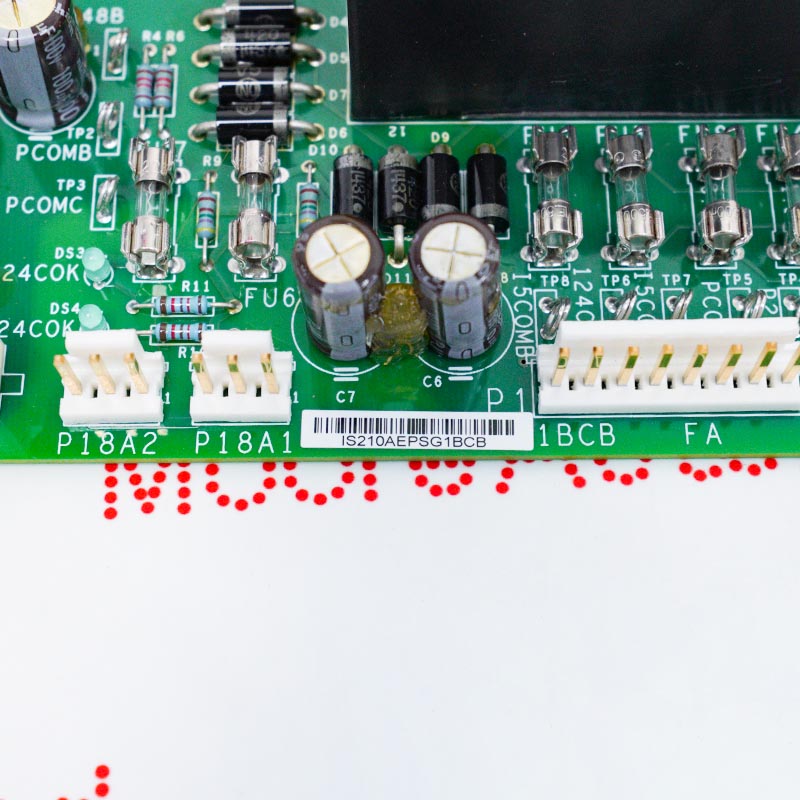

The IS210AEPSG1BCB module primarily relies on buck conversion, intelligent energy distribution algorithms, and closed-loop overcurrent monitoring mechanisms for coordinated operation. When the module's input voltage reaches the circuit board, its integrated converter and inductor-based filter network finely smooth and rectify the front-end power supply, converting it to the DC power required by industrial systems (e.g., supporting a stable 12V DC output with high throughput current).
Its embedded hardware control logic and distributed algorithms dynamically monitor impedance changes in each branch load and automatically fine-tune power distribution within milliseconds via control loops to ensure that core components do not experience voltage drops under sudden high loads.
Simultaneously, its monitoring circuit, composed of an isolation transformer and current transformer, can transmit lossless isolated modulated field-frequency conversion signals or analog voltage/current feedback signals from the instrument to the Mark VIe core controller (e.g., the UCSE module) via the backplane or RS-485 serial bus for logic decision-making. This achieves a complete duty cycle of "power regulation and control - status closed-loop capture - protection interlock reporting".
The AEPS board connects directly to the turbine control network, processes field signals, and feeds back clean DC power to the peripheral submodules. Because it relies on an RS-485 serial data connection, the online diagnostic rack will immediately detect communication link failures or voltage rail drop faults if the performance of components on the board deteriorates (e.g., onboard fuses blow or capacitors age).
