Features:
- DI810 16-channel digital input module
- 3BSE008508R1 ABB S800 I/O
- Provides sixteen 24 V DC current-sinking input channels

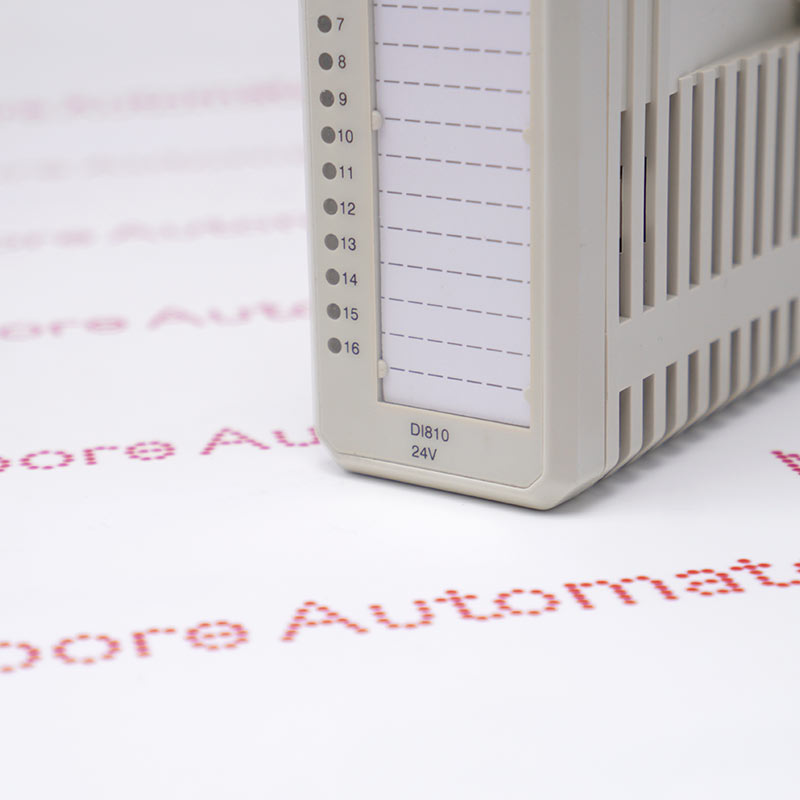

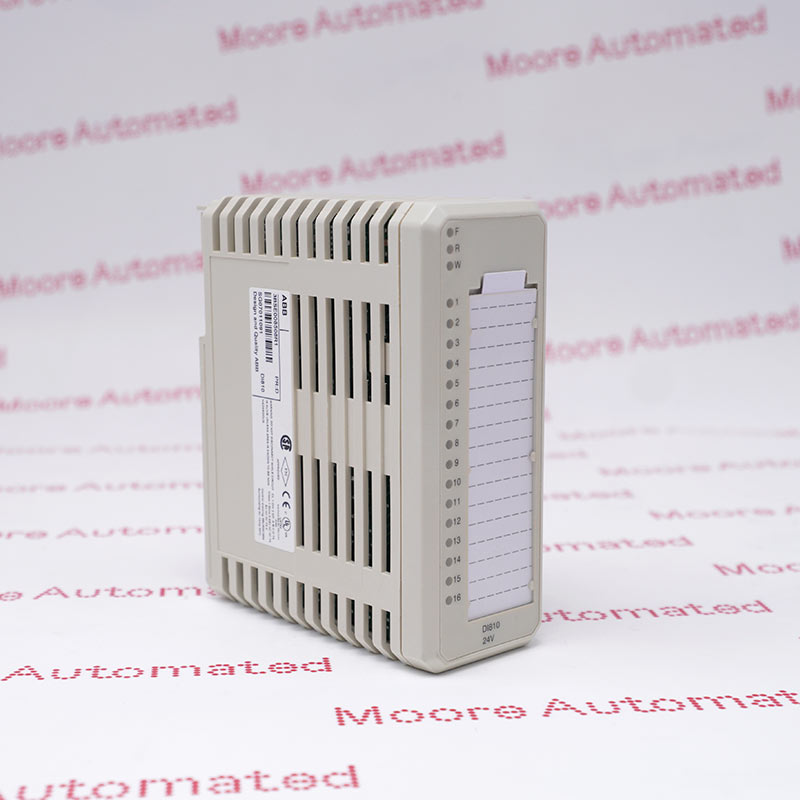

The ABB DI810 3BSE008508R1 is a 16-channel digital input module in the ABB S800 I/O. The manufacturer specifies it provides sixteen 24 V DC current-sinking input channels. The channels are arranged in two isolated groups of eight for field status acquisition. Its ordering identity combines DI810 with 3BSE008508R1; both references should be checked when selecting a replacement. Engineering confirmation should also cover 24 V DC field supply, input logic, TU8xx termination unit and channel assignment and the installed base or terminal hardware before the unit is placed into service.
Values are based on the manufacturer's official ABB S800 I/O documentation. Final selection must be verified against the complete article number and installed configuration.
The ABB DI810 3BSE008508R1 16-channel digital input module is supported by Moore Automated for verified industrial replacement and spare-part requirements.
ABB DI810 3BSE008508R1 16-channel digital input module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
DI810 3BSE008508R1 should be engineered using the official ABB S800 I/O documentation, with the stated 24 V DC digital inputs matched to the configured signal path.
Before installation, confirm 24 V DC field supply, input logic, TU8xx termination unit and channel assignment, the associated base or terminal hardware, and the field-side electrical conditions shown in the manufacturer's instructions.
Use the complete article number when comparing units. Channel configuration, connected equipment and any safety or communication requirements must remain consistent with the verified design.
