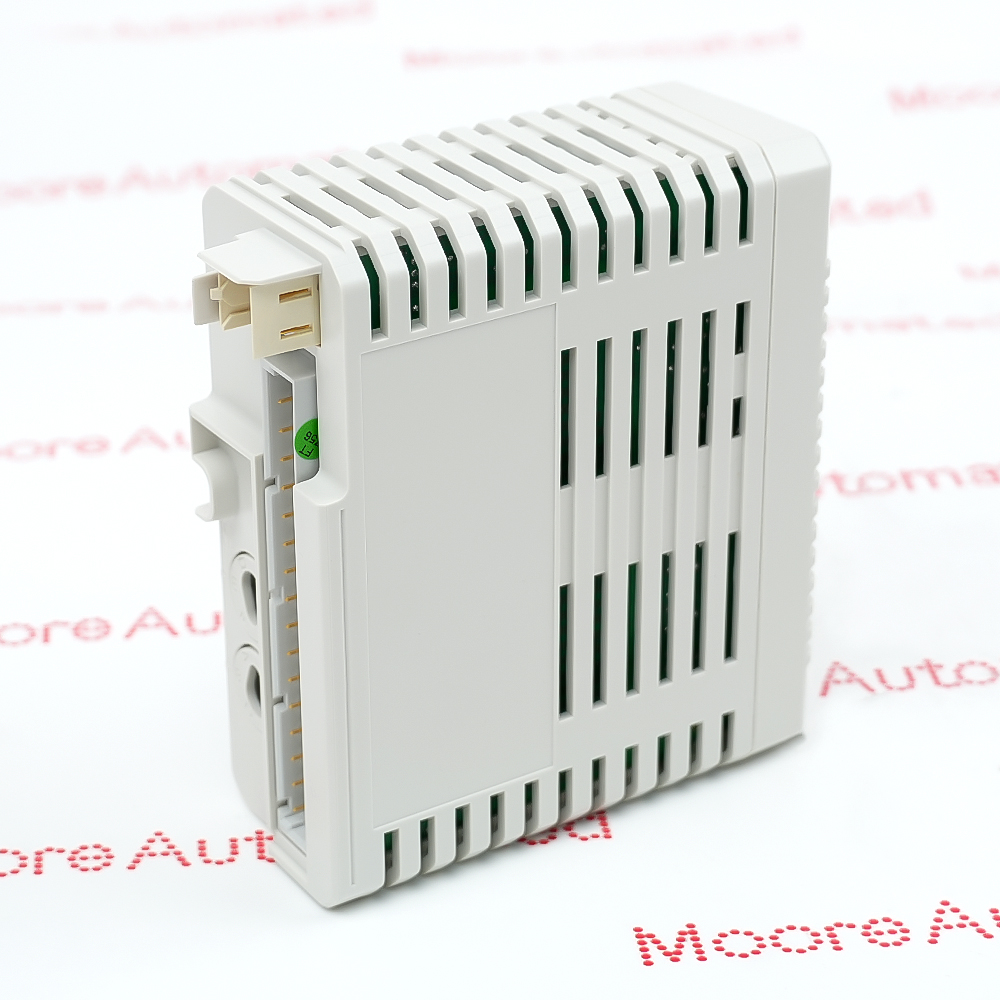

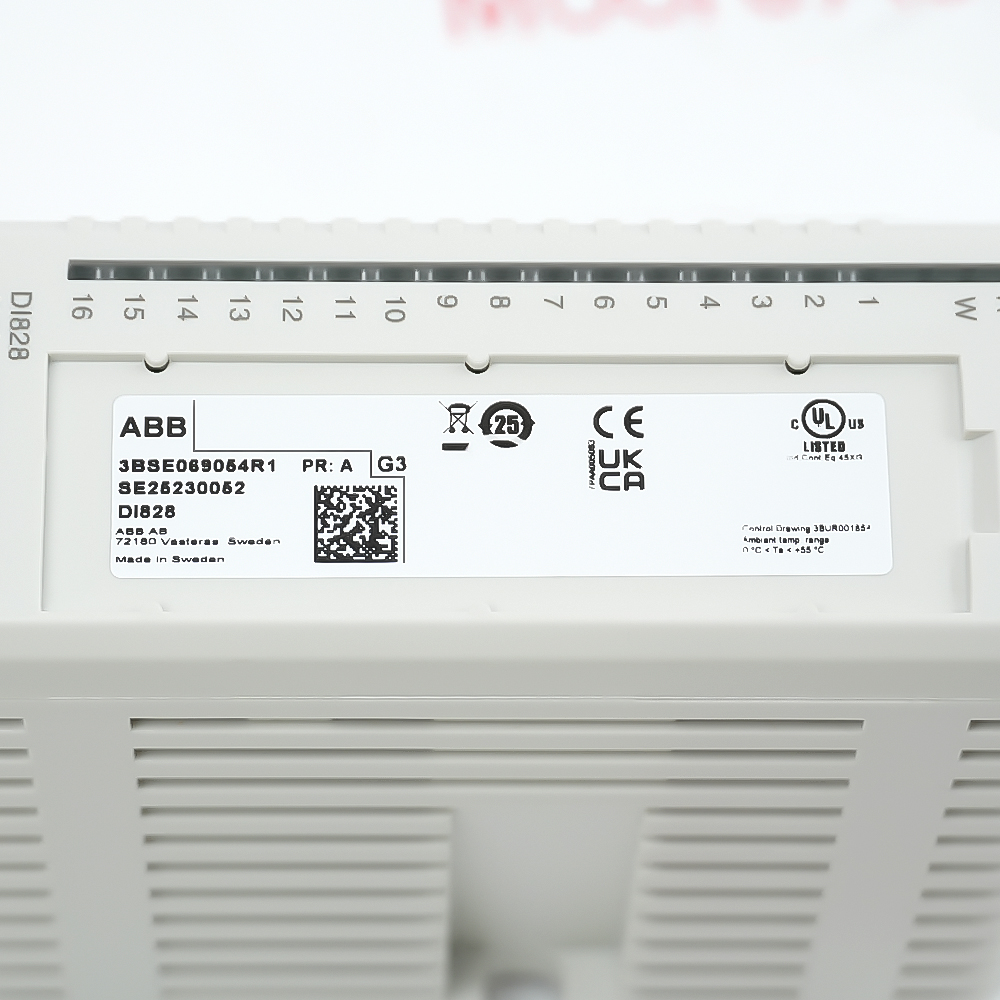

      ABB DI828 3BSE069054R1
      ABB DI828 3BSE069054R1
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      DI828 3BSE069054R1

      Digital Input Module
      In Stock
      Ships by Friday, August 7
      Fast Shipping Available

      Product Information:

      The DI828 3BSE069054R1 digital input module features a versatile signal infrastructure optimized for harsh industrial environments, providing exactly 16 channels for 120 volt a.c./d.c. digital inputs. A hallmark of this technical assembly is that the inputs are individually isolated, allowing every connected line to function within its own separate circuit boundary for enhanced reliability.

      The dense plastic casing of the DI828 3BSE069054R1 maintains a compact physical footprint, featuring a product net depth/length of 102 mm, a net height of 119 mm, a net width of 45 mm, and an overall product net weight of 0.3 kg. From an environmental and compliance standpoint, the device is built with a layout containing a number of batteries of 0, meaning factories completely eliminate routine battery replacement routines. Production methods align fully following EU Directive 2011/65/EU (RoHS Information) to enforce clean manufacturing standards.

      Furthermore, the DI828 3BSE069054R1 hardware is certified under WEEE Category 5 as small equipment with no external dimension more than 50 cm. Registered securely under the official SCIP tracking number a46f2308-e79a-410b-a8d8-e663a4e2bff1 linked to Sweden, this component offers transparent material traceability for compliance auditing in global B2B networks.




      Warranty Policy
      We provide 1-year warranty for all remaining parts.
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is 1-year warranty from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shipping Methods
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore Automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for DI828 3BSE069054R1

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Estimated shipping dimensions:
        10.2 x 11.9 x 4.5 cm
      • Weight:
        0.15 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        Sweden
      • Place of shipment:
        Xiamen, Fujian, China
      • Number of channels:
        16 channels
      • Signal specification:
        120 V a.c/d.c
      • Input voltage range, "0":
        0..30 V a.c., 0..20 V d.c.
      • Input voltage range, "1":
        77..130 V a.c., 75..130 V d.c.
      • Input impedance:
        14.2 kΩ (a.c.) / 50 kΩ (d.c.)
      • Filter times (digital, selectable):
        2,5 ±0.5, 5 ±1, 10 ±2, 20 ±4 ms
      • Input frequencey range:
        47..63 Hz
      • Rated insulation voltage:
        250 V
      • Current consumption +5 V Modulebus:
        Typ. 45 mA, Max 60 mA
      • Operating temperature:
        0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
      • Storage Temperature:
        -40 to +70 °C (-40 to +158 °F)
      • Protection class:
        IP20 according to IEC 60529
      • Stock:
        1
      Ask for Quote

      Alternative Names

      DI828 3BSE069054RI DI828 3BSEO69O54R1 DI830 3BSE020924-510 B DI830 3BSE020924-510 DI8283BSE069054R1 DI821 3BSE008550R1 DI880 3BSE028586R1 DI86-32 57275782D DI830 3BSE013210R1 DI814 3BUR001454R1 DI803 3BSE022362R1 DI801 3BSE020508R1

      Information

      Overview Manuals Application Details Lifecycle & Retrofit Status

      Features:

      • Dual AC/DC 120V Thresholds: Processes fluctuating high-voltage digital statuses across varied electrical systems without requiring auxiliary converters.
      • Onboard Logic Supervision: Configures channels 1 and 16 to act as dedicated diagnostic line voltage supervisors for surrounding input zones.
      • Optical Bus Decoupling: Deploys localized photonic barriers to keep severe field-side electromagnetic interference away from core processing lines.
      The DI828 3BSE069054R1 plays a pivotal role in high-voltage industrial automation layouts by translating raw, discrete field signals into clear data for the central processor. Heavy processing plants are challenging environments where high-power motor contactors, solenoids, and switches generate massive electrical feedback that can easily corrupt data loops. Implementing this heavy-duty 16-channel module allows facility engineers to build a highly stable data interface, shielding critical computing elements from unpredictable field fluctuations while gathering precise plant status updates.

      Integrating the DI828 3BSE069054R1 inside local control cabinets significantly improves space management and hardware reliability across legacy or modern facilities. The slim, compact profile allows mounting teams to arrange multiple high-voltage input loops within tight spaces, avoiding expensive expansions to existing cabinet enclosures. Backed by full compliance with international green initiatives and a maintenance-free, battery-less interior, this module serves as a highly efficient investment for continuous operation fields like water management, power substation control, and heavy manufacturing.

      The DI828 3BSE069054R1 ABB Digital Input Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      ABB DI828 3BSE069054R1 Digital Input Module manual(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The ABB DI828 3BSE069054R1 integrates into System 800xA via the S800 I/O platform, pairing with the TU851 MTU for DIN-rail deployment. It is ideal for monitoring 120V AC/DC field signals from motor control centers, safety interlocks, and generator relays in power or heavy processing plants. Its 2000V individual isolation and dual-group voltage supervision prevent ground loops and automatically report field excitation dropouts.
      The ABB DI828 3BSE069054R1 remains in the Active lifecycle phase, meaning it is fully supported, marketed, and actively manufactured by the OEM for new installations and retrofit expansions. Under ABB's functional upward compatibility policy, it serves as a long-term, high-voltage drop-in retrofit solution for legacy S800 I/O clusters, allowing seamless 120V system modernization without requiring structural rewiring or backplane changes.

      Manuals

      Technical notes

      The DI828 is an 16 channel 120 V a.c/d.c. digital input module for the S800 I/O. The module has 16 digital inputs. The AC input voltage range is 77 - 130 V and the input current is 8.5 mA at 120V AC. The DC input voltage range is 75 - 130 V and the input current is 2.4 mA at 120V DC. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED, optical isolation barrier and an analog filter. Channel 1 can be used as voltage supervision input for channels 2 - 8. Channel 16 can be used as voltage supervision input for channels 9 - 15. If the voltage supervision is used and the voltage connected to channel 1 or 16 disappears, the channel error will be set for the channels and the Warning LED turns on. The error signal can be read from the ModuleBus.

      • Product Lifecycle Stage

        Active / Available from OEM

        Moore Automated supplies genuine-quality ABB DI828 3BSE069054R1 Digital Input Modules for demanding industrial control systems. Every unit is carefully inspected before shipment, providing a dependable solution for maintaining stable digital input performance and minimizing unexpected production downtime.

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What electrical potential types can the field terminals of the DI828 component handle safely?
        The robust internal architecture of the DI828 component allows the hardware to accept and process both 120 volt a.c. and 120 volt d.c. discrete signals simultaneously across the plant floor.
      • Why would a factory automation technician activate the onboard tracking firmware within the DI828 hardware?
        Enabling this function lets channel 1 act as a continuous line voltage monitor for channels 2 through 8, while channel 16 watches over channels 9 through 15 to catch line drops early.
      • How do channels 1 and 16 behave when the voltage supervision option is turned off inside the DI828 module?
        Disabling the monitoring loop frees up the internal circuits, transforming channels 1 and 16 into standard discrete inputs to expand the overall capacity of the DI828 module to 16 full signal points.
      • Which individual signal conditioning mechanisms are built into each input channel of the DI828 device?
        Every circuit path inside the DI828 device features embedded current limiting technology, dedicated EMC protection shields, a signal noise filter, and a clear input state LED indicator for real-time testing.
      • What specific hardware barrier stops dangerous 120V field surges from traveling into the sensitive ModuleBus backbone?
        The design uses premium optical isolation to create a physical light-gap barrier, keeping high-voltage transients on the field side and away from the delicate low-voltage ModuleBus communication channels.
