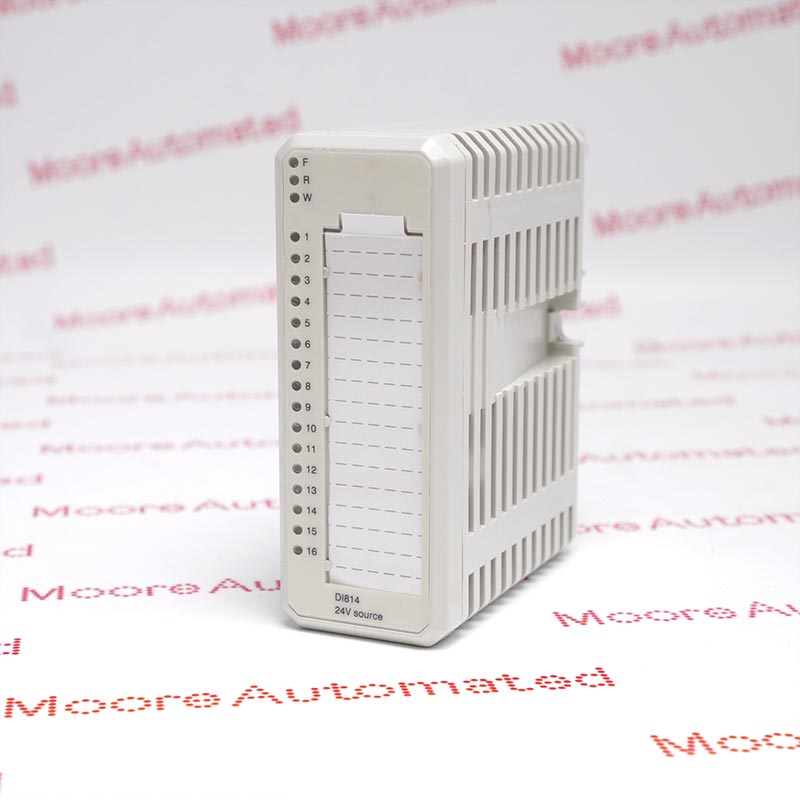

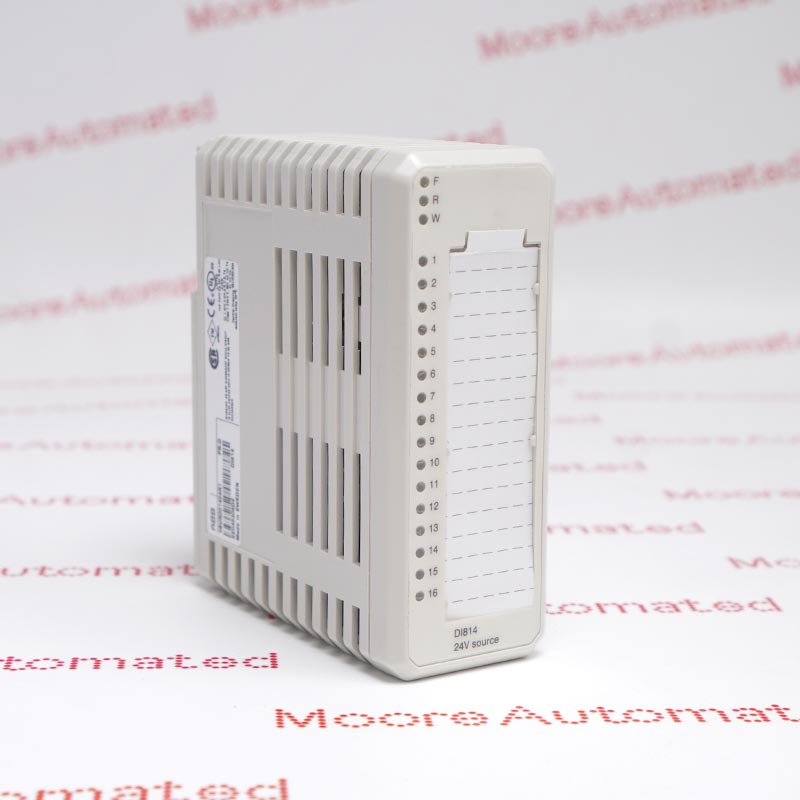

DI814 is an ABB Digital Input Module for the documented Advant S800 I/O platform. Verified configuration includes Type Digital Input, Signal specification 24 V d.c., Number of channels 16, Signal type Current sourcing. Confirm the complete identity, hardware revision, interfaces and receiving-system configuration before replacement; verify affected functions after installation.
DI814 is an ABB Digital Input Module selected by its complete product identity and documented Advant S800 I/O equipment role. Its verified execution includes Type Digital Input; Signal specification 24 V d.c.; Number of channels 16; Signal type Current sourcing; HART No; SOE No; Redundancy No. These values distinguish the supplied hardware from visually similar revisions and must match the approved receiving-system record.

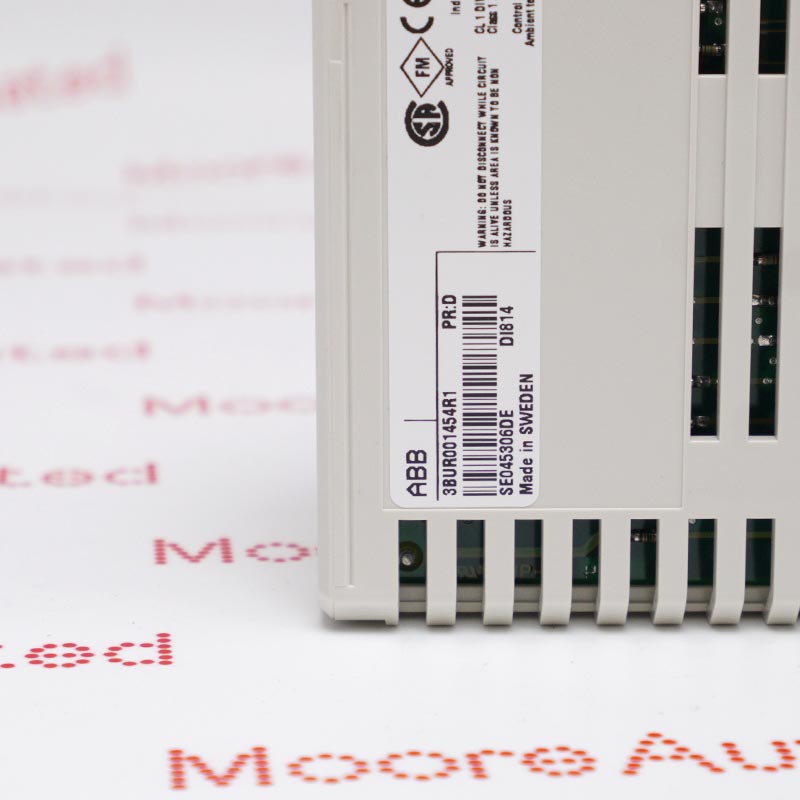

Before installing DI814, record the complete nameplate, hardware revision, installed position, connector or terminal allocation, paired assemblies and relevant settings. Compare the supplied unit with the approved ABB documentation, isolate affected energy sources, preserve grounding and configuration data, then complete diagnostics and controlled functional checks before return to service.
ABB DI814 documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
DI814 performs the documented digital input module function within the Advant S800 I/O platform. Verified product data includes Signal specification 24 V d.c.; Number of channels 16; Signal type Current sourcing; Redundancy No; Input voltage range, "0" -30 .. 5 V; Input voltage range, "1" 15 .. 30 V. These values and the complete hardware revision must match the supplied unit.
Integrate DI814 only with the approved Advant S800 I/O receiving hardware, connector or terminal arrangement and paired assemblies. Preserve all recorded settings, then verify each affected interface and diagnostic path after installation.
Before energizing DI814, inspect mounting, connector keying, wiring allocation, protective grounding and connected equipment. Review status indications and diagnostics, then complete controlled functional tests before service release.
DI814 verified technical data: Signal specification 24 V d.c.; Number of channels 16; Signal type Current sourcing; Redundancy No; Input voltage range, "0" -30 .. 5 V; Input voltage range, "1" 15 .. 30 V; Input impedance 3.5 kΩ; Isolation Groupwise isolated from ground, 2 groups with 8 channels; Current limiting Sensor power can be current limited by the MTU; Rated insulation voltage 50 V. Use these values only with the complete product identity and documented Advant S800 I/O receiving-system record.
Match DI814 to the approved mounting position, terminal or connector arrangement, power and signal interfaces, paired assemblies and configuration record. After installation, verify every affected function and diagnostic indication.
Active / Available from OEM
Moore Automated supplies the ABB DI814 Digital Input Module through exact-item verification and qualified supply channels. Every supplied unit is checked for identity, revision, physical condition and included items before shipment to support stable operation and reduce unplanned downtime.
