Features:
- Analog input acquisition
- I/O expander bus communication
- Field termination through compatible Bailey termination hardware
- Standard rack mounting
The

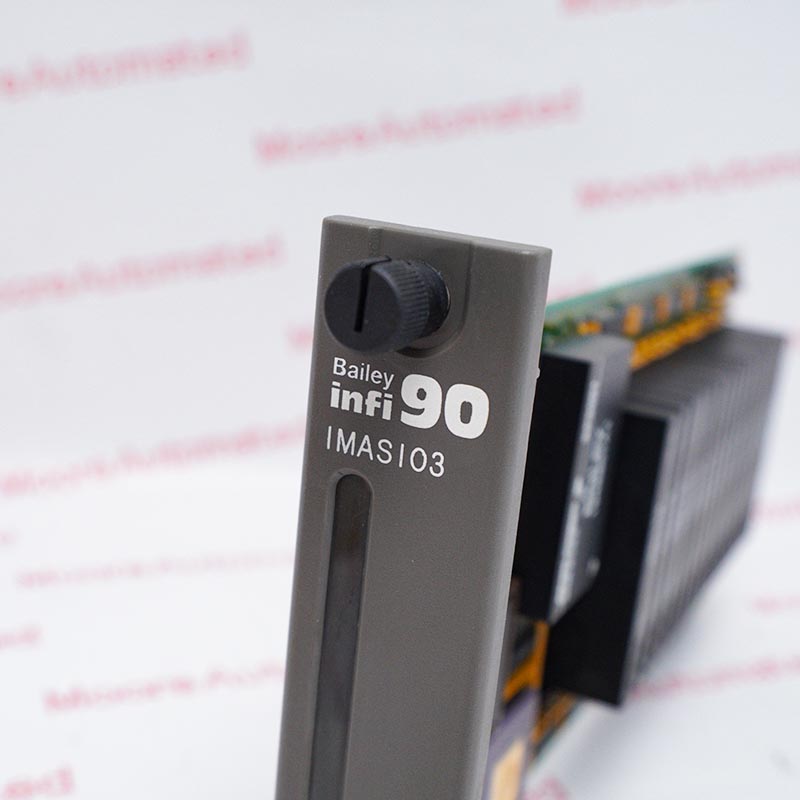

ABB IMASI03 is an analog input module in the INFI 90 / Harmony Rack I/O family. It interfaces process analog signals with the control system through the rack I/O architecture. Its ordering identity should be checked exactly against the installed module before procurement.
ABB documentation identifies analog input acquisition, i/o expander bus communication, field termination through compatible bailey termination hardware. Use the approved rack position, termination hardware, power arrangement, and system configuration specified for the application.
The ABB IMASI03 is a legacy ABB module. Moore Automated can support replacement and spare-part requirements; the documented evolution reference is engineering migration to current Harmony analog input hardware, subject to application verification.
ABB IMASI03 Analog Input Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
I/O Characteristics
ABB IMASI03 interfaces process analog signals with the control system through the rack I/O architecture. Official ABB documentation identifies analog input acquisition, i/o expander bus communication, field termination through compatible bailey termination hardware.
Installation Notes
Match the complete IMASI03 order identity with the installed ABB rack, backplane, termination unit, field signal, power supply, and engineering configuration. Commission the replacement only after wiring and channel assignments have been verified.
Lifecycle Guidance
Obsolete/Discontinued by OEM. The official evolution reference is engineering migration to current Harmony analog input hardware; final selection requires application-specific verification. Moore Automated supplies high-quality ABB replacement modules and spare parts to help reduce customer downtime.
