Features:
- 16 digital input channels
- Dedicated time-synchronization interface
- 24/48/125 V DC or 120 V AC application variants
- 64 KB RAM and 64 KB ROM
The

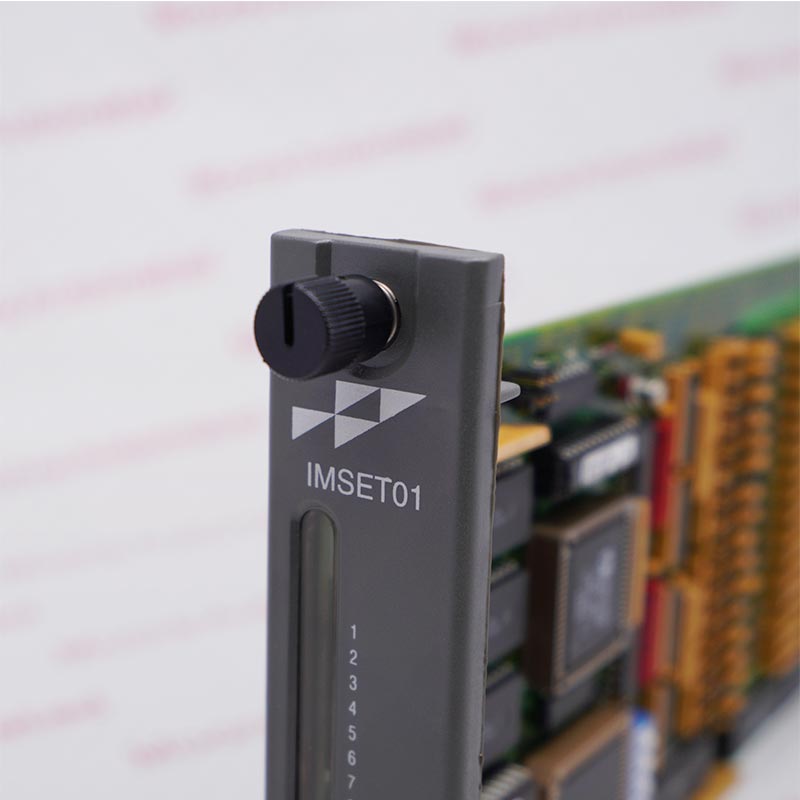

ABB IMSET01 is a 16-channel sequence-of-events digital input module with time sync in the Harmony Rack I/O family. It records time-coordinated digital transitions for high-resolution event reconstruction and plant diagnostics. Its ordering identity should be checked exactly against the installed module before procurement.
ABB documentation identifies 16 digital input channels, dedicated time-synchronization interface, 24/48/125 v dc or 120 v ac application variants. Use the approved rack position, termination hardware, power arrangement, and system configuration specified for the application.
The ABB IMSET01 is a legacy ABB module. Moore Automated can support replacement and spare-part requirements; the documented evolution reference is modern Symphony Plus sequence-of-events I/O with compatible time synchronization, subject to application verification.
ABB IMSET01 16-Channel Sequence-of-Events Digital Input Module with Time Sync Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Network Role
ABB IMSET01 records time-coordinated digital transitions for high-resolution event reconstruction and plant diagnostics. Official ABB documentation identifies 16 digital input channels, dedicated time-synchronization interface, 24/48/125 v dc or 120 v ac application variants.
Configuration Requirements
Match the complete IMSET01 order identity with the installed ABB rack, backplane, termination unit, field signal, power supply, and engineering configuration. Commission the replacement only after wiring and channel assignments have been verified.
Migration Notes
Obsolete/Discontinued by OEM. The official evolution reference is modern Symphony Plus sequence-of-events I/O with compatible time synchronization; final selection requires application-specific verification. Moore Automated supplies high-quality ABB replacement modules and spare parts to help reduce customer downtime.
