Features:
- 16 independent digital output channels grouped into two isolated banks
- Open Collector, meaning it acts as a low-side ground switch for an external power supply to complete the field circuit
- Operates across 24 VDC and 48 VDC external load circuits

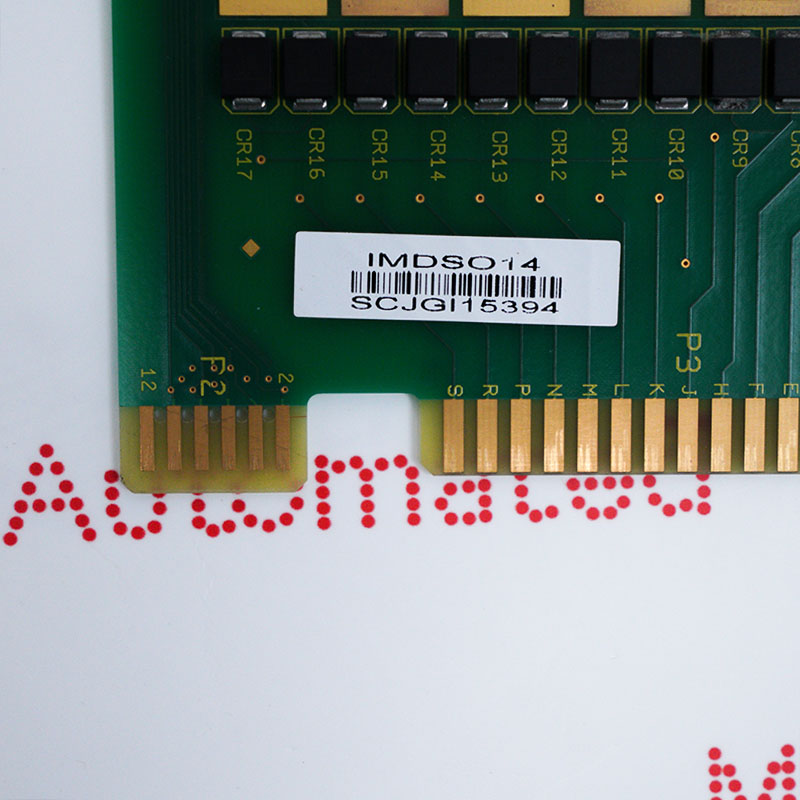

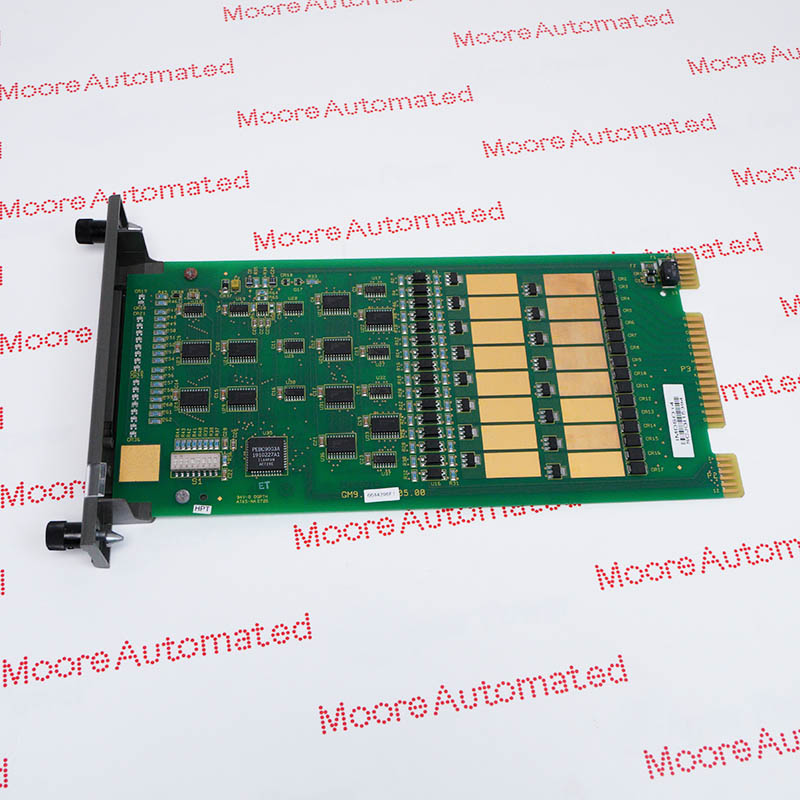

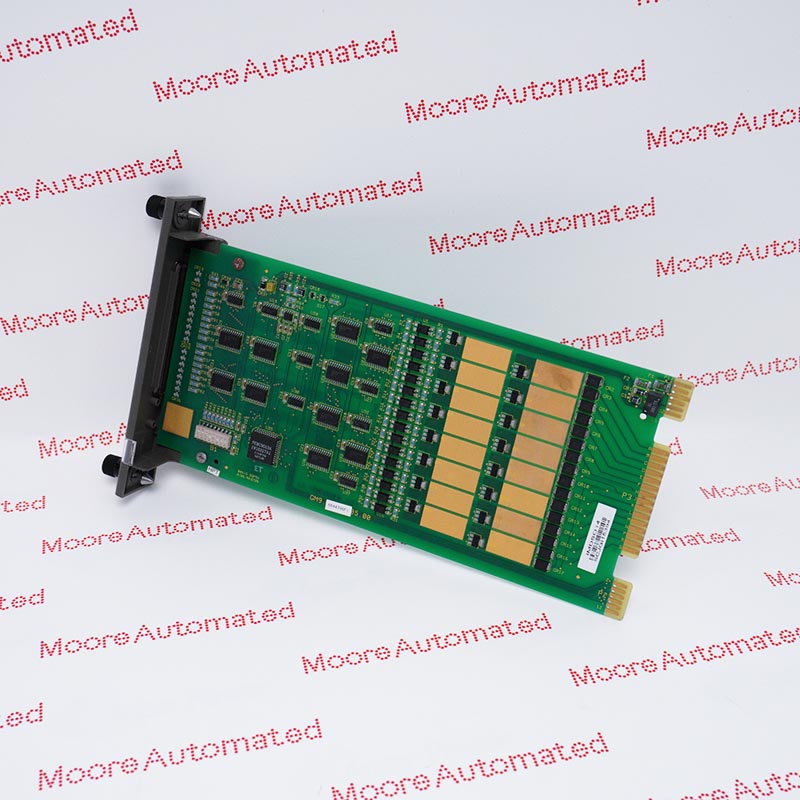

The ABB IMDSO14 is a high-performance digital slave output module designed specifically for ABB's INFI 90 OPEN strategic process management system and Symphony distributed control system (DCS). This module features 16 independent digital output channels, primarily serving as a critical interface between the control system and external industrial field devices. It outputs independent switching signals to the process layer, enabling automatic switching control of actuators such as solenoid valves, relays, contactors, and indicator lights.
In terms of hardware compatibility and functionality, the IMDSO14 employs a 16-channel open-collector circuit configuration, capable of handling both 24VDC and 48VDC load voltages simultaneously. This allows it to directly replace the IMDSO04 module, which only supports 24VDC. Furthermore, the module incorporates dedicated electromagnetic interference (EMI) protection circuitry, providing strong immunity to interference, and each channel typically supports connection to external terminal units via dedicated cables. This ensures field compatibility with multi-voltage control while significantly improving system availability in harsh industrial environments.
The IMDSO14 ABB Digital Output Slave Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB IMDSO14 Digital Output Slave Module Manuals/Datasheets/Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IMDSO14 has officially transitioned to legacy spare part status.
If you are working on maintaining or upgrading an existing rack, keep the following in mind:Direct Successor: If you need a brand-new card from the factory, the replacement model is the SPDSO14 (Symphony Plus family).Drop-In Compatibility:
The newer SPDSO14 is completely backward compatible. It can slide directly into the same physical slot previously occupied by the IMDSO14 and interface seamlessly with your existing NTDI01 termination unit and ribbon cables without any software logic modification.
Thermal Power Generation: Coordinates boiler sequential purging procedures, drives heavy-duty burner management system (BMS) fuel ignition valves, and triggers safety interlocks.
Petrochemical and Refining Units: Operates electromagnetically driven emergency stop (ESD) valves and process module valves, and manages local fire and gas safety system alarms/indicators.
Water Supply and Pump Rooms: Manages large, high-torque electric gate actuators and starts/stops heavy-duty water supply booster pumps via large contactors.
Mining and Heavy Material Conveying: Controls sequential conveyor start horns, drives hydraulically braked solenoid valves, and manages interlocked chute branch gates.
