Features:
- The documented module function is INFI-NET to Ethernet transfer, and this value must match the supplied unit.
- The documented ethernet rate is 10/100 Mbps, and this value must match the supplied unit.
- The documented point definitions is 30,000, and this value must match the supplied unit.

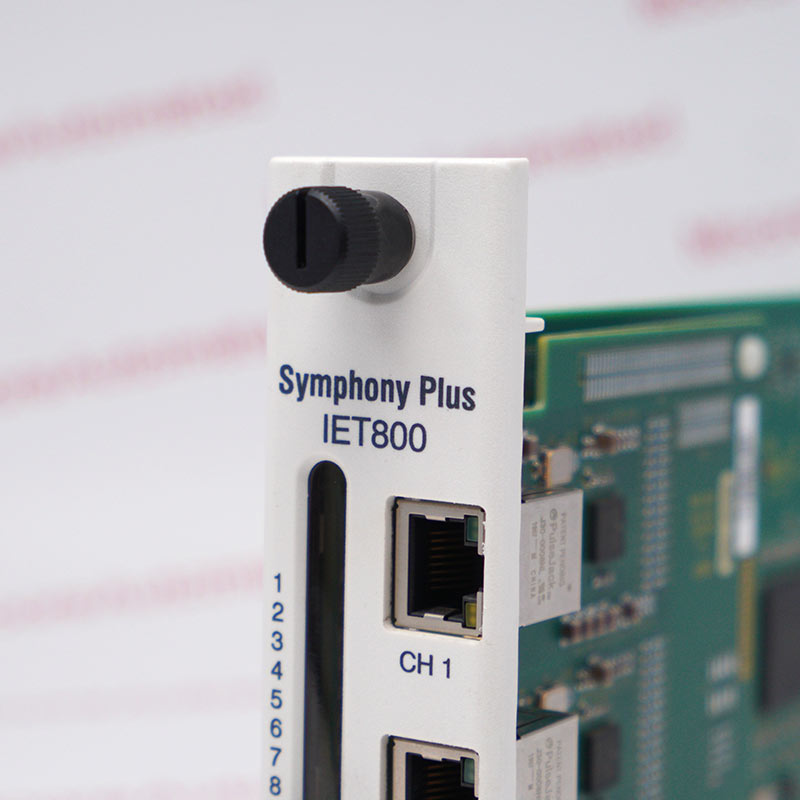

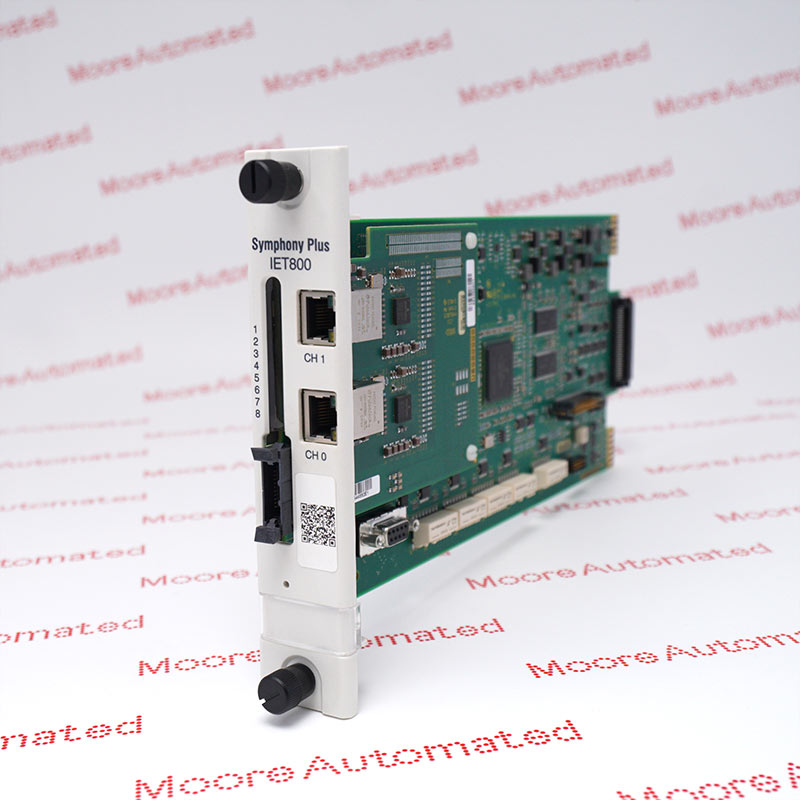

ABB SPIET800 is a INFI-NET to Ethernet Transfer Module documented for the applicable Bailey Infi 90 system configuration. Its recorded specification includes module function INFI-NET to Ethernet transfer, ethernet rate 10/100 Mbps, point definitions 30,000. Correct selection depends on the complete article identity, installed equipment, mechanical or electrical interfaces and the documented configuration rather than appearance alone. Using the exact model helps maintenance teams avoid incompatible revisions, connector arrangements and application variants.
Before installing SPIET800, record the original nameplate, installed position, connected assemblies and every relevant configuration detail. Compare the supplied unit with the existing hardware and applicable ABB service documentation, isolate all affected energy sources and preserve required settings or calibration data. After installation, inspect each affected interface and complete controlled functional checks before returning the equipment to service.
The SPIET800 ABB INFI-NET to Ethernet Transfer Module is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB SPIET800 documentation and reference links.
Important Notice: Every linked document must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.
SPIET800 is documented for the Ethernet server position in the SPICI800 interface. The module serves as many as 30,000 point definitions over a 10/100 mbps connection.
Apply SPIET800 only with the SPIET800 active transfer-module arrangement; confirm SPICI800 kit, Ethernet cabling, point database, power rail, rack slot and network plan.
Record the installed arrangement before service, then verify active port, point requests, memory retention, communications and operating temperature after replacement.
