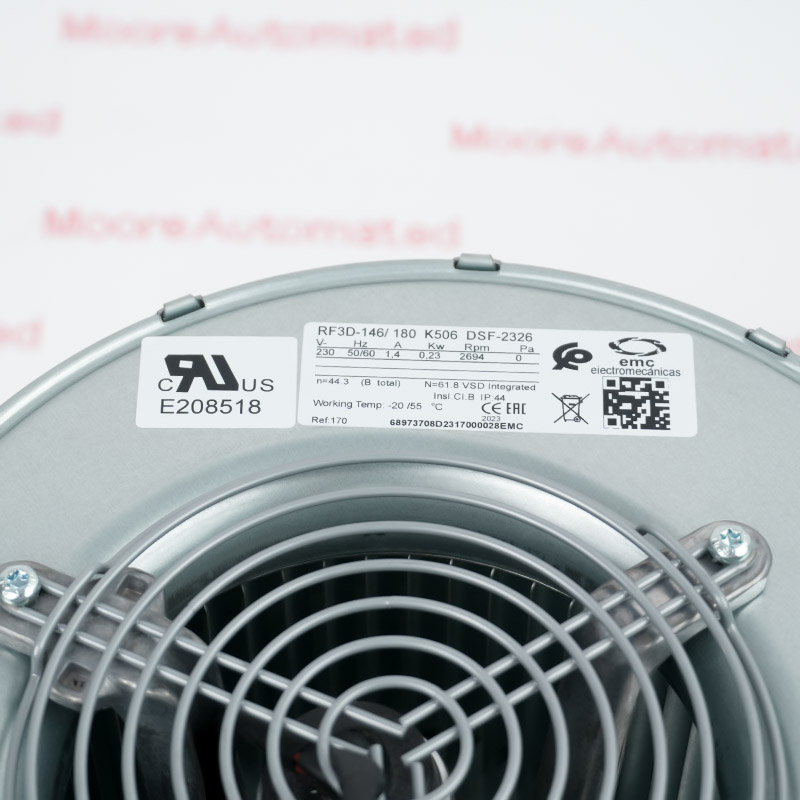

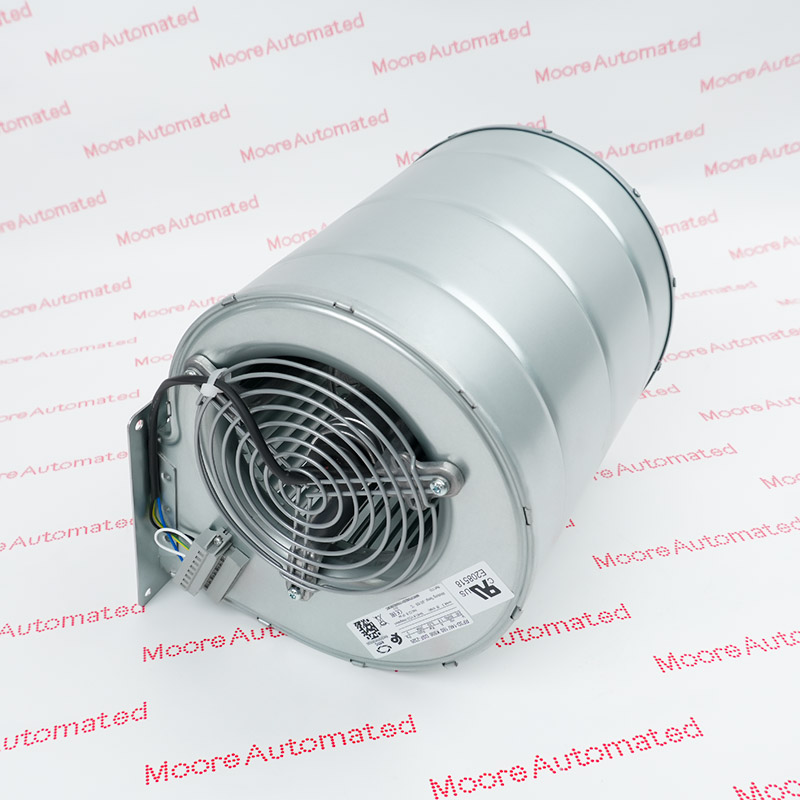

      ABB RF3D-146-180
      ABB RF3D-146-180
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      RF3D-146-180

      Cooling Fan
      In Stock
      Ships by Tuesday, June 16
      Fast Shipping Available

      Product Information:

      This industrial-grade EC centrifugal cooling fan, model RF3D-146/180 K506 DSF-2326, is manufactured by EMC (S&P) for ABB and is specifically designed for use as a high-capacity internal cooling fan in ABB ACS800 and ACS880 heavy-duty inverter modules.

      It features a compact 146mm dual-inlet centrifugal design and a long-life, robust copper/all-metal construction with an IP44 protection rating, effectively preventing overheating in harsh inverter control cabinet environments. It is an ideal replacement for the ebm-papst D2E146-AP47-C3 fan in the same series.

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for RF3D-146-180

      • Manufacturer:
        ABB
      • Product Category:
        DCS System
      • Estimated shipping dimensions:
        20.5 x 16.8 x 19 cm
      • Weight:
        5.9 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        Sweden
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Type:
        Cooling Fan
      • Category Series:
        Drives ACS800
      • Voltage Supply:
        230 VAC
      • Frequency response:
        50/60 Hz
      • Current Capacity:
        1,4 A
      • Power Consumption:
        230 W
      • Maximum RPM:
        2694 to 2894 RPM
      • Operating temperature:
        -20 °C to 50 °C
      • Stock:
        12
      Ask for Quote

      Alternative Names

      RF3D146180 RF3D 146 180 RF3D-I46-I80 RF3D-146-18O D3G146-AB06-10 RF3D-146-180 K506 DSF-2326 K506 DSF-2326 3AXD50000042302 RF3D-146/180 68973708 RF3D-146/180 68973708

      Information

      Overview Manuals Product families Critical Circuit Changes

      Features:

      • New Improved Long-Life Fan for Low-Voltage AC Drives
      • It uses a single-phase 230 VAC power supply and has a dual-frequency rating of 50/60 Hz
      • The rated power is 230 watts (0.23 kilowatts), and the rated operating current is 1.4 amps
      A fan in a low voltage AC drive ensures cooling in a drive unit. Optimum cooling means that operational capability and reliability can be guaranteed. The cooling ability of a fan decreases when compo-nents like bearings begin to wear out.

      The improved fans are specified with a type code and long-life marking. The fans are specified for an operational point with the L10 bearing life principle and an ambient temperature of 35 °C.

      The RF3D-146-180 ABB FAN may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      ABB RF3D-146-180 FAN MANUAL(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The improved fans can be implemented in the following product families:
      • ACSM1
      • ACS580
      • ACS800
      • ACQ810
      • ACS850
      • ACS880
      • ACS600
      If you are maintaining or replacing an older generation industrial drive cabinet, the following structural changes must be considered:

      Older Configuration (Prior August 2015): This drive cabinet originally used a conventional AC motor fan (ebm-papst D2E146AP47C3), which relied on a separate external running capacitor (ABB part number: 42004307) to start the motor windings.
      Newer Configuration (After August 2015): The RF3D-146/180 is an electronically commutated (EC) brushless fan with built-in drive electronics. It does not have a running capacitor. When installing this new version to replace the older equipment, the old external starting capacitor circuit must be completely removed or bypassed.

      Manuals

      Technical notes

      The EMC (S&P) RF3D-146/180 K506 DSF-2326 is a high-performance industrial centrifugal cooling fan (ABB part number: 68973708) designed for ABB inverters (such as the ACS800 series). Operating at 230 VAC (50/60 Hz), this fan has a rated power of 0.23 kW (1.4 A) and a rated speed of 2694 RPM, providing continuous, high-volume, and stable cooling.
