Features:
- Kinetix SERCOS Interface Motion Modules is 3 Axis SERCOS Interface Servo Module for the documented 1756-M03SE execution.
- Equipment Function is 3 Axis SERCOS Servo Modul and must match the supplied unit.
- Connector allocation, paired assemblies and configuration data must be preserved during replacement.

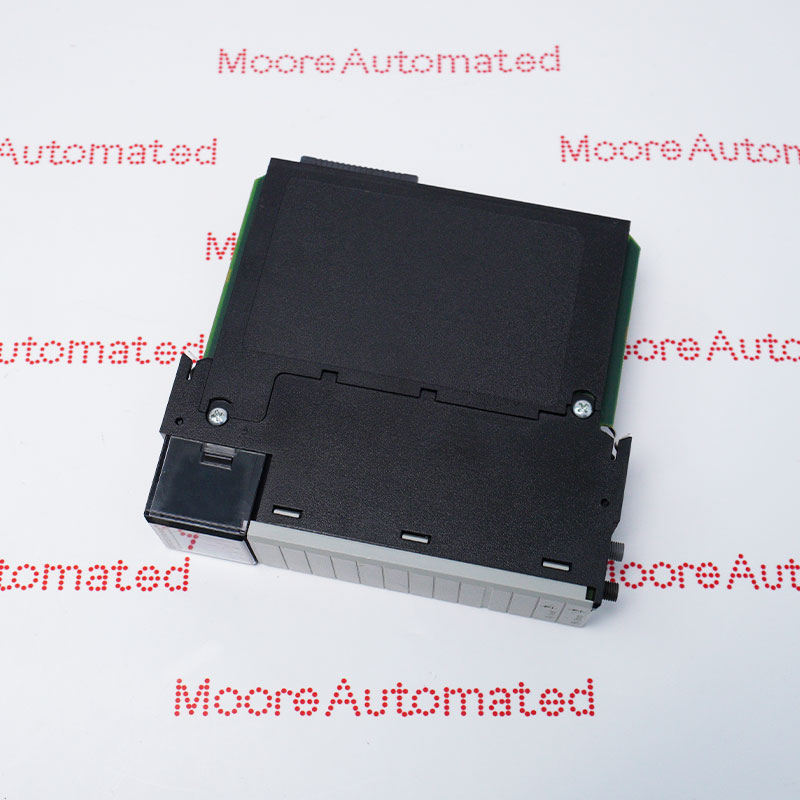

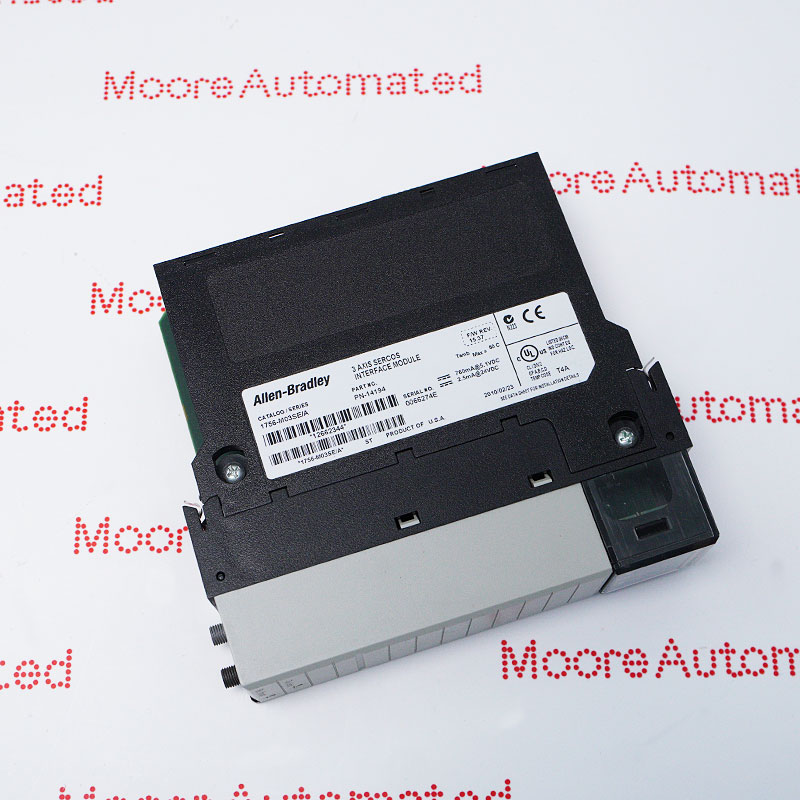

1756-M03SE is an Allen-Bradley 3 Axis SERCOS Servo Modul selected by its complete catalog identity and documented equipment role. Correct selection depends on the installed hardware execution, connected assemblies and approved ControlLogix configuration rather than appearance alone.

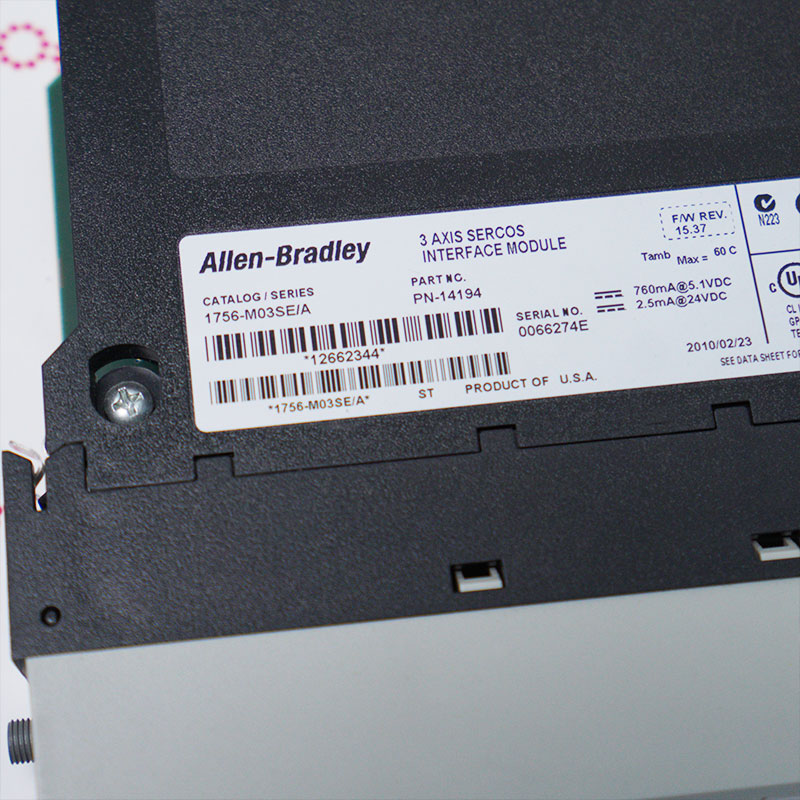

Before installing 1756-M03SE, record the original nameplate, slot or mounting position, terminal or connector allocation, paired assemblies and relevant settings. Compare the supplied unit with approved documentation, preserve required configuration data and complete controlled diagnostics and functional checks before return to service.
The 1756-M03SE Allen-Bradley 3 Axis SERCOS Servo Modul is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
Allen-Bradley 1756-M03SE documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
1756-M03SE performs the documented 3 axis sercos servo modul role within the ControlLogix platform. Kinetix SERCOS Interface Motion Modules is 3 Axis SERCOS Interface Servo Module; Equipment Function is 3 Axis SERCOS Servo Modul; Hardware Format is Industrial control hardware assembly
Replacement of 1756-M03SE requires a verified match to the receiving ControlLogix hardware, controller revision, connected assemblies and configuration record. Preserve the installed slot, connectors and required settings before removal, then verify every affected function after installation.
After installing 1756-M03SE, confirm power, communication, I/O or motion interfaces as applicable; review controller diagnostics; restore approved configuration data; and complete the documented functional test before production release.
