      Allen-Bradley 1756-DHRIO
      Allen-Bradley 1756-DHRIO

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Monday, September 21
      Fast Shipping Available

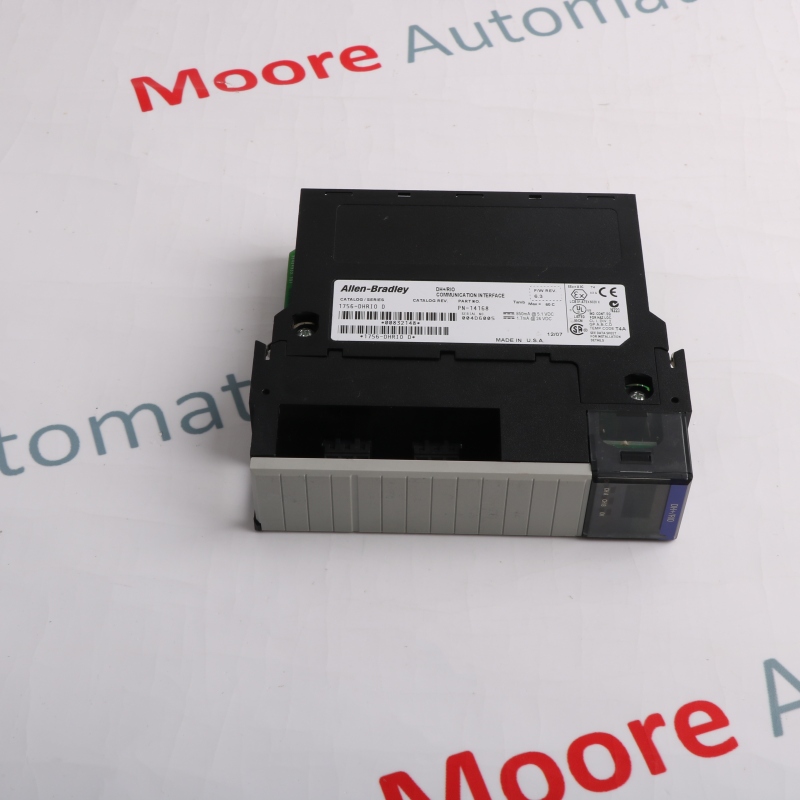

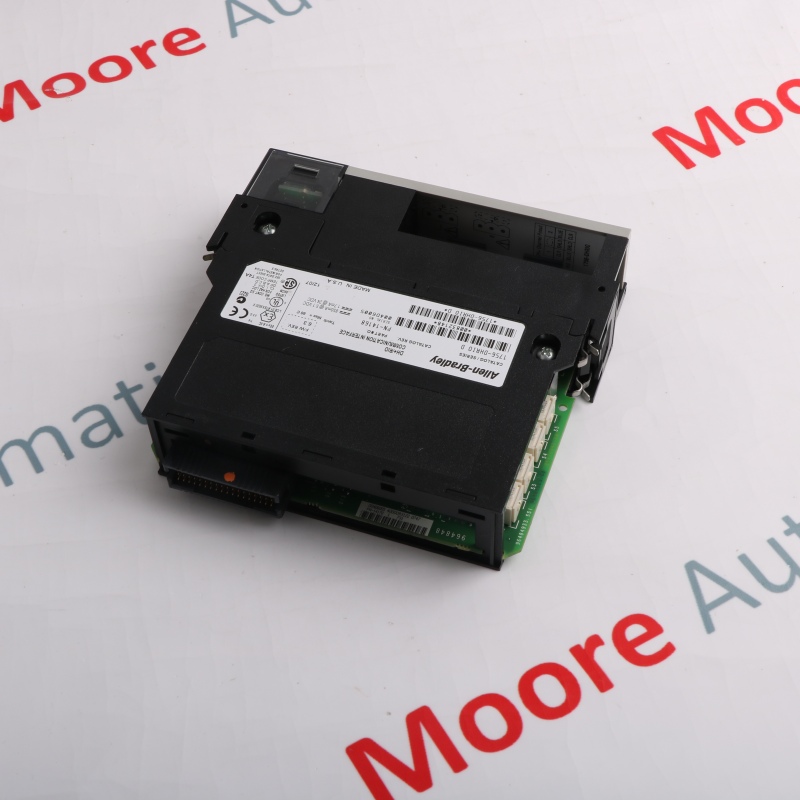

      ControlLogix DH+/Remote I/O Communication Module

      1756-DHRIO

      Spare Part Number

      PN1756-DHRIO

      Product Information:

      Allen-Bradley 1756-DHRIO is a one-slot ControlLogix communication module for Data Highway Plus and Remote I/O networks.

      Its two independently selectable channels support 57.6, 115.2 or 230.4 Kbit/s operation, up to 32 connections and Remote I/O scanner functions.

      The module draws 850 mA at 5.1 V DC, dissipates 4.5 W and requires compatible ControlLogix chassis, power supply, cabling and network configuration.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs

      Technical specifications for

      1756-DHRIO

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC and Machine Control
      • Spare Part Number:
        1756-DHRIO
      • Estimated shipping dimensions:
        17.5 x 14.5 x 3.6 cm
      • Weight:
        0.68 kg
      • Tariff Code:
        851762
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Network types:
        Data Highway Plus; Remote I/O
      • Communication channels:
        2 independently selectable
      • Communication rates:
        57.6; 115.2; 230.4 Kbit/s
      • Maximum connections:
        32
      • Remote I/O racks:
        32 logical rack connections per channel
      • Block transfers:
        16 connections per channel
      • Current draw at 5.1 V DC:
        850 mA
      • Current draw at 24 V DC:
        1.7 mA
      • Power dissipation:
        4.5 W
      • Slot width:
        1
      • Operating temperature:
        0 to 60 °C
      • Storage temperature:
        -40 to +85 °C
      • Stock Availability:
        61
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Revisions

      Revision Part #

      Also known as

      1756-DHRIO/A
      1756-DHRIO Ser A, Series A, Rev A
      Get Parts Quote
      1756-DHRIO/B
      1756-DHRIO Ser B, Series B, Rev B
      Get Parts Quote
      1756-DHRIO/C
      1756-DHRIO Ser C, Series C, Rev C
      Get Parts Quote
      1756-DHRIO/D
      1756-DHRIO Ser D, Series D, Rev D
      Get Parts Quote
      1756-DHRIO/E
      1756-DHRIO Ser E, Series E, Rev E
      Get Parts Quote

      Alternative Names

      1756-DHRIO 1756-DHRIOK 1756-DHRIOXT

      Information

      Overview Manuals Network Roles Channel Configuration Migration Guidance

      Features:

      • Two channels individually selectable for DH+ or Remote I/O
      • 57.6, 115.2 or 230.4 Kbps communication rate
      • Remote I/O scanner with 32 logical rack connections per channel
      • Single-slot ControlLogix chassis module

      The Allen-Bradley 1756-DHRIO bridges legacy Data Highway Plus and Remote I/O networks into a ControlLogix chassis. DH+ channels support controller and programming messages, while Remote I/O mode allows the module to scan digital and block-transfer data from compatible remote devices.

      Both communication ports are configured individually for the required network role and rate. A correct replacement must preserve channel mode, rack addressing, baud rate, cabling and message paths as well as the ControlLogix chassis configuration.

      The Allen-Bradley 1756-DHRIO is discontinued by Rockwell Automation; EtherNet/IP modernization using a module such as 1756-EN2TR requires an engineered migration plan.
      Allen-Bradley 1756-DHRIO ControlLogix DH+ and Remote I/O Module Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

      Network Roles:

      • Data Highway Plus messaging
      • Remote I/O scanner operation
      • Two independently configurable channels
      • Legacy controller and operator-interface integration

      Use the module when an installed ControlLogix system must maintain communications with supported DH+ or Remote I/O equipment.

      Channel Configuration:

      • 57.6 Kbps
      • 115.2 Kbps
      • 230.4 Kbps
      • Belden 9463 twinaxial media

      Channel A and Channel B settings must match the physical network, node addressing and existing controller message paths.

      Migration Guidance:

      • Document both channel configurations
      • Archive controller and message logic
      • Identify all remote racks and block transfers
      • Validate replacement network architecture

      Because modern EtherNet/IP modules do not directly reproduce DH+ or Remote I/O functions, convert the network only through a controlled application-specific migration.

      Technical notes

      Allen-Bradley 1756-DHRIO is a ControlLogix DH+/Remote I/O Communication Module in the ControlLogix 1756 family. Its two independently selectable channels support 57.6, 115.2 or 230.4 Kbit/s operation, up to 32 connections and Remote I/O scanner functions. Confirm the complete catalog number, compatible system hardware, wiring, environmental limits and lifecycle status against the manufacturer documentation before installation.
      PRODUCT & ORDER FAQS

      Questions buyers ask about 1756-DHRIO

      • How can I identify 1756-DHRIO?

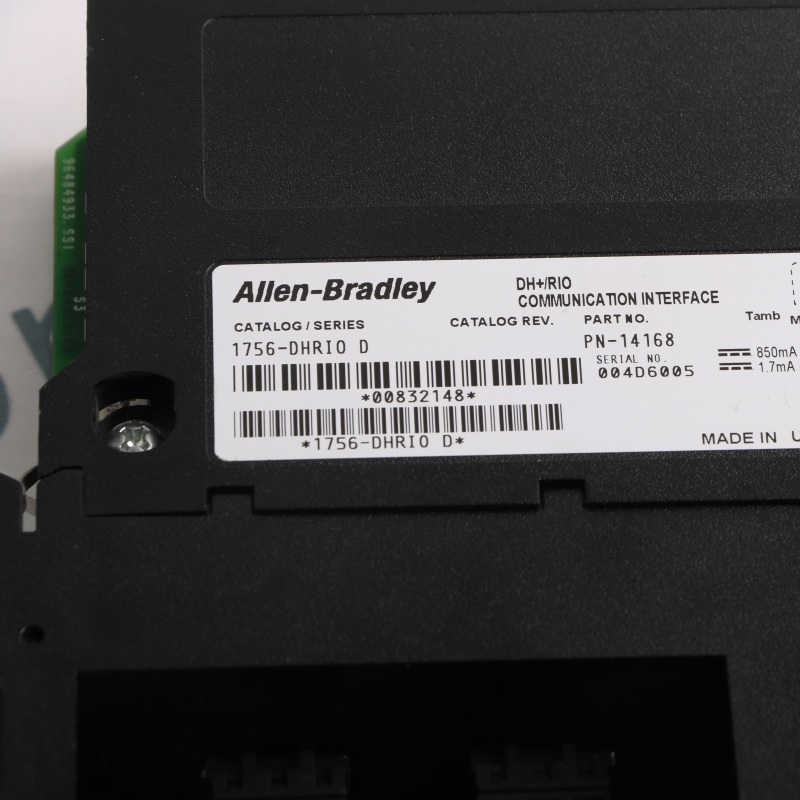

        Verify the complete catalog number 1756-DHRIO on the product label and compare the documented two selectable DH+ or Remote I/O channels before installation.

      • What is 1756-DHRIO compatible with?

        It installs in a ControlLogix 1756 chassis and each of its two ports can be selected for Data Highway Plus or Remote I/O operation.

      • Where is 1756-DHRIO typically used?

        It bridges ControlLogix systems to legacy DH+ messaging and Remote I/O scanner networks.

      • What should be checked before installation?

        Confirm the mounting, wiring, supply, environmental limits and system firmware stated in the official documentation for 1756-DHRIO.

      • Is 1756-DHRIO available from stock?

        Stock is confirmed at the time of quotation. Moore Automated can check the exact 1756-DHRIO revision and configuration before shipment.

      • What warranty is provided?

        Warranty terms are confirmed with the quotation and apply to the supplied 1756-DHRIO hardware after inspection and functional verification.

      • How is 1756-DHRIO shipped?

        The unit is securely packed and dispatched from Xiamen, Fujian, China, with fast shipment available and an estimated processing time of 3 days.
      All FAQ
      MORE PARTS IN THE SAME PROJECT?

      Search another part number

      Use the exact manufacturer number where possible.
      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          WHY BUYERS WORK WITH MOORE AUTOMATED

          Clear checks before you commit

          Product-specific verification and written commercial details help purchasing and maintenance teams reduce mismatch risk.

          • Pre-shipment inspection

            Products are inspected before dispatch to verify model, condition and applicable specifications.

          • Documentation available

            Product photos, packaging photos, certificates and datasheets can be provided when available.

          • Clear commercial terms

            Condition, warranty, lead time, included items and shipping terms are stated clearly in writing.

          • 20+ years of experience

            Over 20 years of experience in industrial automation and hard-to-source legacy parts.

          • Product Lifecycle Stage

            Obsolete/Discontinued by OEM

            Rockwell Automation identifies this module as discontinued; migration uses a supported ControlLogix EtherNet/IP communication module such as 1756-EN2TR together with an engineered legacy-network conversion strategy rather than a drop-in replacement.

            Moore Automated supplies high-quality Allen-Bradley 1756-DHRIO replacement modules and spare parts for verified industrial maintenance requirements.

            Our controlled sourcing and replacement solutions help users restore compatible hardware efficiently and reduce unplanned downtime.
