Features:
- Stores one MicroLogix 1200 user program and its associated data.
- Supports program comparison, data-file download protection and permanent write protection.
- May be inserted or removed with power applied only when no memory transaction is active.

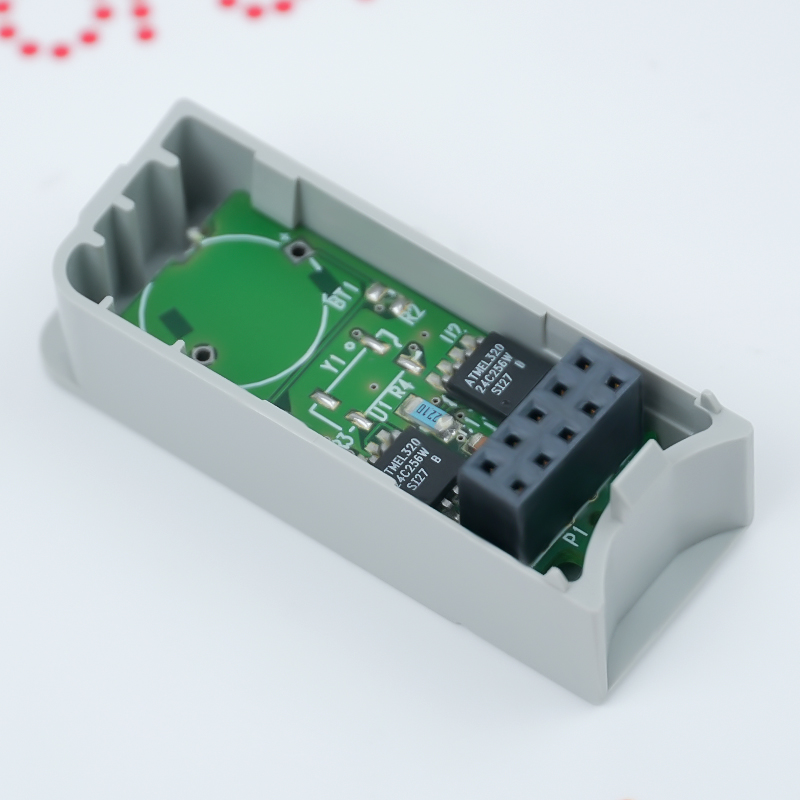

The 1762-MM1 stores one MicroLogix 1200 user program and its associated data in a removable module. This provides a controlled local copy for backup, transfer or recovery and can reduce dependence on a programming computer when a compatible controller must be restored in the field. Program comparison and data-file download protection can also be used to control how the stored application is applied.
The module includes a write-once/read-many protection option that becomes permanent after it is enabled, so protection settings must be documented before use. It may be inserted or removed with power applied only when no memory transaction is active. After insertion, the controller must be power-cycled or placed in a non-executing mode so the memory module can be recognized correctly.

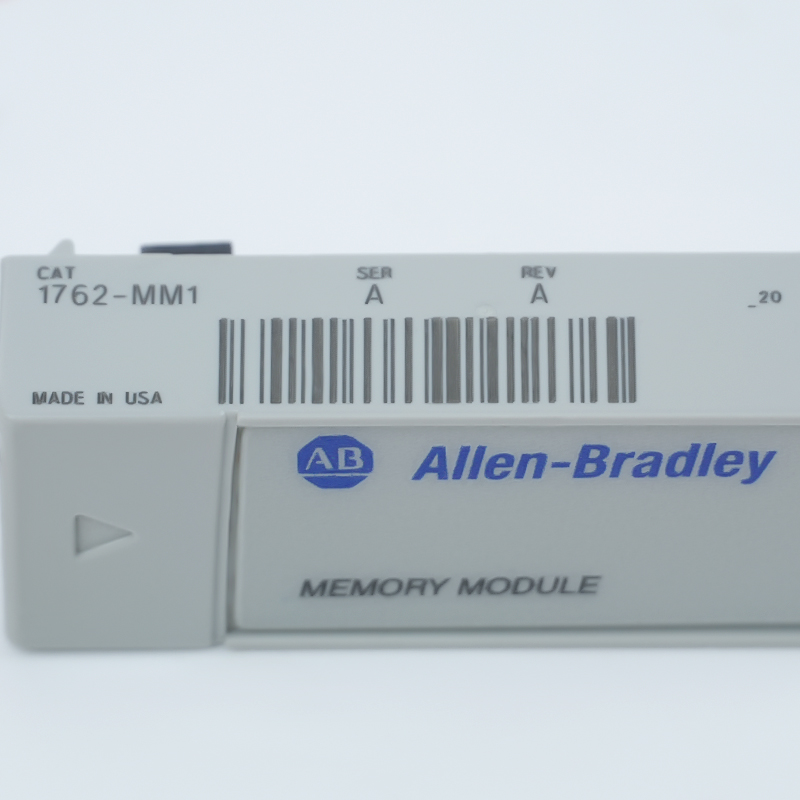

The 1762-MM1 Allen-Bradley MicroLogix 1200 Memory Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1762-MM1 documentation and reference links.
Important Notice: The linked PDF is an official manufacturer document for this model or its documented exact product family. Confirm the complete order code, revision, connected hardware and installation requirements before replacement. Accessories, software and certificates are included only when stated in the written quotation.
Verify that the stored program and data belong to the target MicroLogix 1200 controller before initiating a transfer.
Document program compare, data-file download protection and the irreversible write-once/read-many setting.
Avoid insertion or removal during a data transaction; power-cycle or enter a non-executing mode for recognition.
