      Allen-Bradley 1771-OBD
      Allen-Bradley 1771-OBD
      Allen-Bradley 1771-OBD
      Allen-Bradley 1771-OBD
      Allen-Bradley 1771-OBD
      Allen-Bradley 1771-OBD

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      Digital Output Module

      1771-OBD

      Spare Part Number

      PN1771-0BD, 1771-OBD/B, 1771-OBD/C

      Product Information:

      Output module from the 1771

      product bulletin. It has Sixteen

      (16) non-isolated output channels

      that provides 10-60VDC output

      voltage range with nominal

      value of 48VDC.

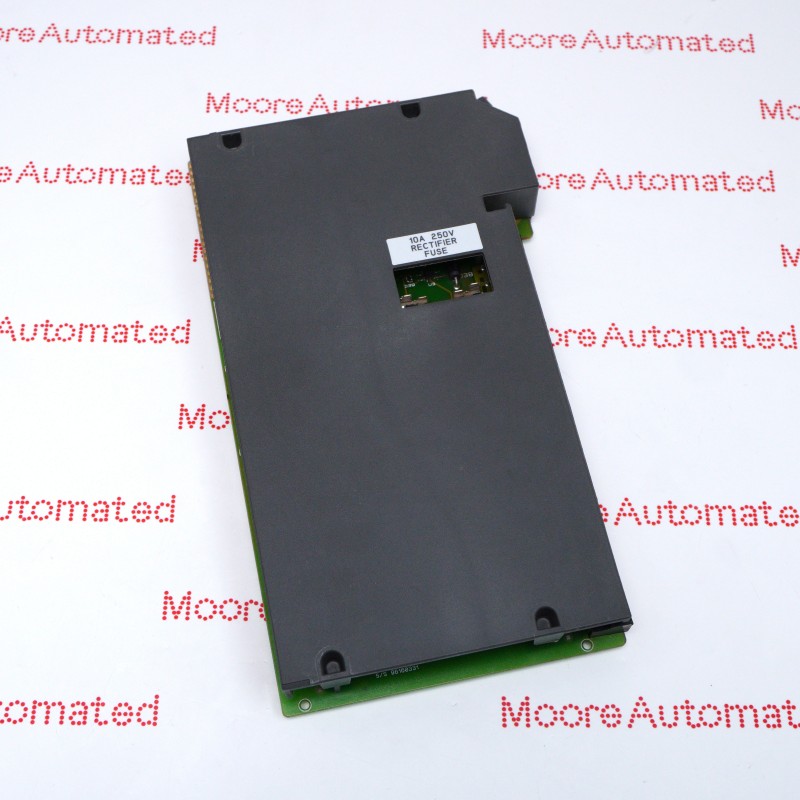

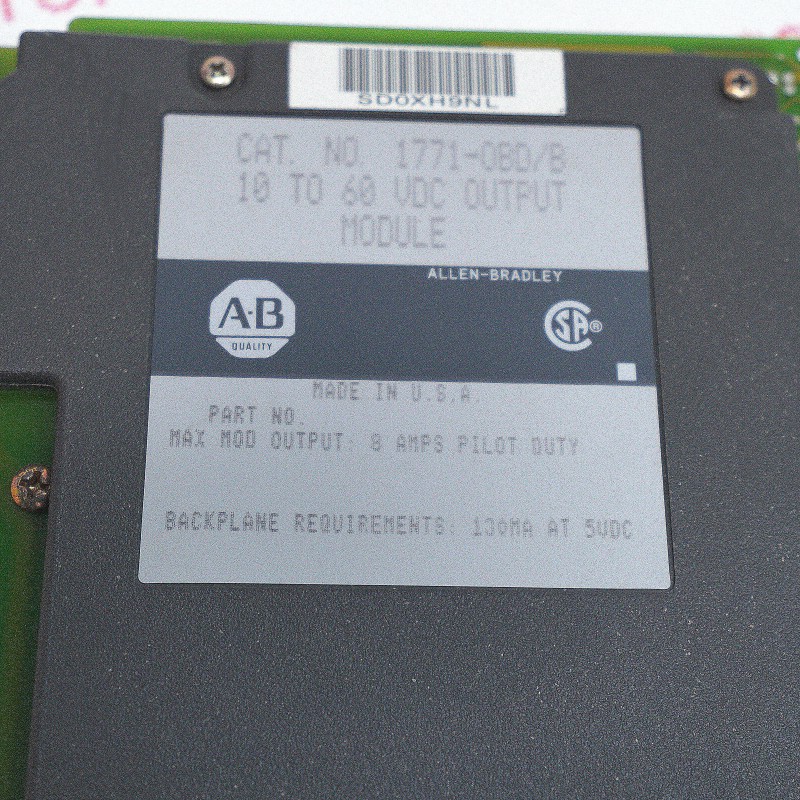

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      1771-OBD

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC and Machine Control
      • Spare Part Number:
        1771-0BD, 1771-OBD/B, 1771-OBD/C
      • Estimated shipping dimensions:
        2.8x15.2x25.8cm
      • Weight:
        0.62 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • No. of outputs:
        Sixteen (16) outputs
      • Operating Voltage Range:
        10-60VDC
      • Nominal output voltage:
        48 VDC
      • Minimum load current:
        2.5 mA
      • Power Dissipation:
        15.6 Watts
      • Wiring Arm Screw Torque:
        7-9 inch-pounds
      • Backplane Current:
        400 Miliamps
      • Max Continuous Current Per Module:
        8 Amps
      • Series:
        1771 Series I/O
