Features:
- The complete order code identifies a M10 x 1 unarmored proximity probe with 0 mm unthreaded length and 40 mm overall case length.
- A 1.0 m (3.3 ft) total probe lead terminates in a standard ClickLoc cable without a connector protector for the documented 3300 XL measurement chain.
- Published 7.87 V/mm scale factor, 2 mm linear range and 0-10 kHz response apply to a compatible matched transducer system.

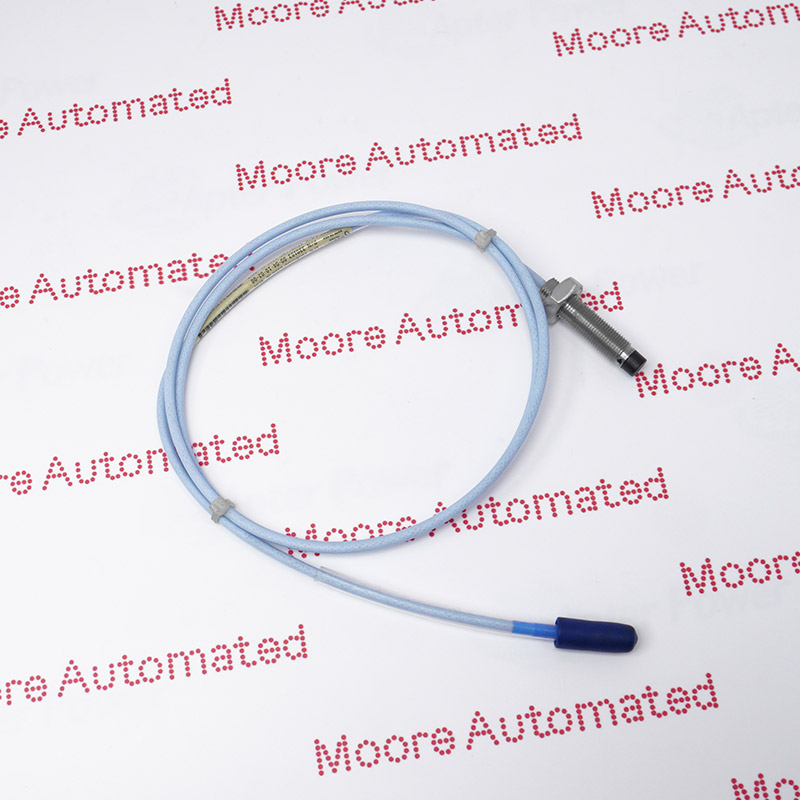

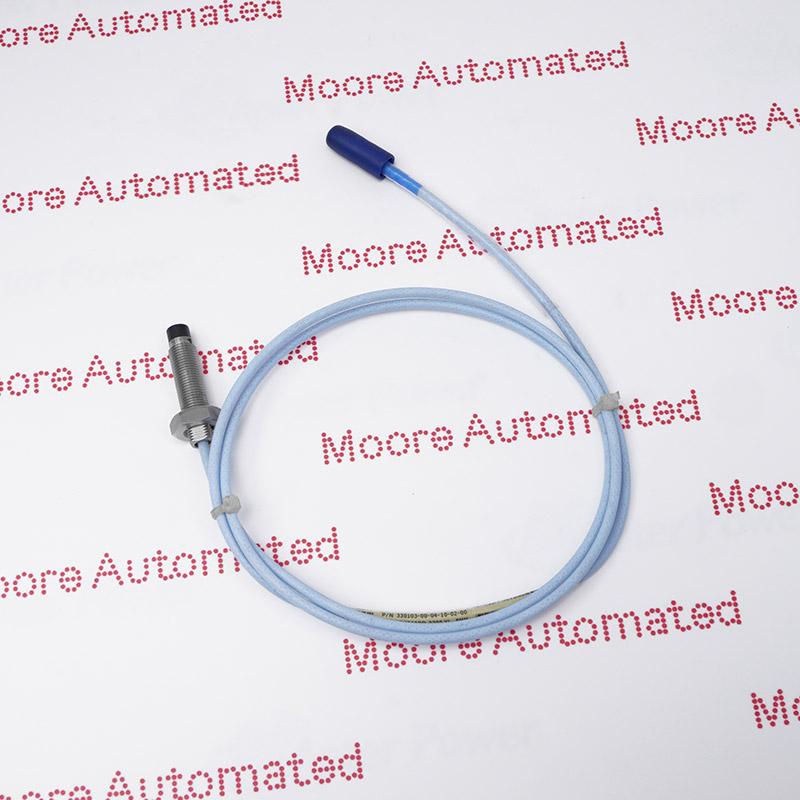

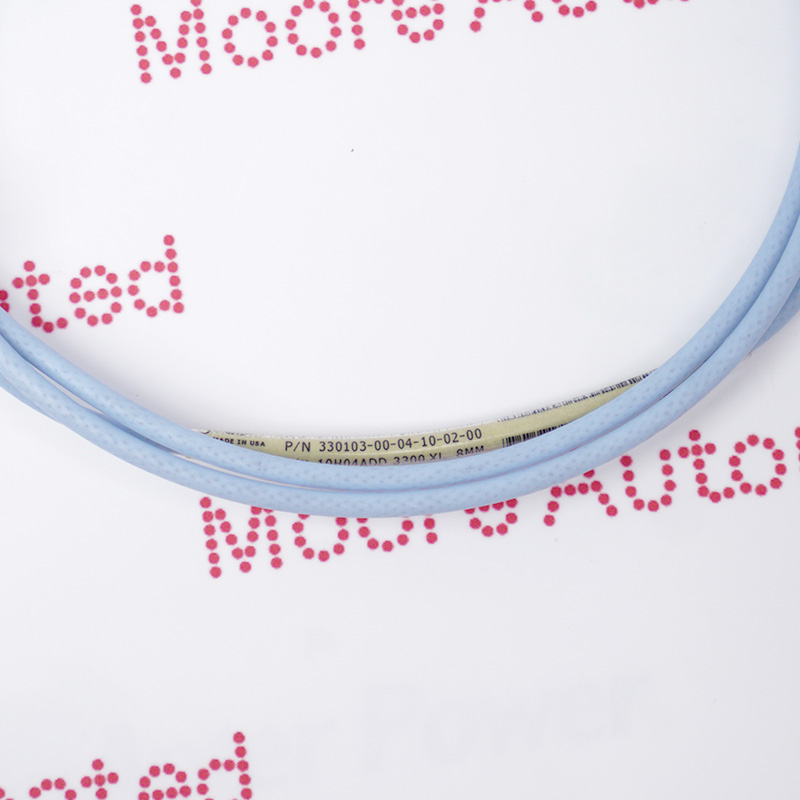

330103-00-04-10-02-00 is a Bently Nevada M10 x 1 unarmored proximity probe in the 3300 XL 8 mm family. The official ordering code specifies 0 mm unthreaded length, 40 mm overall case length, 1.0 m (3.3 ft) total probe length and a standard ClickLoc cable without a connector protector; each field must match the installed mechanical arrangement.
The probe is one element of a matched eddy-current transducer chain. Before replacement, document the gap, target material, mounting depth, cable routing, connector condition, extension-cable arrangement, Proximitor Sensor and monitor settings, then verify bias voltage and machine response after installation.
The manufacturer classifies this legacy product family as obsolete or discontinued. Moore Automated may still supply the exact item subject to stock, condition and complete identity verification.
Bently Nevada 330103-00-04-10-02-00 Proximity Probe Manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 330103 prefix identifies a metric M10 x 1 standard-mount probe without armor. Option 00 specifies no unthreaded section, option 04 specifies a 40 mm case, and option 10 specifies a 1.0 m total probe length.
Option 02 adds a miniature coaxial ClickLoc connector with standard cable and no protector. The probe tip is 8 mm and the cable construction is 75-ohm triaxial.
The probe must be matched to the intended 3300 XL Proximitor Sensor and monitor channel. The published scale factor and linear range apply to a complete compatible system under the official test conditions.
Check the target material, extension-cable arrangement, total system length and channel calibration before approving substitution. Do not mix components only by visual appearance.
Before removal, record the cold gap, mechanical mounting depth, cable routing, connector protection, Proximitor Sensor identity and channel settings. Inspect the target surface and threaded mounting point.
After installation, verify bias voltage, slow-roll runout, vibration response and alarm-channel behavior. Document the final gap and test results before returning the machine to service.
