Principle
Primary Application Areas
Features:
- 3300 NSv Proximity Probes

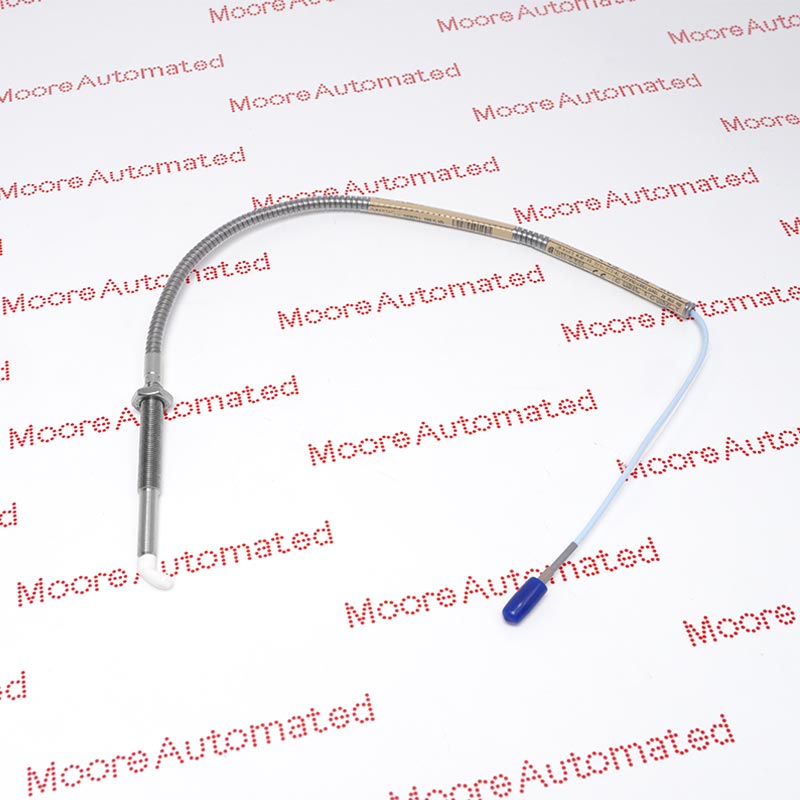

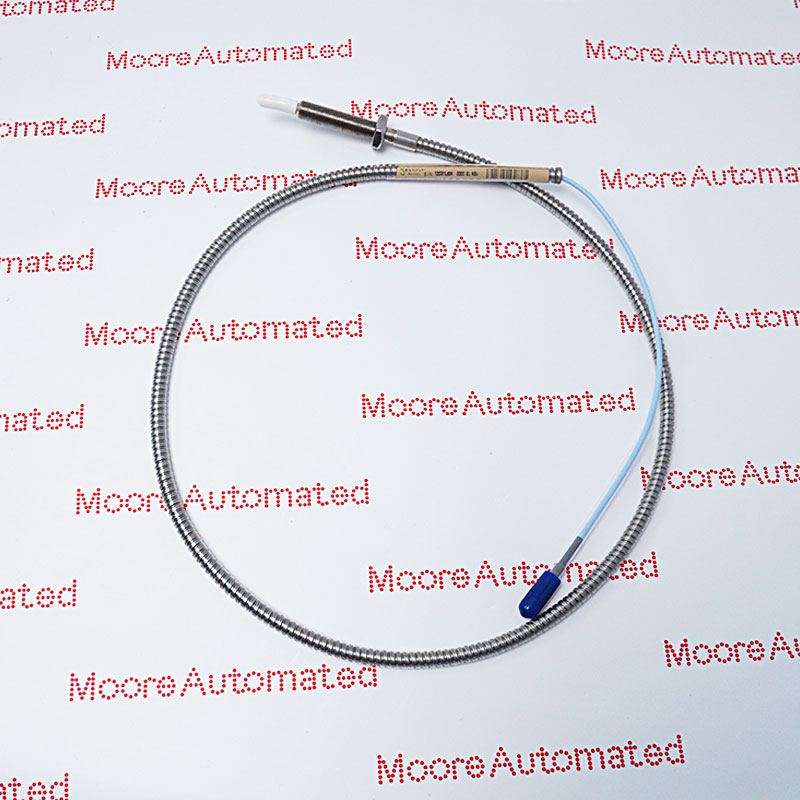

- 330910 3300 NSv Probe, M10X1 thread, with armor
- 3300 XL NSv Proximity Transducer System
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
The 330910-00-16-10-01-00 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330910-00-16-10-01-00 3300 NSv Proximity Probes Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL NSv sensor system has an average scale factor of 7.87 V/mm (200 mV/mil), which is the most commonly used output value for eddy current sensors. Its enhanced side-view and small-target characteristics result in a shorter linear range than the Bently Nevada 3300 XL series 5 mm and 8 mm sensor systems. Its 1.5 mm (60 mil) linear range surpasses that of the 3000 series 190 sensor system.
This probe is specifically designed for monitoring liquid film bearing machinery with extremely small mounting clearances:
Centrifugal air compressors: Due to their extremely narrow internal countersunk space and limited lateral view, this is a primary application area for the NSv system.
Refrigeration and process gas compressors: Used for continuous monitoring of vibration and shaft position in compact compressor designs.
Small shaft measurement: Ideal for measuring radial vibration of shafts with diameters less than 51 mm (2.0 inches).
Small planar targets: Suitable for measuring the axial (thrust) position of targets less than 15 mm (0.6 inches).
Velocity and timing: Commonly used as a keyer reference for phase measurements and tachometer signals in confined spaces.
